UPS+battery backup power kit for electrical equipment and emergency lighting with external battery

The LogicPower UPS B1500 + LiFePO4 1280W battery backup kit was developed and put into operation to provide uninterrupted power to electric gas boilers, video surveillance systems, computer equipment, and other devices operating in 24/7/365 mode. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of 1500/1000 VA/W performs 2 main functions: voltage stabilization (input - 150-282, output - 220/230/240±5%V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system - UPS+battery kit - is equipped with a LiFePO4 battery.

Battery with intelligent BMS board

The programmable control system of the lithium iron phosphate battery ensures maximum battery efficiency and extends its service life.

The SMART BMS Bluetooth board provides the battery with:

• Two-layer hardware and software protection during battery charging and discharging

• Static balance function for efficient automatic battery charging.

• Automatic heating function, which protects the battery when charging in cold weather.

• Effective temperature control of the battery operation is carried out by two external and one internal temperature detector.

LogicPower LiFePO4 batteries have a number of advantages for operation: low self-discharge, fast charging, long cycle life, compact size.

Connection diagram for the UPS + battery backup power kit

220V power grid – uninterruptible power supply with external battery – power consumer.

• UPS to grid connection system – Euro plug
• Battery connection type – terminals
• Power consumer connection type – Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection diagram includes equipment with high inrush currents, the power load reserve factor will increase.

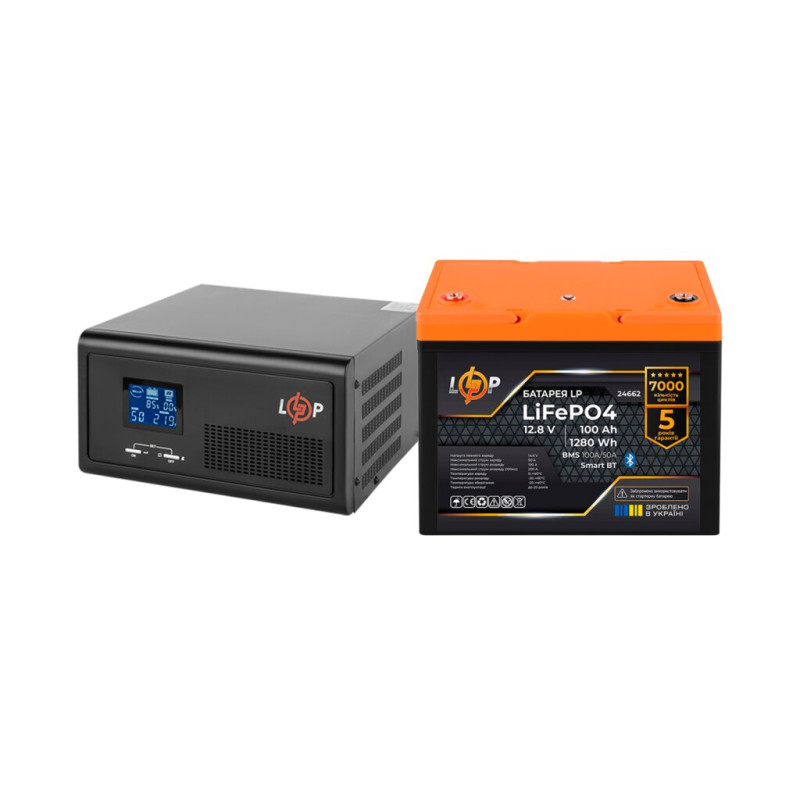

The kit includes:

Pure sine wave UPS 12V LPE-B-PSW-1500VA+ (1000W) 1-40A - 1 pc.

Battery LP LiFePO4 12.8V - 100 Ah (1280Wh) (BMS 100A/50A) plastic Smart BT - 1 pc.
