UPS+Battery Kit for Uninterruptible Power Supply of Electrical Equipment and Emergency Lighting with External Battery
The LogicPower UPS B1500 + 1800W multi-gel battery backup power kit has been developed and put into operation to provide uninterruptible power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating in 24/7/365 mode. The kit can be used as an uninterruptible power supply for a bomb shelter.
The uninterruptible power supply with pure sine wave, with a power of 1500/1050 VA/W, performs 2 main functions: voltage stabilization (input - 140-275, output - 220±10%V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS uninterruptible power supply system is controlled by a microprocessor. The battery provides power in backup mode.
The uninterruptible power supply system for an apartment - the UPS+battery kit - is equipped with a multi-gel AGM battery.
Connection Diagram for UPS + Battery Backup Power Kit
220V power grid – uninterruptible power supply with external battery – power consumer.

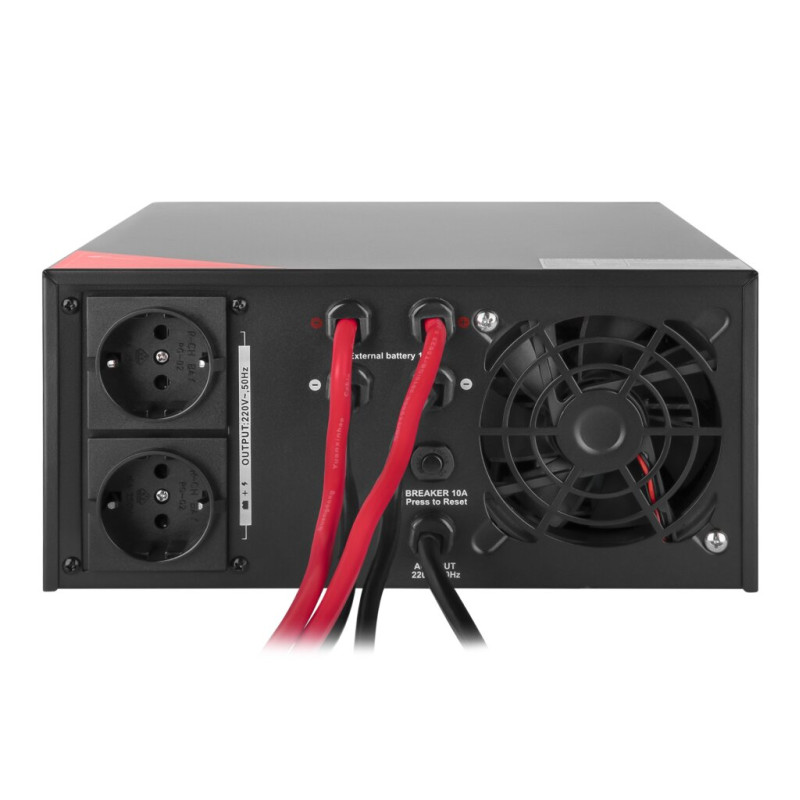

- UPS connection to the grid – standard Euro plug
- Battery connection type – terminals
- Power consumer connection type – standard Euro socket
The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

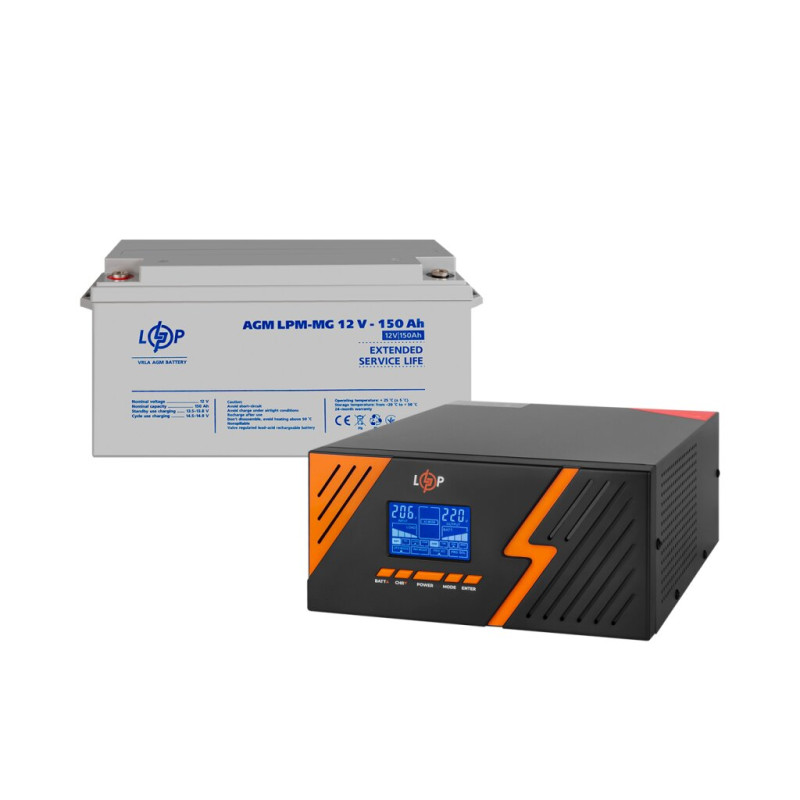

The kit includes:
-

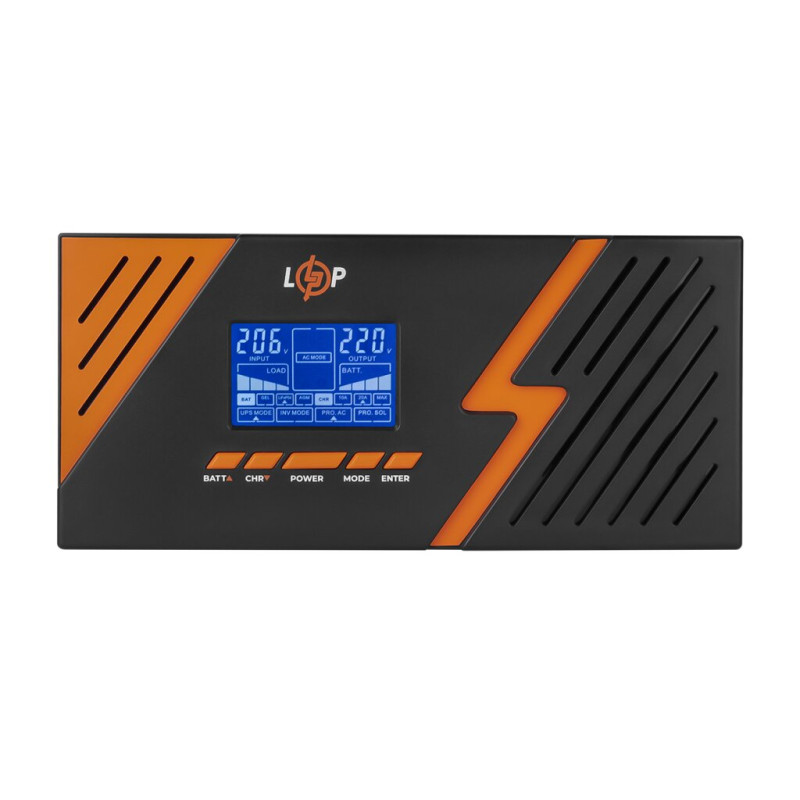

UPS with Pure Sine Wave 12V LPM-PSW-1500VA (1050W) Black
-

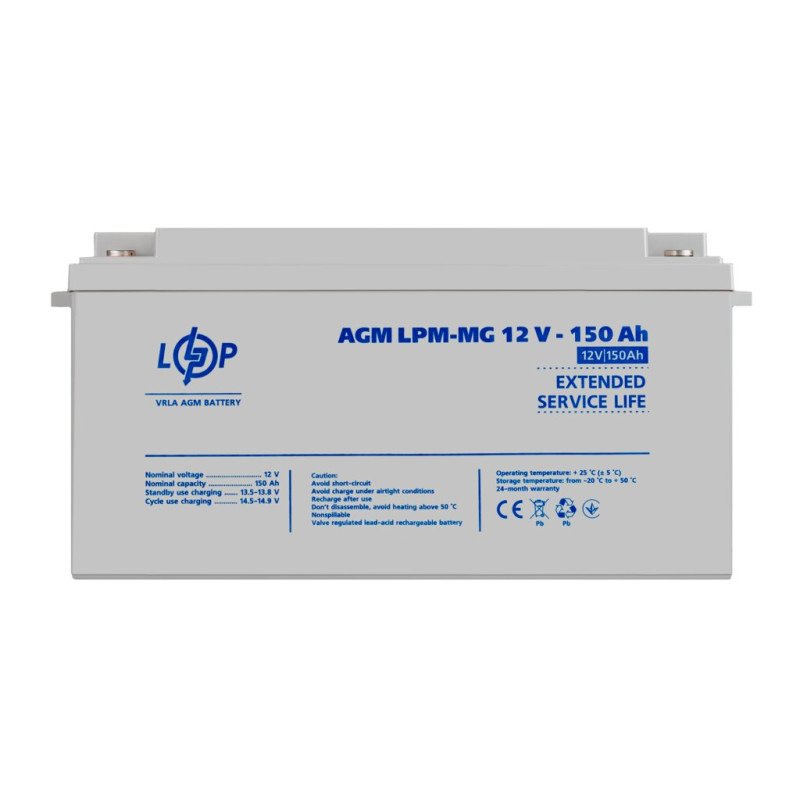

Multi-gel Battery LPM-MG 12V - 150 Ah
