UPS+Battery backup power kit for electrical equipment and emergency lighting with external battery
The LogicPower UPS B1500 + 1200W multi-gel battery backup power kit is designed and put into operation to provide uninterrupted power to electric gas boilers, video surveillance systems, computer equipment, and other devices operating in 24/7/365 mode. The kit can be used as an uninterruptible power supply for a bomb shelter.
The uninterruptible power supply with pure sine wave with a power of 1500/1050 VA/W performs 2 main functions: voltage stabilization (input - 140-275, output - 220±10%V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS system is controlled by a microprocessor. The battery provides power in backup mode.
The uninterruptible power supply system for an apartment - UPS+battery kit is equipped with a multi-gel AGM battery.
Connection diagram for the UPS + Battery backup power kit
220V power grid – uninterruptible power supply with external battery – power consumer.

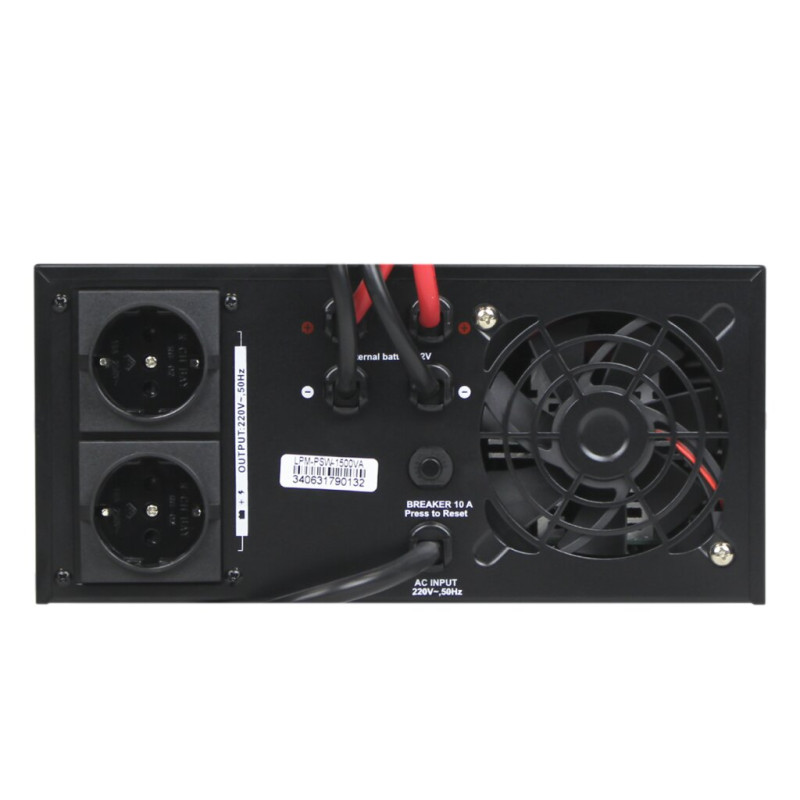

- UPS connection to the grid – standard Euro plug

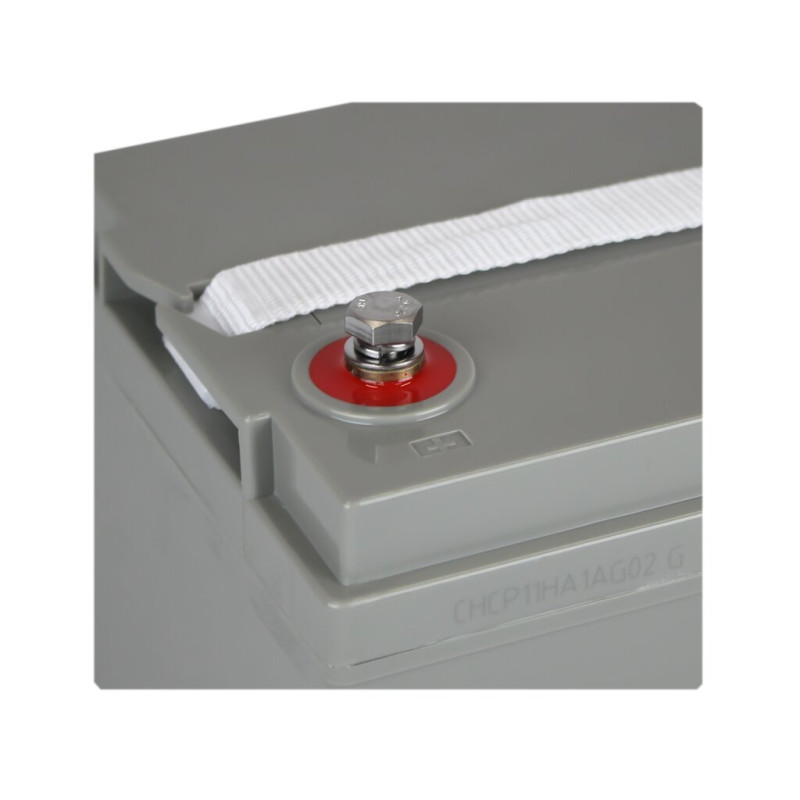

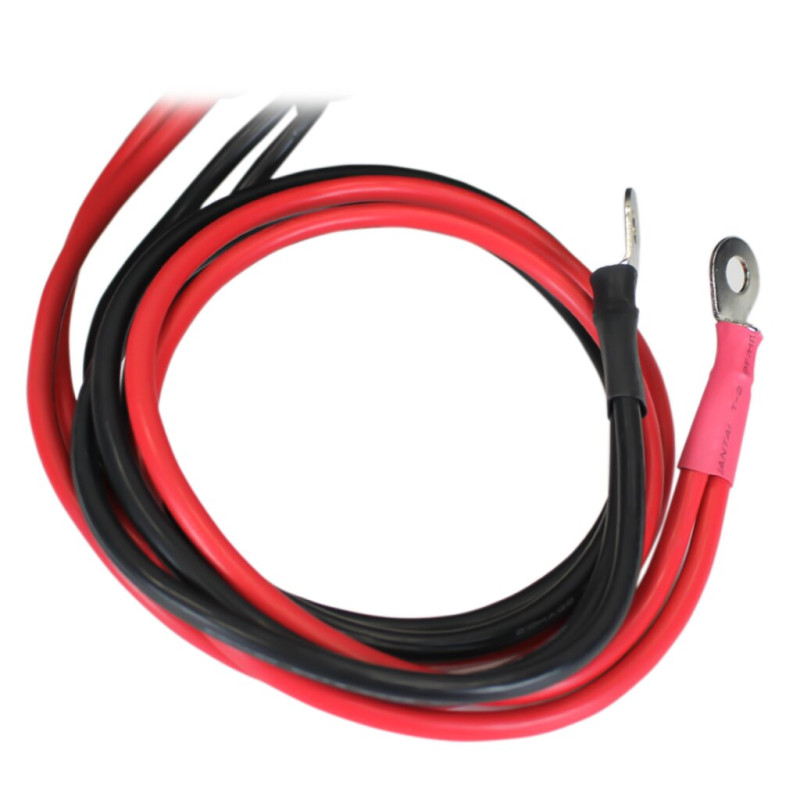

- Battery connection type – terminals
- Power consumer connection type – standard Euro socket
The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

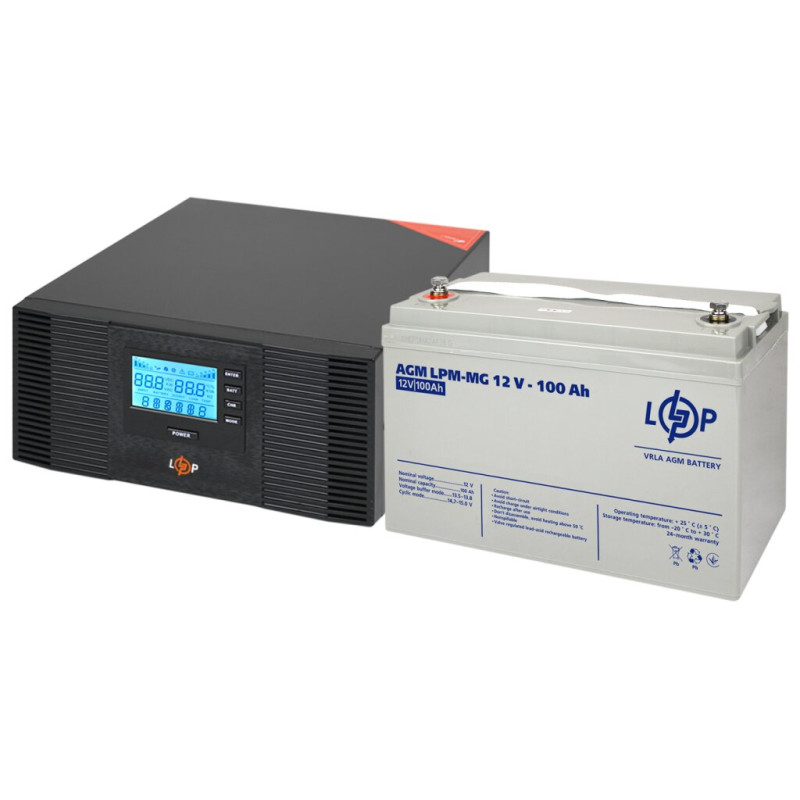

The kit includes:
-

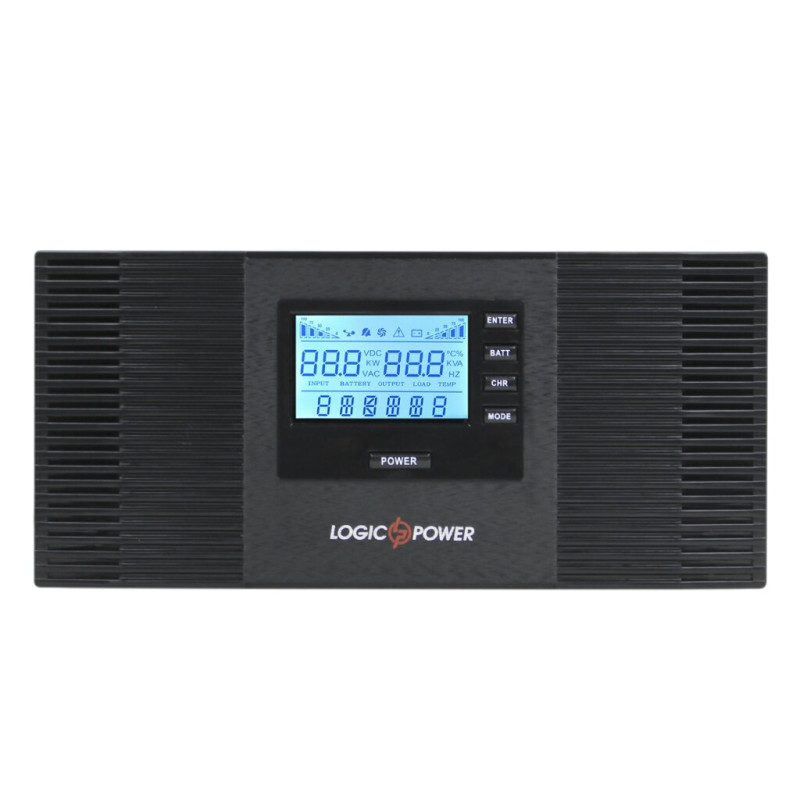

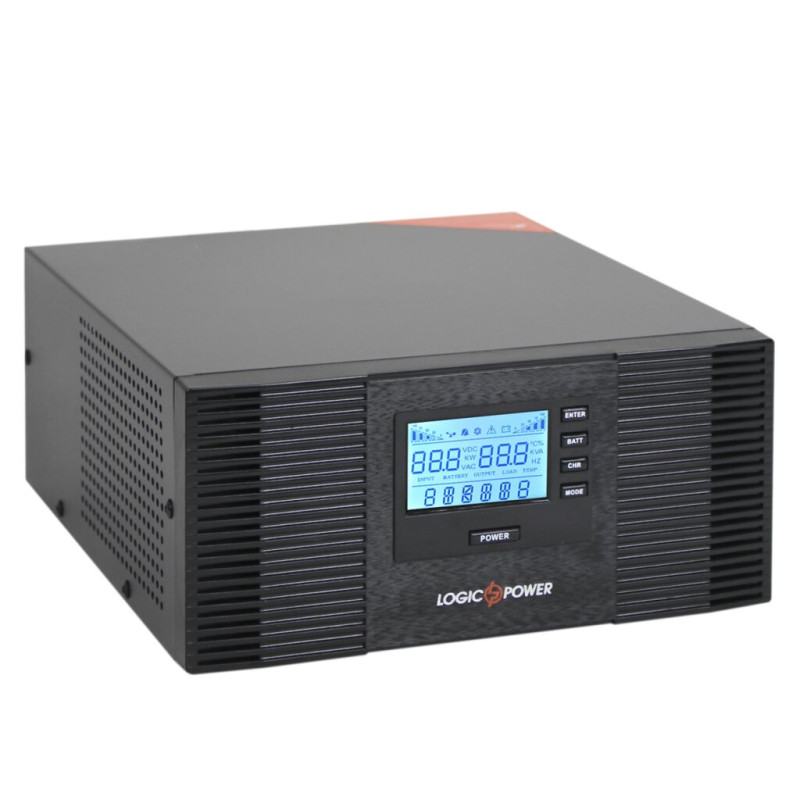

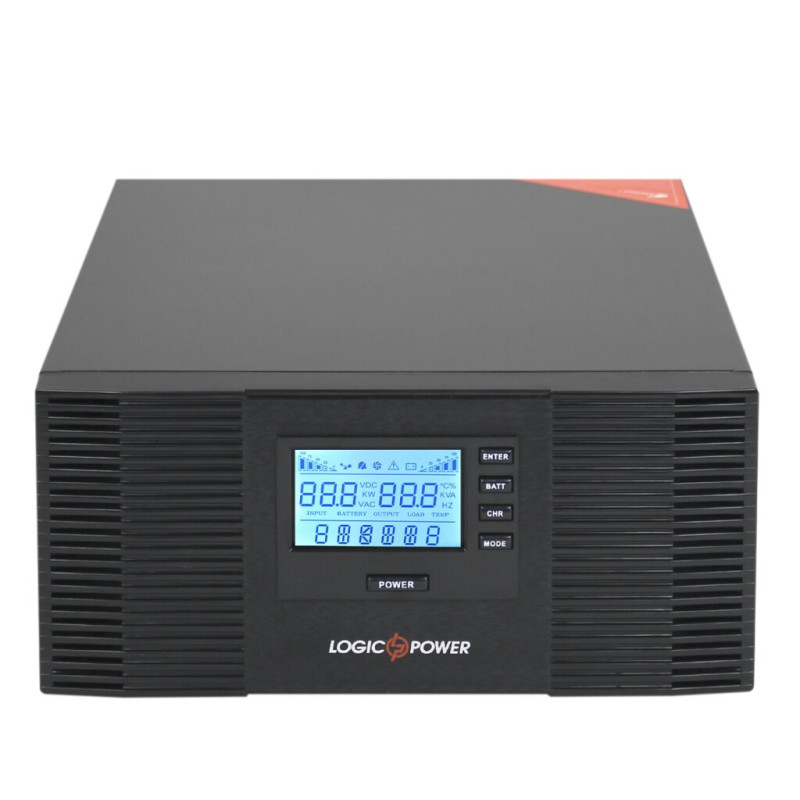

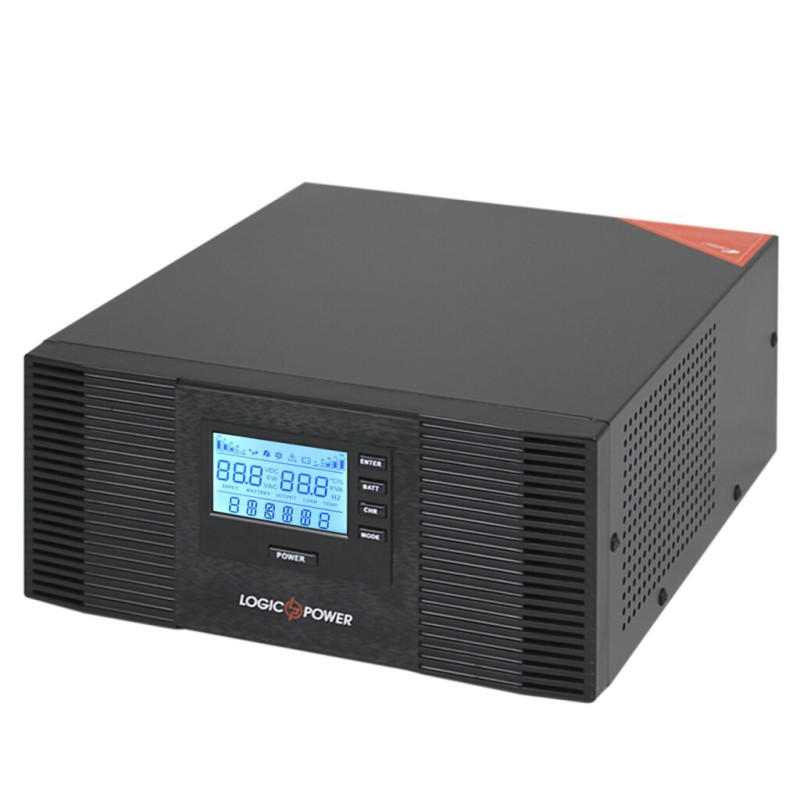

Pure sine wave UPS 12V LPM-PSW-1500VA (1050W)
-

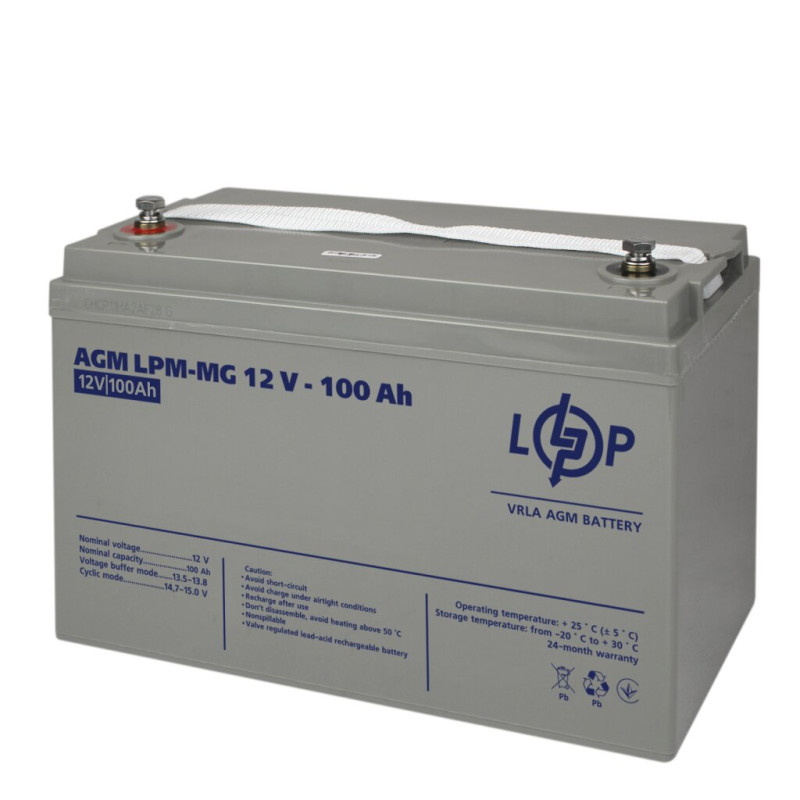

Multi-gel battery LPM-MG 12V - 100 Ah
