UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

The LogicPower backup power kit has been developed and put into operation to provide uninterrupted power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating in 24/7/365 mode. The kit can be used as an uninterruptible power supply for a bomb shelter.

The uninterruptible power supply with pure sine wave, with a power of 3600/2500 VA/W, performs 2 main functions: voltage stabilization (input - 150V -282V at a set output voltage of 220V, 156V -294V at a set output voltage of 230V, 163V -307V at a set output voltage of 240V; output - 220/230/240±5%V) and conversion of DC current from the battery to an AC voltage source of 230V. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for UPS + Battery Backup Power Kit

230V power grid – uninterruptible power supply with external battery – power consumer.

• UPS connection to the grid – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase. Before buying a UPS, be sure to consult with specialists.

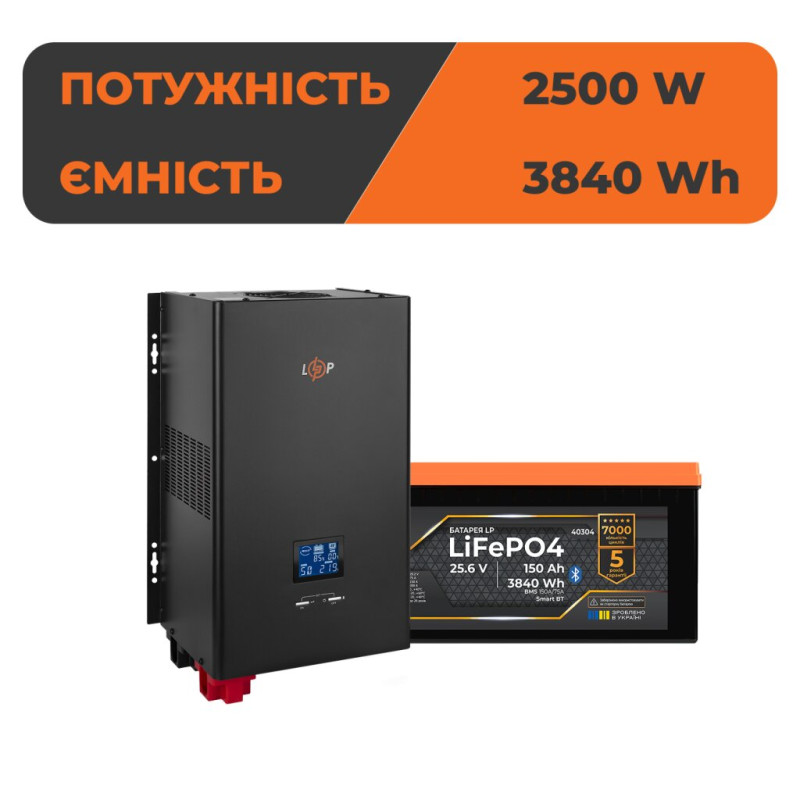

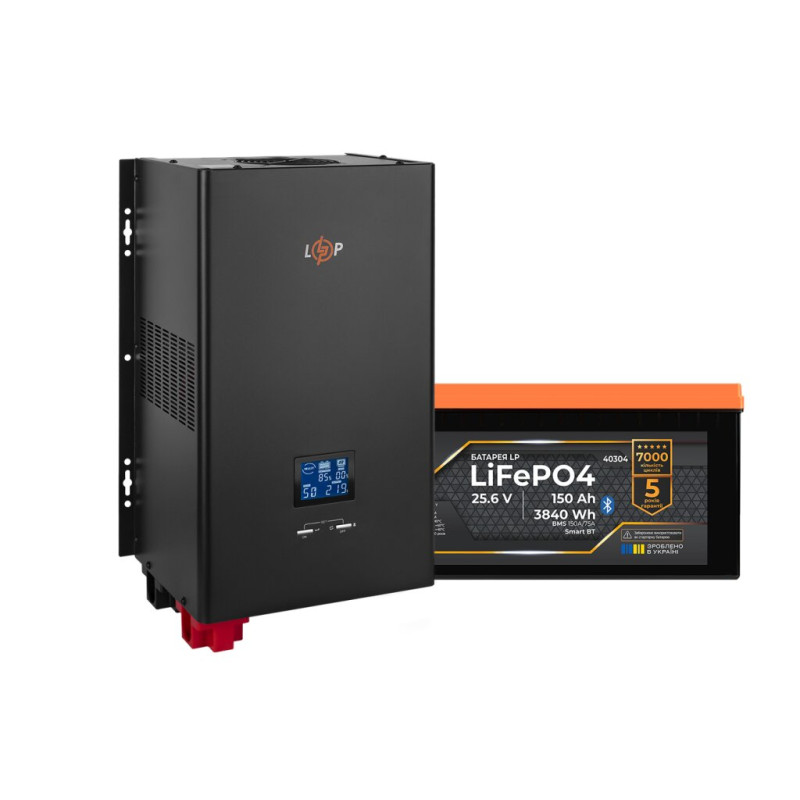

The kit includes:

• UPS with Pure Sine Wave 24V LPE-W-PSW-3600VA+ (2500W) 1-40A

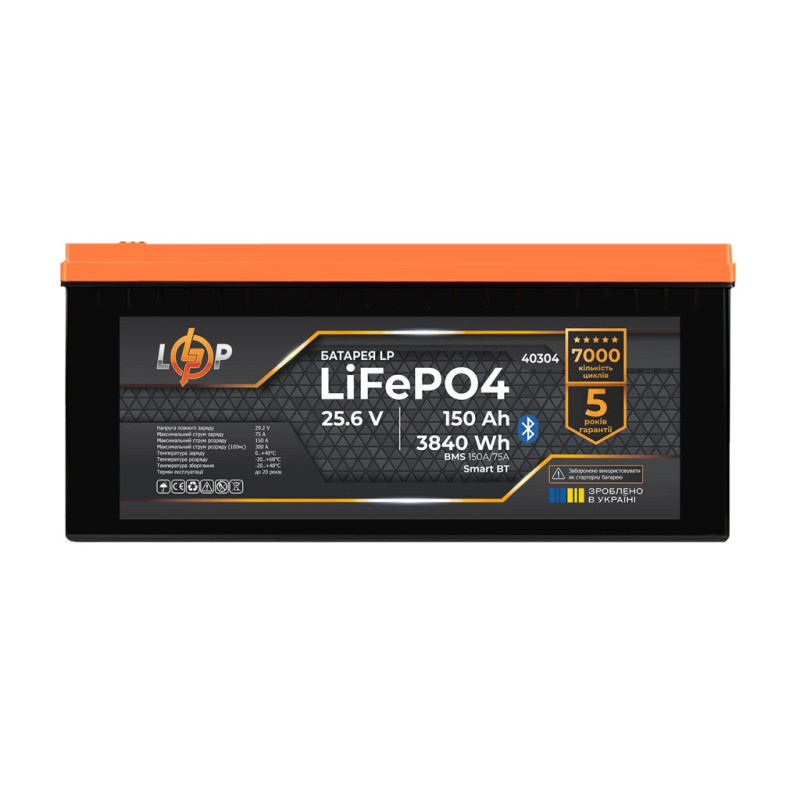

• Battery LP LiFePO4 25.6V - 150 Ah (3840Wh) (BMS 150A/75A) plastic Smart BT
