UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

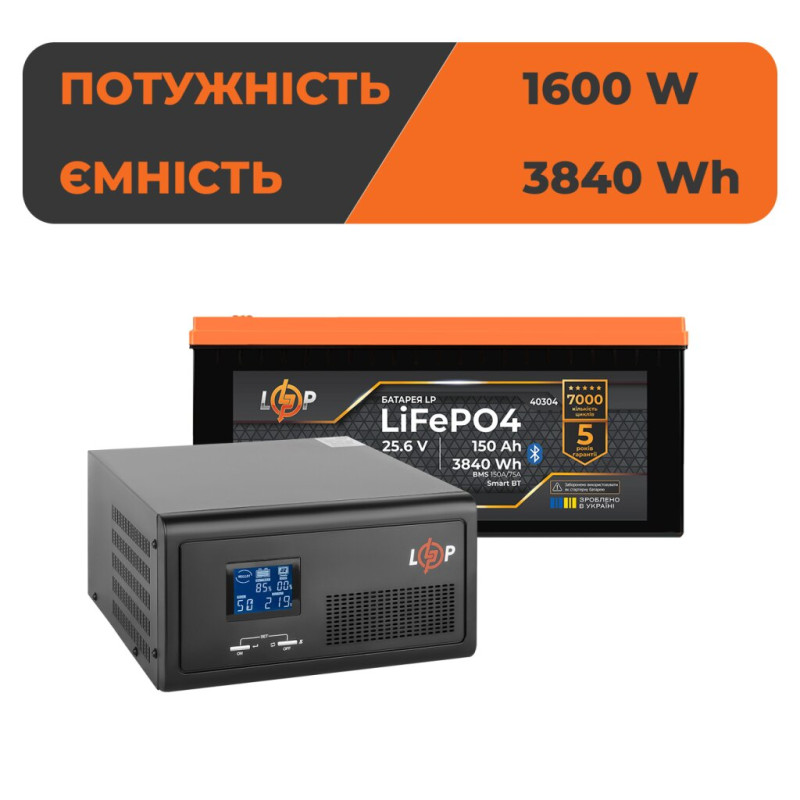

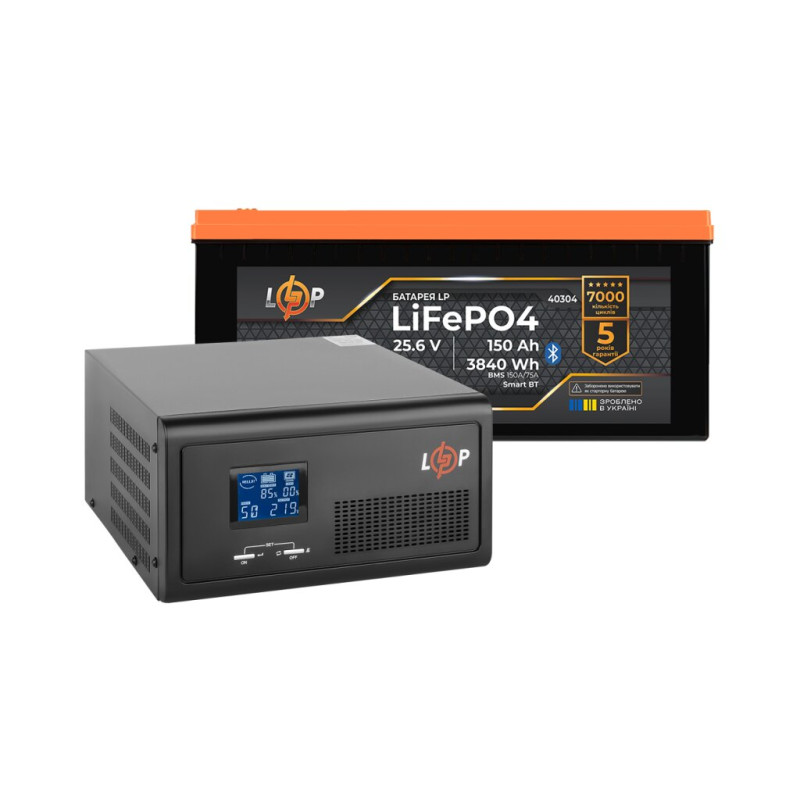

The LogicPower LogicPower B1500 + 3840 Watt Lithium (LiFePO4) Battery (19409+40304 150 Ah) backup power kit is designed and put into operation to provide uninterrupted power to electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of 2300/1600 VA/W performs 2 main functions: voltage stabilization (input - 150V -282V at set output voltage 220V, 156V -294V at set output voltage 230V, 163V -307V at set output voltage 240V; output - 220/230/240±5%V) and converting DC from the battery to a 230V AC source. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+Battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for UPS + Battery Backup Power Kit

230V power grid – uninterruptible power supply with external battery – power consumer.

• UPS to grid connection system – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase. Before buying a UPS, be sure to consult with specialists.

The kit includes:

• LogicPower LPM-PSW-4500VA (3000W) Pure Sine Wave UPS 24V

• LP LiFePO4 Battery 25.6V - 150 Ah (3840Wh) (BMS 150A/75A) Plastic Smart BT
