UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

The LogicPower UPS 15000W + 15360 Wh lithium (LiFePO4) battery backup power kit has been developed and put into operation to provide uninterrupted power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of [Мощность, VA/W] VA/W performs 2 main functions: voltage stabilization (input - [Диапазон входного напряжения, V]V, output - 220 / 380; 230 / 400V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+Battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for UPS + Battery Backup Power Kit

220V power grid – uninterruptible power supply with external battery – power consumer.

• UPS to grid connection system – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase.

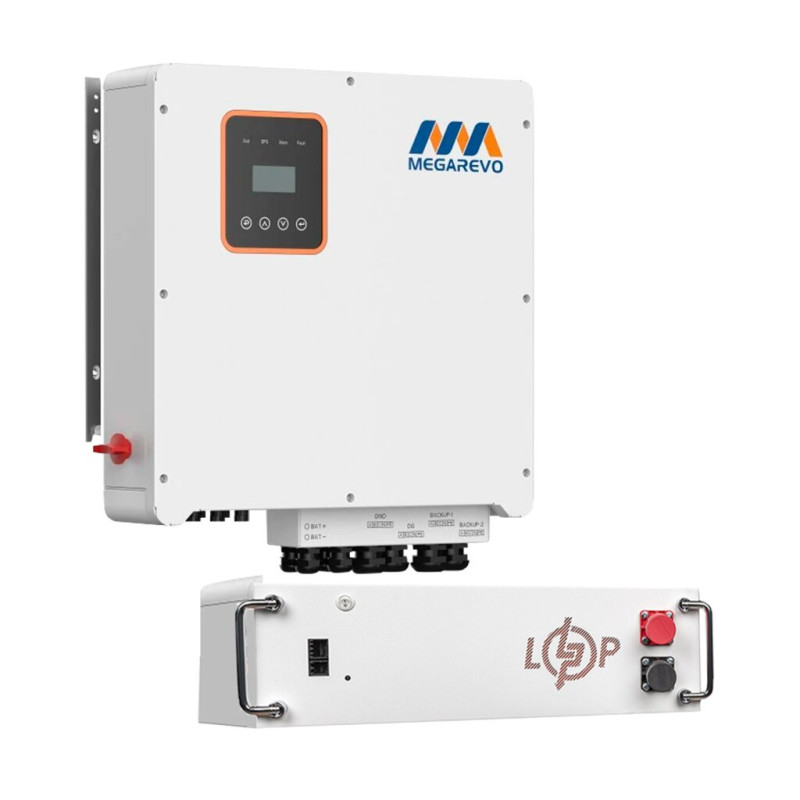

The kit includes:

• Megarevo for LP R15KH3 Hybrid Three-Phase Inverter (15 kW, 150-550 V) - 1 pc.

• LP LiFePO4 Battery HVM 153.6V 100Ah (15360 Wh) BMS 125A AB Lrack white
