UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

The LogicPower LogicPower B1500 + 1920 Watt (3406+40303 150 Ah) lithium (LiFePO4) battery backup power kit has been developed and put into operation to provide uninterrupted power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of 1500/1050 VA/W performs 2 main functions: voltage stabilization (input - 150V -282V at set output voltage 220V, 156V -294V at set output voltage 230V, 163V -307V at set output voltage 240V; output - 230+-10%V) and converting DC from the battery to an AC voltage source of 230V. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for UPS + Battery Backup Power Kit

230V power grid – uninterruptible power supply with external battery – power consumer.

• UPS connection to the grid – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase. Before buying a UPS, be sure to consult with specialists.

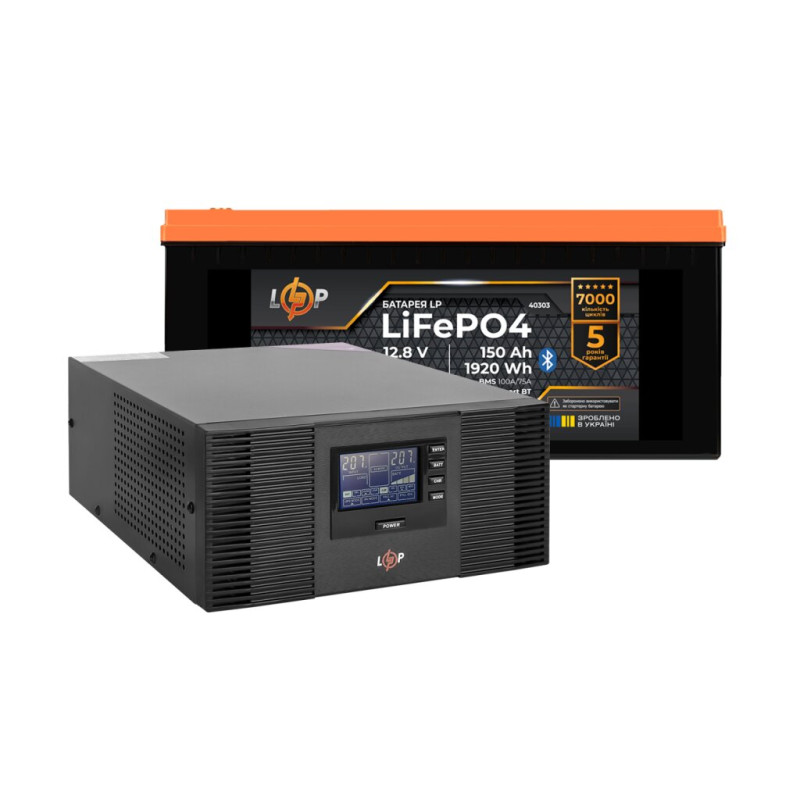

The kit includes:

• 12V LPM-PSW-1500VA (1050W) Pure Sine Wave UPS

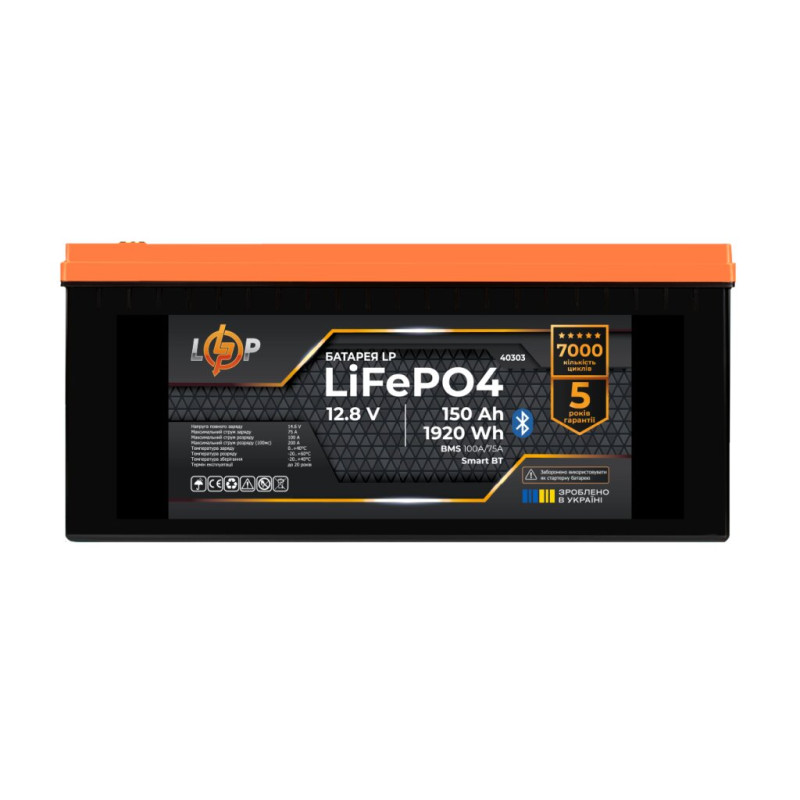

• LP LiFePO4 12.8V - 150 Ah (1920Wh) (BMS 100A/75A) Plastic Smart BT Battery
