UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

The LogicPower LogicPower B1500 + 1920 Watt (19408+40302 150 Ah) lithium (LiFePO4) battery backup power kit was developed and put into operation to provide uninterrupted power to electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of 1500/1000 VA/W performs 2 main functions: voltage stabilization (input - 150V -282V at set output voltage 220V, 156V -294V at set output voltage 230V, 163V -307V at set output voltage 240V; output - 220/230/240±5%V) and converting DC from the battery to an AC 230V source. The UPS uninterruptible power system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power system for an apartment - the UPS+battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for UPS + Battery Backup Power Kit

230V power grid – uninterruptible power supply with external battery – power consumer.

• UPS to grid connection system – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection diagram includes equipment with high inrush currents, the power load reserve factor will increase. Before buying an uninterruptible power supply, be sure to consult with specialists.

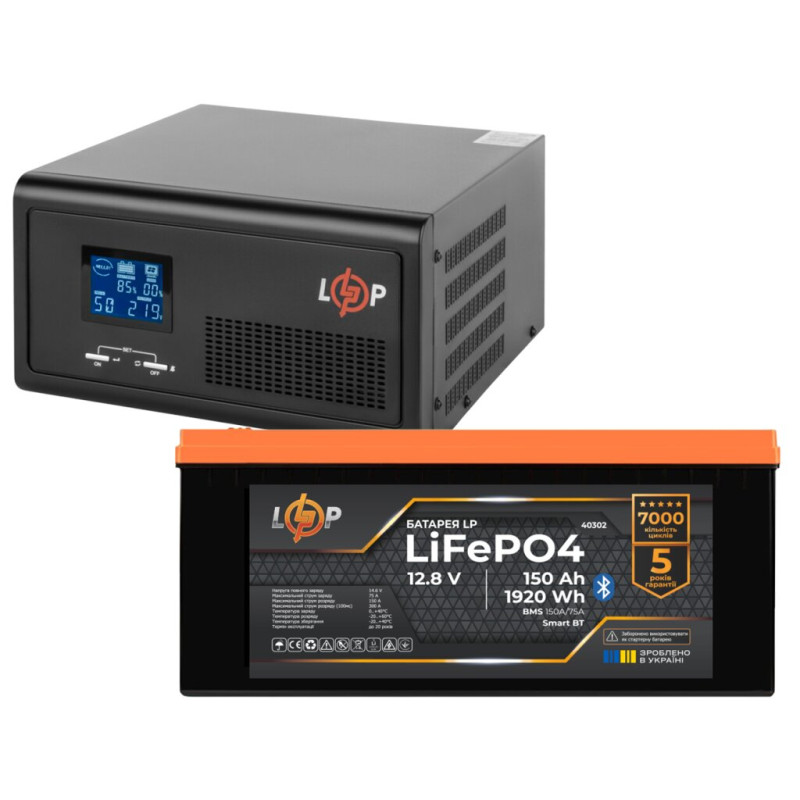

The kit includes:

• Pure Sine Wave UPS 12V LPE-B-PSW-1500VA+ (1000W) 1-35A

• LP LiFePO4 Battery 12.8V - 150 Ah (1920Wh) (BMS 100A/75A) plastic Smart BT
