UPS+Battery Kit for Uninterruptible Power Supply of Electrical Equipment and Emergency Lighting with External Battery

The LogicPower UPS backup power kit with pure sine wave 12V LPM-PSW-1500VA (1050W) + LP LiFePO4 12.8V - 200 Ah (2560Wh) (BMS 200A/100A) plastic Smart BT battery has been developed and put into operation to provide uninterruptible power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating in 24/7/365 mode. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of 1500/1050 VA/W performs 2 main functions: voltage stabilization (input - 140-275V, output - 220±10%V) and conversion of DC current from the battery to an AC voltage source of 220V. The UPS uninterruptible power supply system is controlled by a microprocessor. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+Battery kit - is equipped with a LiFePO4 battery.

Connection Diagram for UPS + Battery Backup Power Kit

220V power grid – uninterruptible power supply with external battery – power consumer.

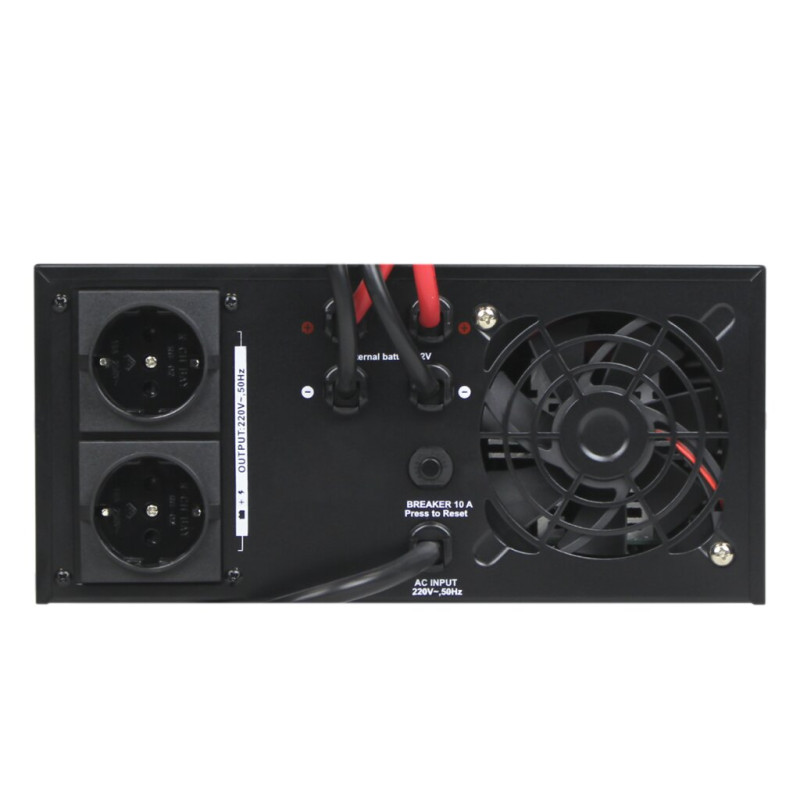

• UPS connection to the grid – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase.

LogicPower LiFePO4 batteries have several operational advantages: low self-discharge, fast charging, long cycle life, and compact size.

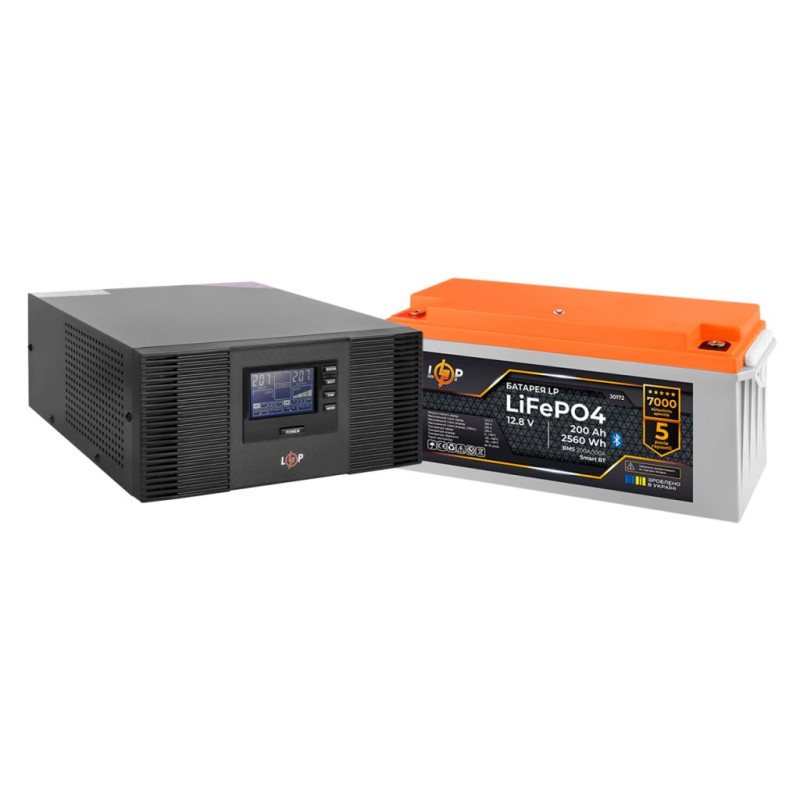

The kit includes:

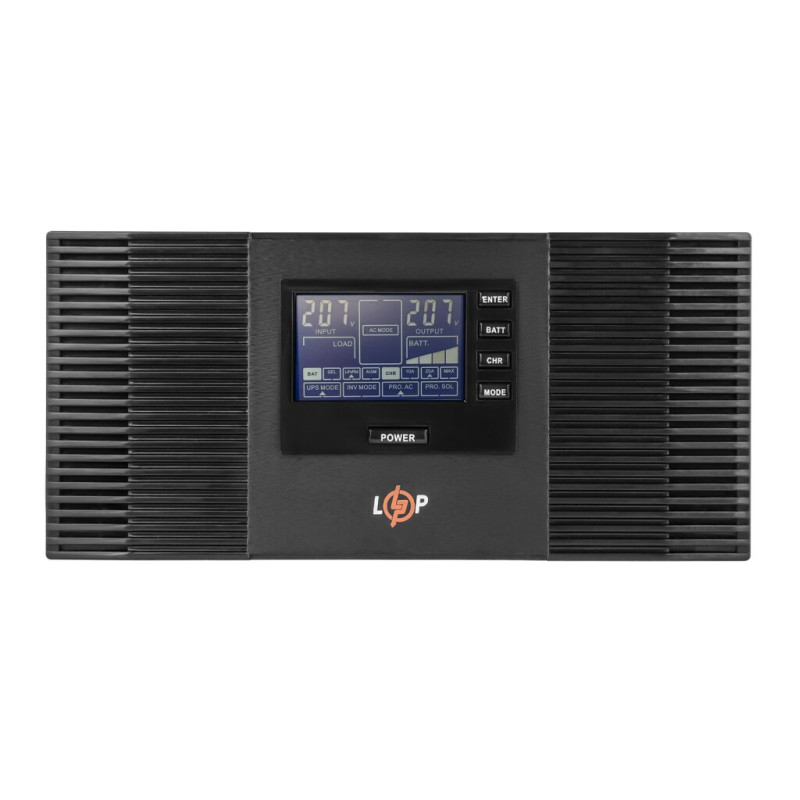

• UPS with pure sine wave 12V LPM-PSW-1500VA (1050W) - 1 pc.

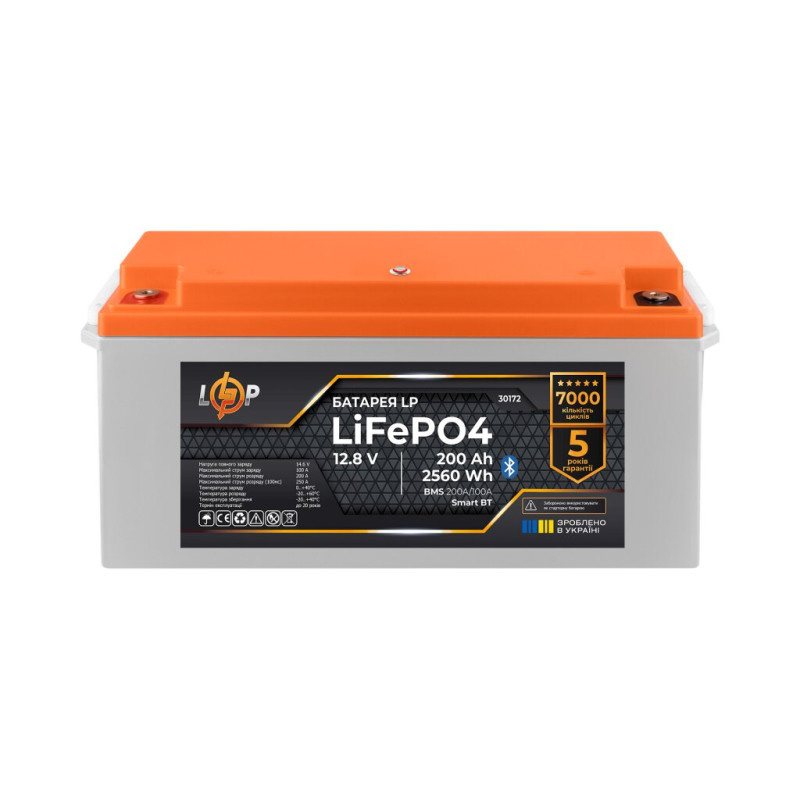

• LP LiFePO4 12.8V - 200 Ah (2560Wh) (BMS 200A/100A) plastic Smart BT battery - 1 pc.
