UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

The LogicPower LP W6000 + Lithium (LiFePO4) 6000 Watt Battery (22790+30385 120 Ah) backup power kit is designed and put into operation to provide uninterrupted power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The uninterruptible power supply with pure sine wave output with a power of [Мощность, VA/W] VA/W performs 2 main functions: voltage stabilization (input - [Диапазон входного напряжения, V], output - 230V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for UPS + Battery Backup Power Kit

220V power grid – uninterruptible power supply with external battery – power consumer.

• UPS connection to the grid – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase. Before buying an uninterruptible power supply, be sure to consult with specialists.

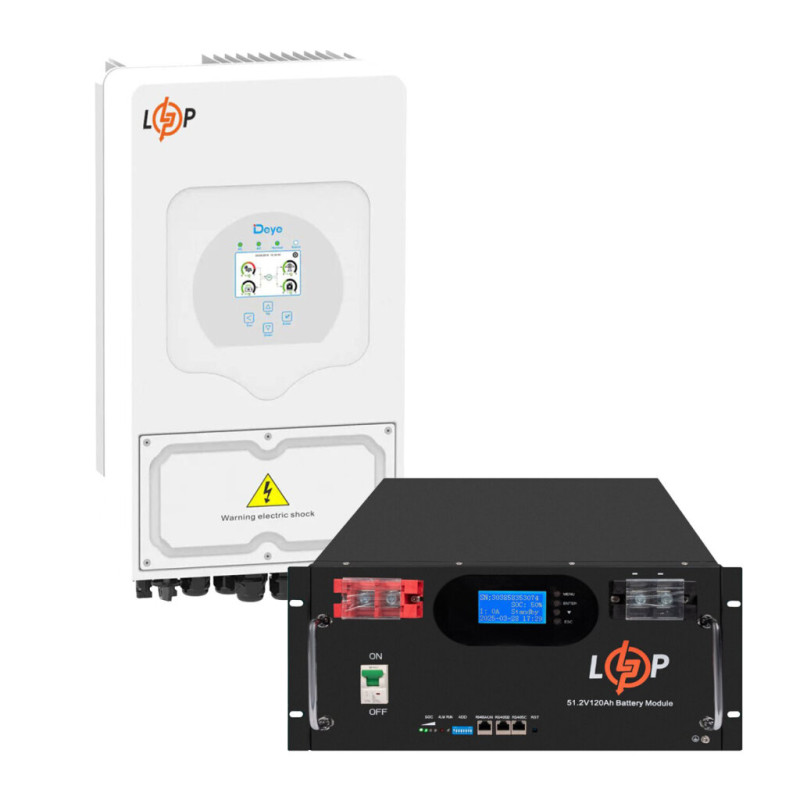

The kit includes:

• DEYE for LP Hybrid Single-Phase Inverter SUN-6K-SG05LP1-EU Wi-Fi

• LP LiFePO4 Battery 51.2V - 120 Ah 6000Wh (Smart BMS 100A) with LCD RM AB RS485/CAN
