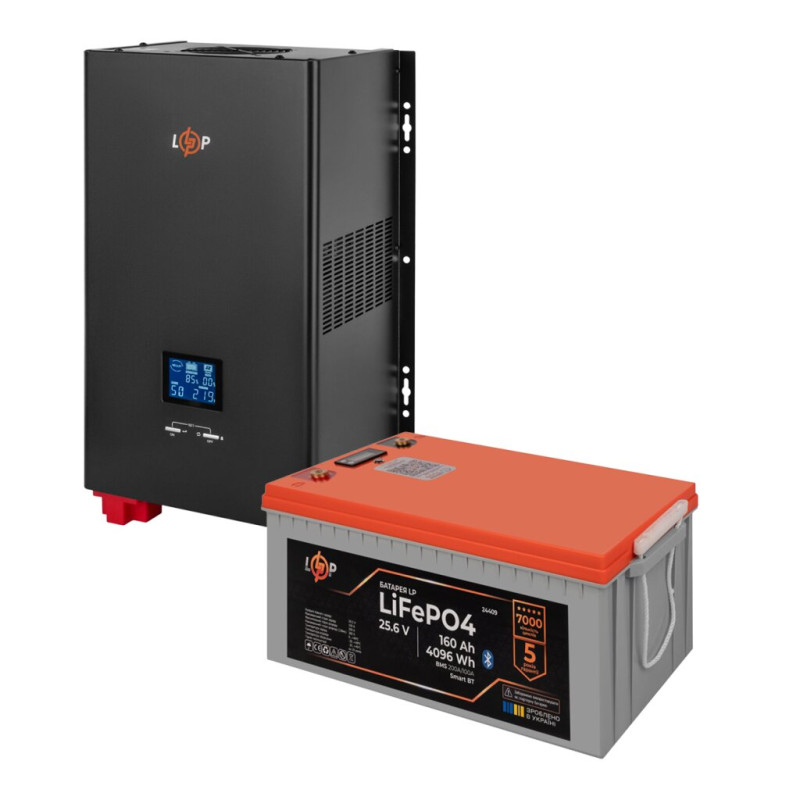

UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery
The LogicPower LogicPower B3500 + 4096 Watt Lithium (LiFePO4) Battery (19411+24409 160 Ah) backup power kit has been developed and put into operation to provide uninterruptible power for electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.
The pure sine wave uninterruptible power supply with a power of 5000/3500 VA/W performs 2 main functions: voltage stabilization (input - 150-282, output - 220/230/240±5%V) and conversion of DC from the battery to an AC 220V source. The UPS uninterruptible power system is controlled by a microprocessor. The battery provides power in backup mode.
The uninterruptible power system for an apartment - the UPS+battery kit - is equipped with a multi-gel AGM battery.
Connection Diagram for the UPS + Battery Backup Power Kit
220V power grid – uninterruptible power supply with external battery – power consumer.
- UPS connection to the grid – standard Euro plug
- Battery connection type – terminals
- Power consumer connection type – standard Euro socket
The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.
ATTENTION! If your connection diagram includes equipment with high inrush currents, the power load reserve factor will increase. Before buying an uninterruptible power supply, be sure to consult with specialists.
The kit includes:
Pure Sine Wave UPS 24V LPE-W-PSW-5000VA+ (3500W) 1-50A
