UPS+Battery Kit for Uninterruptible Power Supply of Electrical Equipment and Emergency Lighting with External Battery

The LogicPower LP W16000 + Lithium (LiFePO4) Battery 11776 Watt (30644+23628 230 Ah) backup power kit has been developed and put into operation to provide uninterruptible power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The uninterruptible power supply with pure sine wave, with a power of [Мощность, VA/W] VA/W, performs 2 main functions: voltage stabilization (input - [Диапазон входного напряжения, V], output - 220/230V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for UPS + Battery Backup Power Kit

220V power grid – uninterruptible power supply with external battery – power consumer.

• UPS connection to the grid – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase. Before buying an uninterruptible power supply, be sure to consult with specialists.

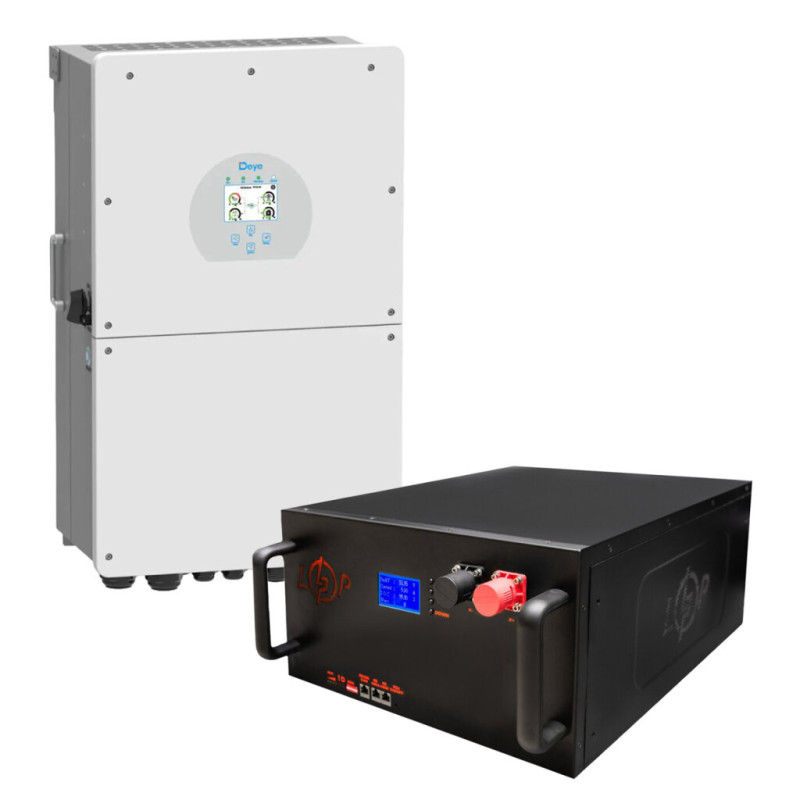

The kit includes:

• DEYE for LP Hybrid Single-Phase Inverter SUN-16K-SG01LP1-EU

• Battery LP LiFePO4 51.2V - 230 Ah (11776Wh) (Smart BMS 200A/100A) with LCD metal RM RS485/CAN
