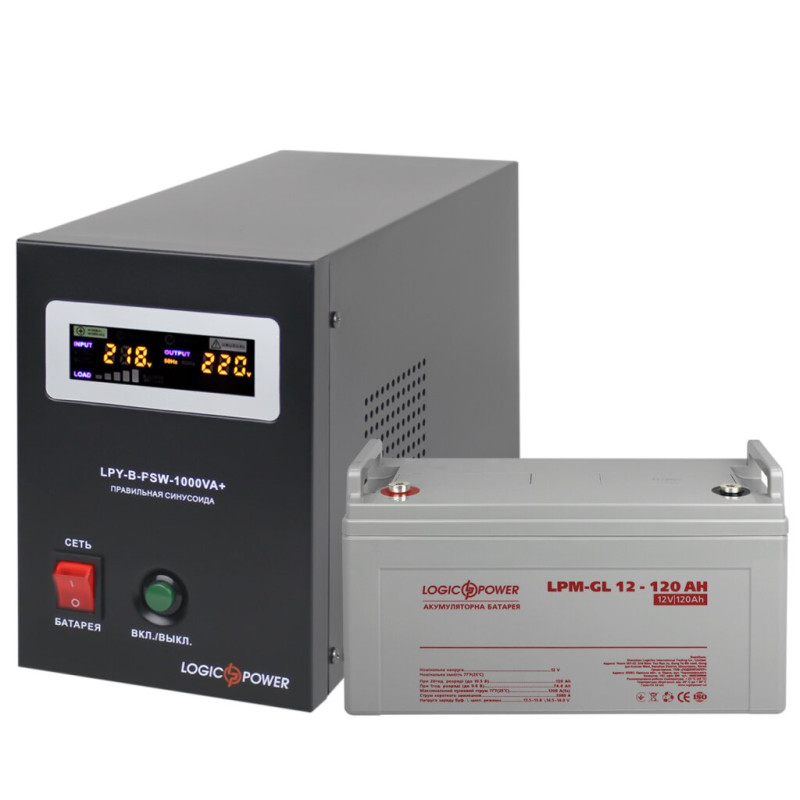

UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery
The LogicPower UPS B1000VA + 1440W Gel Battery backup power kit is designed and put into operation to provide uninterrupted power to electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.
The pure sine wave uninterruptible power supply with a capacity of 1000/700 VA/W performs 2 main functions: voltage stabilization (input - 140-275V, output - 220±10%V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS system is microprocessor-controlled. The battery provides power in backup mode.
Autonomous operating time of electrical equipment in case of power outage from the general grid:
- 230 hours for a router,
- 14 hours for a laptop,
- 12 hours for a TV,
- 9.6 hours for a heating boiler,
- 4.25 hours for a PC,
- 40 gadget charges.
The uninterruptible power supply system for an apartment - the UPS+Battery kit - is equipped with a GEL type battery.
Connection diagram for the UPS + Battery backup power kit
220V power grid – uninterruptible power supply with external battery – power consumer.
- UPS to grid connection system – standard Euro plug
- Battery connection type – terminals
- Power consumer connection type – standard Euro socket
The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.
The kit includes:
-

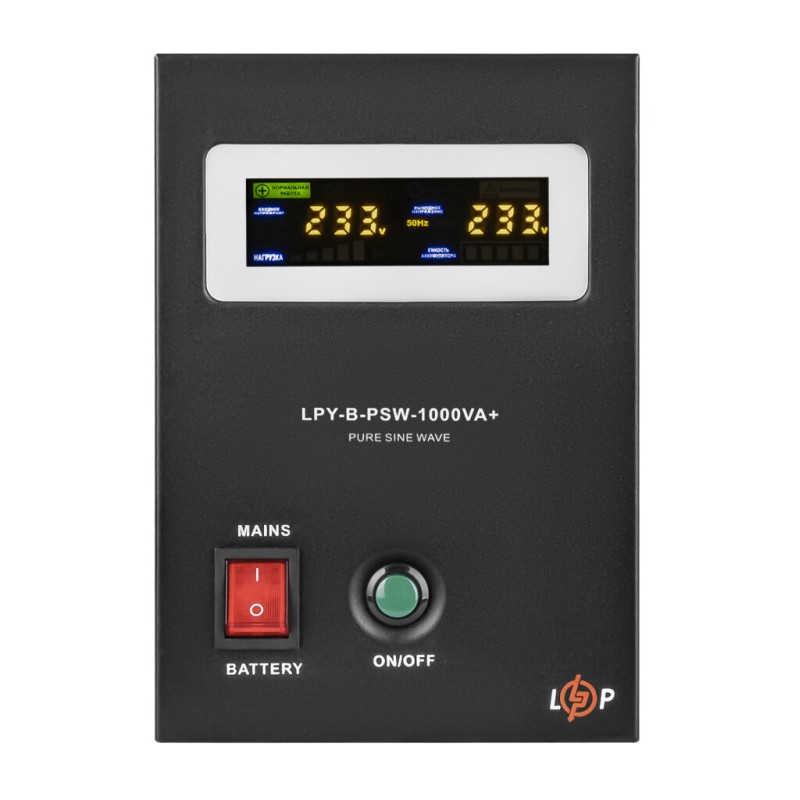

Pure Sine Wave UPS 12V LPY-B-PSW-1000VA+(700W) 10A/20A
-

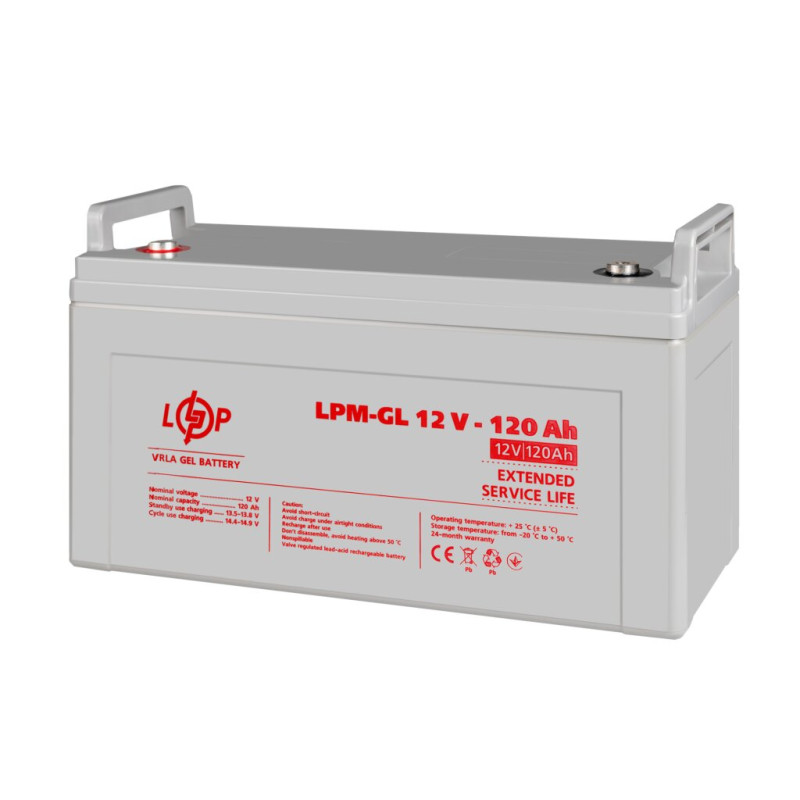

Gel Battery LPM-GL 12V - 120 Ah
