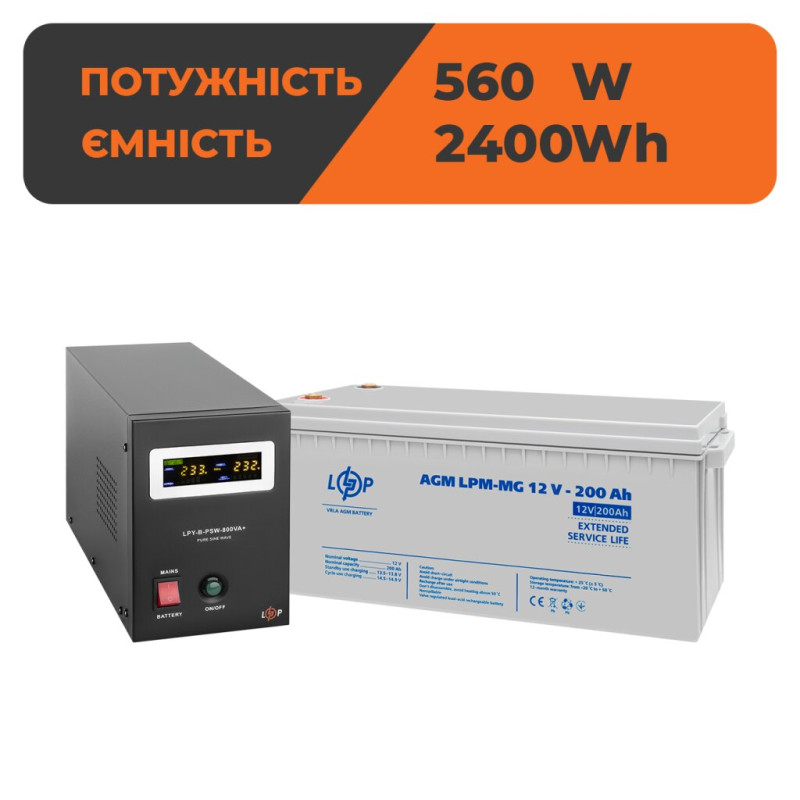

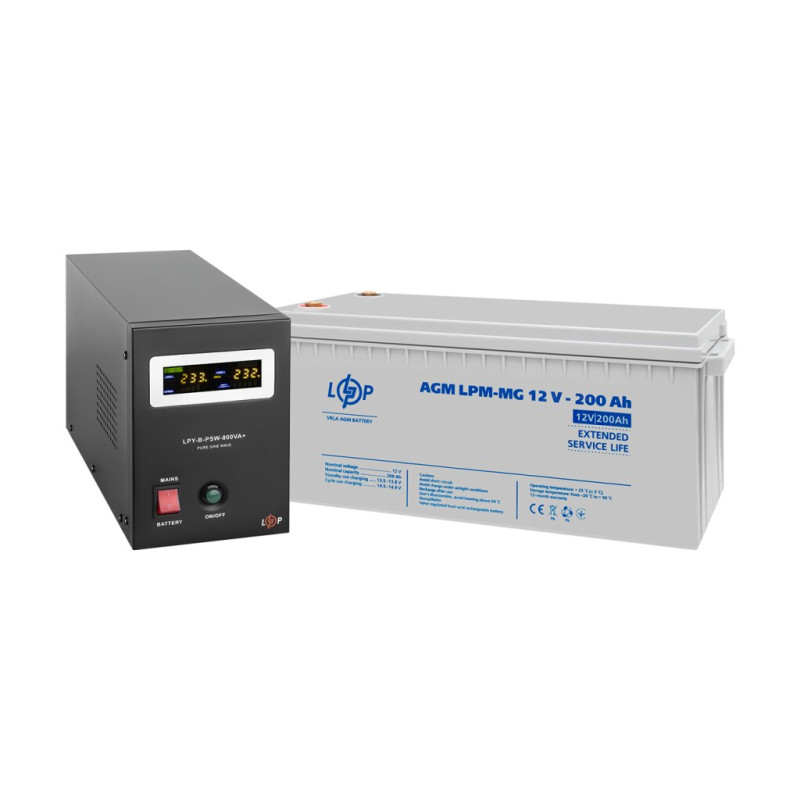

UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

The LogicPower (4150+3875 200 Ah) backup power kit has been developed and put into operation to provide uninterrupted power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The uninterruptible power supply with pure sine wave output with a power of [Мощность, VA/W] VA/W performs 2 main functions: voltage stabilization (input - [Диапазон входного напряжения, V], output - [Выходное напряжение, V]V) and conversion of DC from the battery to an AC 220V source. The UPS system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power supply system for an apartment - the UPS+battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for UPS + Battery Backup Power Kit

220V power grid – uninterruptible power supply with external battery – power consumer.

• UPS connection to the grid – standard Euro plug
• Battery connection type – [Тип подключения батареи к ИБП]
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection diagram includes equipment with high inrush currents, the power load reserve factor will increase. Before buying a UPS, be sure to consult with specialists: +38(080)030-99-88

The kit includes:

• UPS with pure sine wave 12V LPM-PSW-1500VA (1050W)

• Multi-gel battery LPM-MG 12V - 120 Ah
