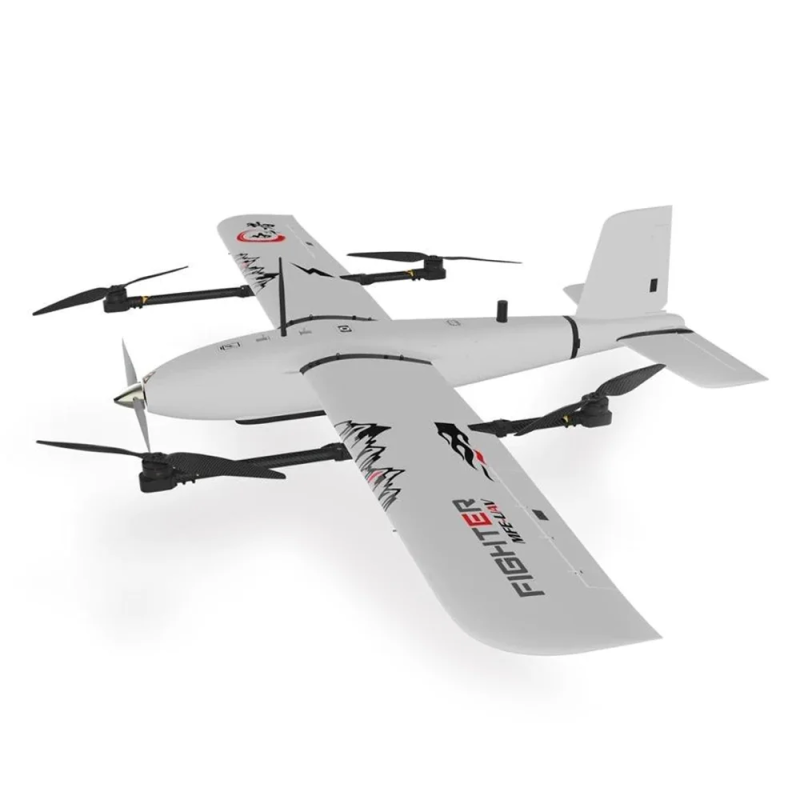

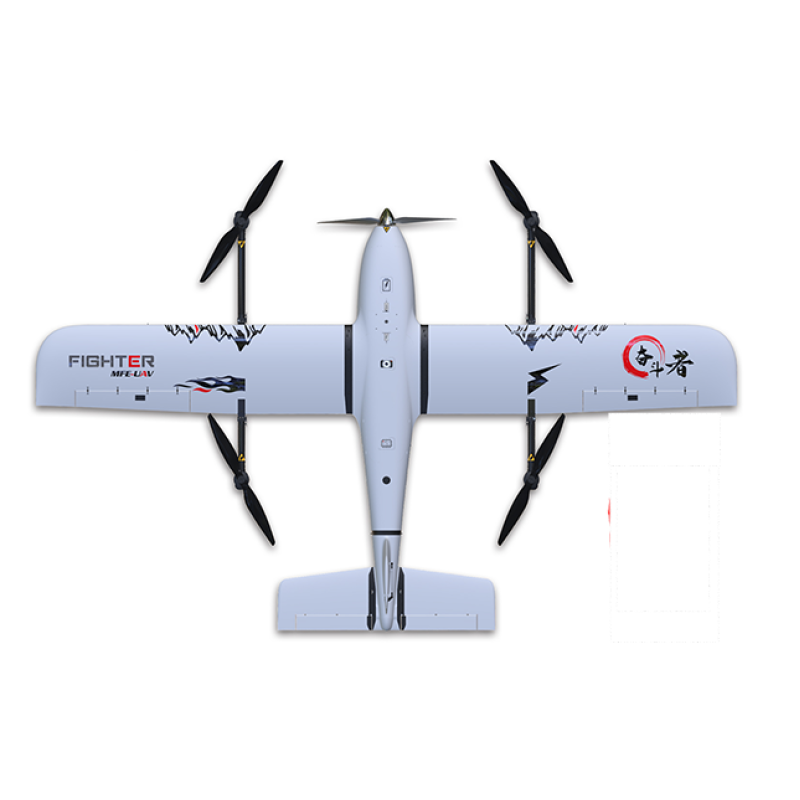

Makeflyeasy (MFE) Fighter VTOL Aircraft Model Assembly Kit

The professional KIT from the MakeFlyEasy brand is an assembly kit for the Fighter VTOL aircraft model with a 2430 mm wingspan, designed for aerial photography, long-duration missions, and precise topographic work. The model combines the "fixed-wing + VTOL" concept, making the platform versatile for monitoring, surveying, and inspection tasks.

What KIT and PNP Mean

KIT — a kit containing the main components for assembling or installing a product, but not including electronics, software, or other additional elements. PNP (Plug-N-Play) — a configuration format for radio-controlled models where the model comes with basic equipment (servos, motors, ESCs, etc.), but requires a battery, receiver, and transmitter for full functionality.

PNP Version Package Includes

• 1x MFE Fighter 2430mm Wingspan Compound Wing EPO VTOL Aerial Survey FPV RC Airplane KIT
• 1x Cruise 5020 disc motor
• 1x 60A speed controller
• 1x Cruise propeller APC2013
• 4x VTOL 5015 disc motor
• 4x 40A speed controllers
• 2x VTOL propeller CW&CCW 2070
• 5x Fixed-wing servo 3054
• 1x BEC 5V10A
• 2x Wing wiring board
• 1x Wire package

The UAV weighs approximately 10 kg (manual parachute/VTOL), is easy to transport, and convenient to operate. The model is positioned as a reliable fixed-wing platform, simplifying the aerial photography process and increasing its efficiency. Thanks to its modular design, the aircraft is easy and quick to assemble: wings, folding arms, and fuselage can be disassembled without tools, making the device portable and convenient in the field. There are covers for accessing the payload bay.

Flight control is compatible with Pixhawk systems and supports mounting a full-frame Sony A7R2 4200W camera and a lightweight lidar weighing up to 1.5 kg. The recommended battery is a 12s 22000mAh lithium polymer, allowing for long range and high-quality imaging. The model ensures compatibility with professional avionics and offers flexibility in sensor and camera selection.

Applications

The model is suitable for aerial photography at scales of 1:1000 and 1:2000, surveying and mapping, monitoring agricultural lands, forests, and pastures, power line inspections, environmental control, and construction monitoring. The platform is aimed at professional users who require long flight range and precise imaging.

Technical Specifications

• Brand: MFE
• Item Name: Fighter
• Material: EPO, EVA, carbon fiber, PC, engineering plastic, etc.
• Wingspan: 2430 mm
• Fuselage Length: 1450 mm
• Fuselage Height: 180 mm
• Wing Area: 72.5 dm²
• Recommended Flight Speed: 17~20 m/s
• Stall Speed: 10 m/s
• Maximum Payload: 1.5 kg
• Payload Bay Size: 280×160×110 mm
• Longest Flight Range: >150 km (600g load)
• Max. Takeoff Weight: 11.5 kg
• Practical Ceiling Height: 4000 m
• Wind Resistance: 5 (class/level)
• Takeoff and Landing: VTOL
• Disassembly Method: tool-free
• Transport Box Size: 1.25 m × 0.34 m × 0.49 m

Features and Benefits

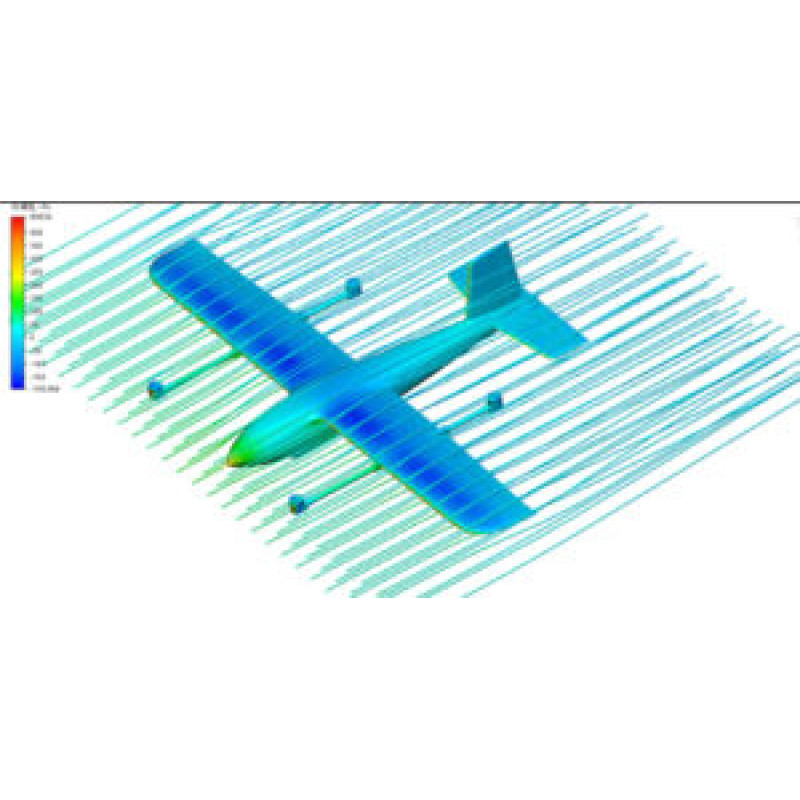

• Efficient aerodynamic design based on an inverted T-configuration: optimized placement of wings, horizontal and vertical tail, and fuselage.
• Lightweight yet stable construction ensures reliable flight and stability during imaging.
• Wings and tail detach easily without tools for quick maintenance and transport.
• IPX3 waterproof rating provides basic rain protection.
• Spacious fuselage cabin and low aerodynamic drag.

The kit is ideal for professional users who require flexibility in avionics and payload selection, as well as for tasks demanding long flight range and imaging precision. Brand: MakeFlyEasy. Product Category: Drones, EW, Drone Detectors, Components > Drones and Quadcopters > Aircraft Models.
