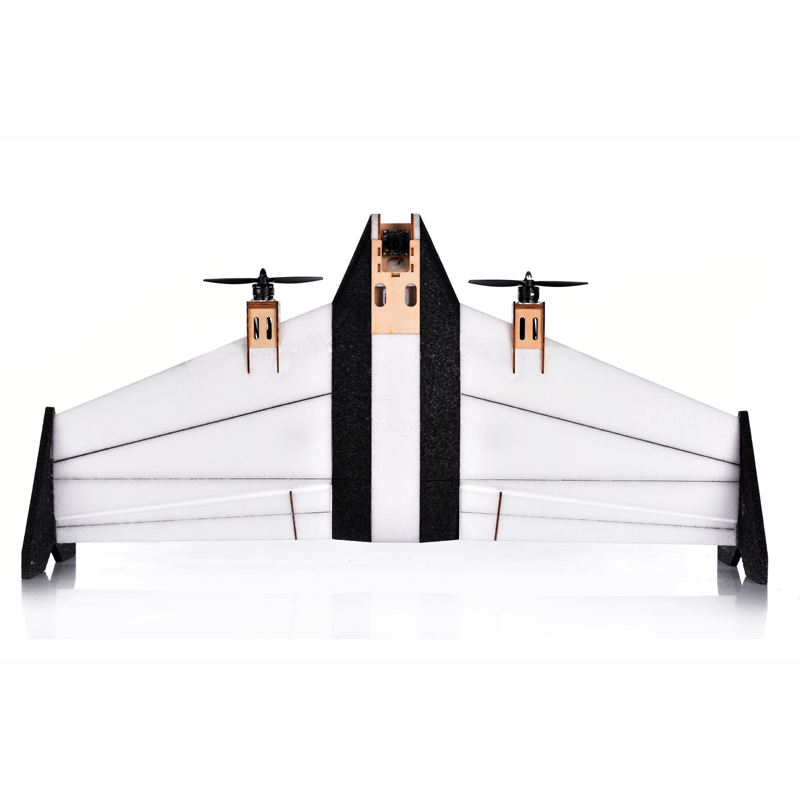

ArkBird VTOL FPV Aircraft Model Kit — Overview and Advantages
The ArkBird VTOL FPV kit — a versatile solution for those seeking a combination of vertical takeoff with glider efficiency. This model is designed as a VTOL (Vertical Take-Off and Landing): it can take off vertically nose-up, using differential engine thrust and ailerons for stabilization, then smoothly transition to horizontal flight. The camera remains horizontal during mode switching, ensuring stable video quality during transitions.
Kit Versions: PNP and KIT
PNP (Plug-N-Play) means the model comes with basic electronics and power components already installed and ready for quick flight preparation. The PNP version includes motors, electronic speed controllers (ESCs), servos, and other key components, but the user needs to connect a battery, receiver, and use their own transmitter (radio remote). PNP does not include additional modules that can be selected separately: GNSS navigation modules (if needed), FPV camera, additional VTX/telemetry, etc.
KIT — this is a delivery of only the structural part: fuselage, wings, and other airframe elements without electronics or power equipment. KIT is ideal for experienced modelers who wish to personalize the model by selecting the motor, ESC, servos, flight controller, power system, and FPV equipment for specific tasks — from long-range autonomous flights to industrial monitoring or specialized FPV missions.
Main Model Characteristics
Specifications:
- Brand: Arkbird
- Type: Airplane
- Model: Arkbird-VTOL
- Material: Foam
- Dimensions: 860 mm × 500 mm (wingspan 860 mm)
- Connector Type: XT60
- Power Source: Electric
- Flight Time: over 25 minutes
- Remote Control Distance: over 1.5 km
- Charging Voltage: 16.8 V (4S LiPo)
Operational Features
- 860 mm wingspan — optimal size for transport and storage.
- Flight time up to 25+ minutes at a horizontal speed of about 45 km/h.
- Intelligent modes: balance mode, return-to-home (RTH) mode, geofence mode, VTOL mode, and other typical Arkbird modes that can be configured during flight.
- VTOL mode provides about 8 minutes of vertical flight with quadcopter-like control.
- Instant switching between horizontal and vertical modes with one click and intelligent PID controller for smooth transition.
- Camera remains horizontal during mode changes for continuous recording of stable video.
What's Included in the Kit
The ArkBird VTOL FPV kit is available in two configurations: PNP and KIT. The PNP version is suitable for those who want to minimize preparation time for their first flight — most electronics are already installed and configured. The KIT version provides complete freedom to choose components for individual assembly and integration of specialized sensors or cameras.
| Feature | PNP Version | KIT Version |
|---|---|---|
| Contents | Fully assembled kit with electronics | Body components only (no electronics) |

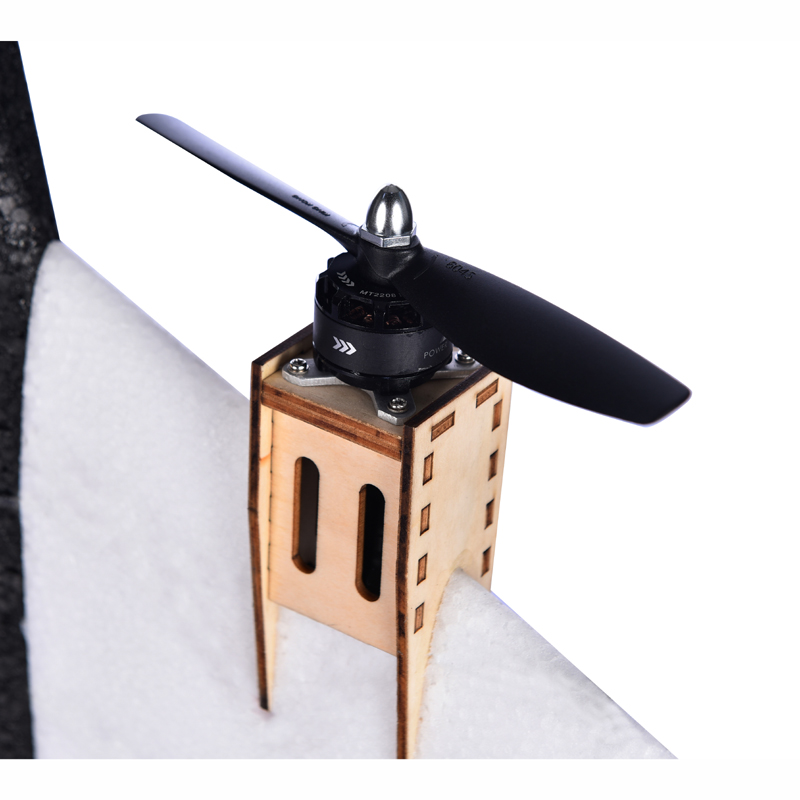

| Motors | Included: EMAX MT2208II KV1500 | Not included |
| Speed Controllers (ESC) | Included: Hobbywing XRotor 20A | Not included |
| Servos | Included: 3 pcs (EMAX 9g, metal and plastic) | Not included |
| Propellers | Included: 2 pairs Kingkong 6045 | Not included |
| Autopilot | Included: Arkbird 2.0 with GPS and intelligent functions | Not included |
| FPV System | Included: Arkbird 5.8GHz 600mW Vtx | Not included |
| Receiver | Included: Arkbird 433MHz receiver | Not included |
The ArkBird VTOL combines the best of both worlds: vertical takeoff and glider efficiency in horizontal flight. This makes the model versatile for training, recreation, FPV flights, and monitoring tasks. Brand: Arkbird. Product category: Drones, EW, Drone Detectors, Components → Drones and Quadcopters → Aircraft Models. Product ID: 11638.
