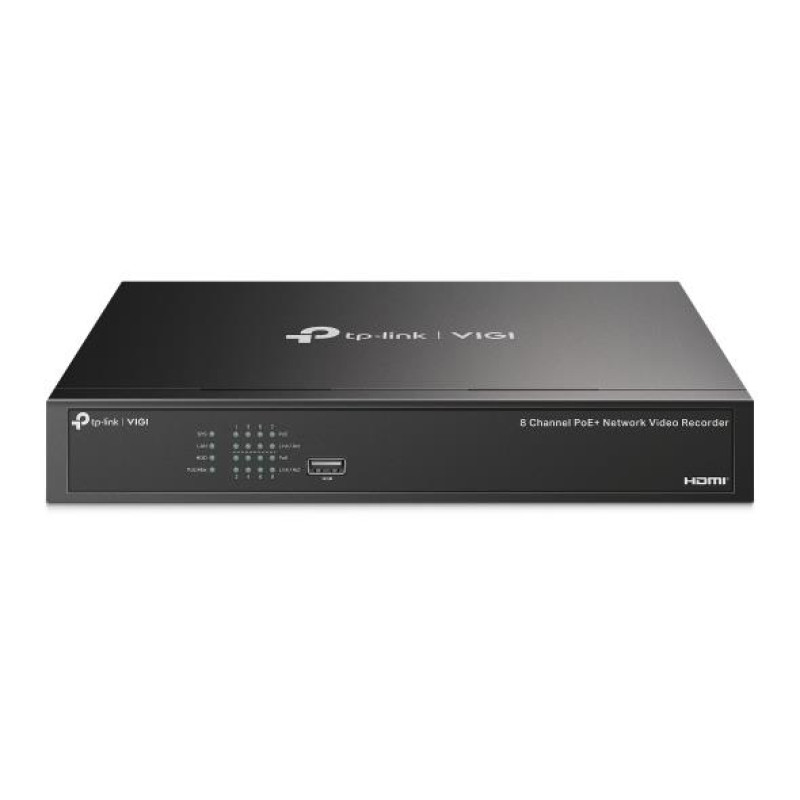

TP-Link VIGI NVR1008H-8MP is an 8-channel network video recorder with PoE+ support, designed for professional video surveillance systems. It provides high-quality recording and convenient management, making it an ideal choice for small and medium-sized businesses.
Key Advantages:
-
4K HDMI Video Output and up to 16MP Decoding: Supports resolution up to 8MP per channel and a total decoding capability of up to 16MP, ensuring clear images from all cameras.
-
8 PoE+ Ports with 113W Budget: Provides power and data transmission for cameras via a single cable, simplifying installation and reducing the need for additional equipment.
-
8-Channel Simultaneous Playback: Allows simultaneous viewing of recordings from 8 cameras, accelerated playback, and convenient event search by schedule.
-
H.265+ Video Codec: Reduces network load and saves disk space without compromising image quality.
-
ONVIF Compatibility: Ensures easy integration with cameras from other manufacturers, creating a flexible and powerful video surveillance network.
-
Two-Way Audio Support: Allows real-time conversations through connected cameras, convenient for management and communication.
-
Up to 16TB HDD Support: Provides long-term storage of video recordings for quick and convenient data access.
-
Remote Monitoring: Control and view video via the VIGI app, web interface, or VIGI Security Manager software.
-
Flexible Installation: Rack-mountable or desktop/under-desk placement for user convenience.
Technical Specifications
| Feature | Value |
|---|---|
| Video Input | 8 IP channels, up to 8MP resolution |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Video Output | HDMI: up to 3840×2160/30Hz; VGA: up to 1920×1080/60Hz |
| Video Codec | H.265+/H.265/H.264+/H.264 |
| Audio Codec | G.711A/G.711U/G.726 |
| Simultaneous Playback | 8 channels |
| Recording Modes | Manual, scheduled, motion detection |
| HDD Support | 1 SATA interface, up to 16 TB |
| PoE+ Ports | 8× 10/100 Mbps RJ-45, 113W budget (up to 30W per port) |
| Network Protocols | UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Interfaces | 2× USB 2.0, 1× audio input (RCA), 1× audio output (RCA), 1× LAN (RJ-45) |
| Power Supply | 53.5 V DC / 2.43 A |
| Operating Temperature | From -10°C to 55°C |
| Dimensions | 294 × 180 × 44 mm |
| Weight | 1.12 kg (net), 2.2 kg (gross) |
This video recorder is ideal for businesses seeking a reliable and efficient video surveillance solution with easy scalability and integration.
