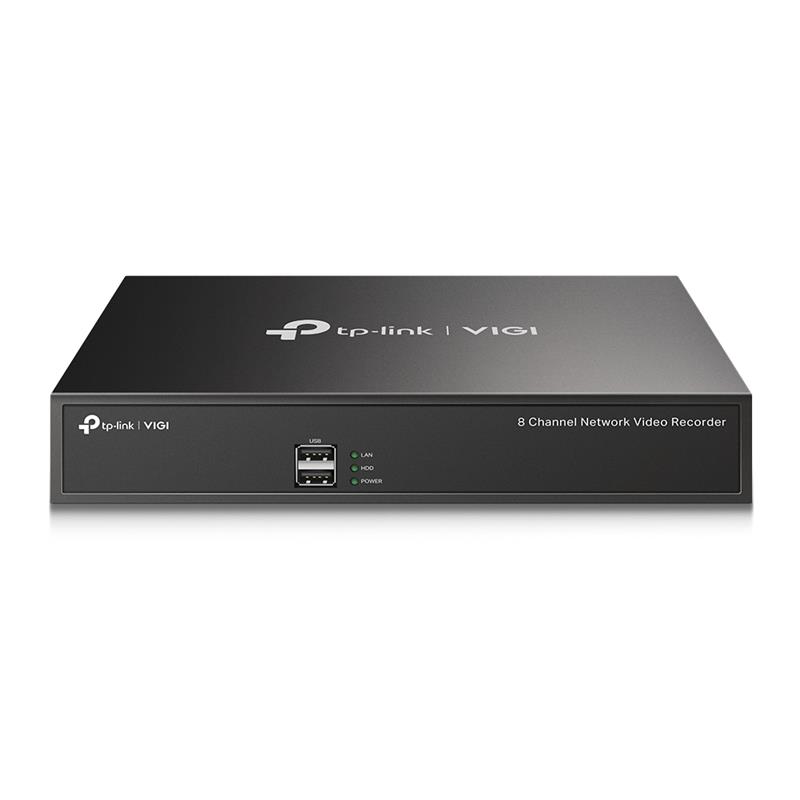

VIGI NVR1008H VIGI - Eight-channel Network Video Recorder
24/7 Recording: Automatically stores up to 10 TB of video from connected cameras (Hard drive not included - must be purchased separately). Eight-channel Live View: Clear images with up to 5 MP resolution and eight channels allow detailed viewing of everything from any angle. Simultaneous Playback: Simultaneous playback from four cameras, accelerated playback, and event search for quick navigation through recorded footage. Remote Monitoring: Simple and convenient remote monitoring using the VIGI app. H.265+: Crystal-clear image without additional bandwidth thanks to compression, which saves hard drive space, reduces load, and cuts network costs without sacrificing image quality. Wide compatibility thanks to ONVIF** standard: Wide compatibility allows easy connection of VIGI IP cameras and cameras from other manufacturers. Hard Drive (up to 10 TB): Secure local storage of up to 10 TB of video (~720 days of recording) on a SATA hard drive (Hard drive not included - must be purchased separately). Two-Way Audio: Ability to listen and speak simultaneously. Up to 80 Mbps Bandwidth: High bandwidth allows connecting more high-resolution cameras to the NVR. According to laboratory tests using VIGI cameras, up to eight 4 MP cameras can be connected to the VIGI NVR.
NETWORK
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
GENERAL INFORMATION
| Operating Temperature | –10...+55 °C |
| Dimensions (H x W x D) | 246.2 × 148.2 × 45 mm |
| Weight | 578.5 g |
| External Power Supply | 12 V DC, max 18 W |
| Power Consumption | 4.25 W (without disk) |
| 13.10 W (with disk) |
VIDEO/IMAGE
| Video Input | Eight-channel video input, up to 5 MP resolution |
| Video Output | Video recording resolution: 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF / HDMI / VGA |
| Display Resolution | 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1680 × 1050 / 60 Hz, 1440 × 900 / 60 Hz |
ENCODING
| Compression Format | H.265+/H.265/H.264+/H.264 |
| Live View and Playback Resolution | 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Simultaneous Playback | 4 channels† |
| Capacity | 1 channel: 5 MP |
| 2 channels: 2 MP |
| 4 channels: 720p |
HARD DRIVE
| SATA | 1 SATA interface (Purchased separately). Recommended series - WD Purple |
| Capacity | Up to 10 TB |
INTERFACE
| Network Connector | 1 auto-adaptive RJ-45 10/100 Mbps port |
| USB Interface | Two USB 2.0 ports |
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| General Characteristics | |
| Operating Temperature | –10...+55 °C |
| Dimensions (H x W x D) | 246.2 × 148.2 × 45 mm |
| Weight | 578.5 g |
| External Power Supply | 12 V DC, max 18 W |
| Power Consumption | 4.25 W (without disk) |
| 13.10 W (with disk) |
| VIDEO/IMAGE | |
| Video Input | Eight-channel video input, up to 5 MP resolution |
| Video Output | Video recording resolution: 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF / HDMI / VGA |
| Display Resolution | 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1680 × 1050 / 60 Hz, 1440 × 900 / 60 Hz |
| ENCODING | |
| Compression Format | H.265+/H.265/H.264+/H.264 |
| Live View and Playback Resolution | 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Simultaneous Playback | 4 channels† |
| Capacity | 1 channel: 5 MP |
| 2 channels: 2 MP |
| 4 channels: 720p |
| HARD DRIVE | |
| SATA | 1 SATA interface (Not included - purchased separately). Recommended series WD Purple: WD Hard Drives | ERC Ukraine |
| Capacity | Up to 10 TB |
| INTERFACE | |
| Network Connector | 1 auto-negotiating RJ-45 10/100 Mbps port |
| USB Interface | Two USB 2.0 ports |
