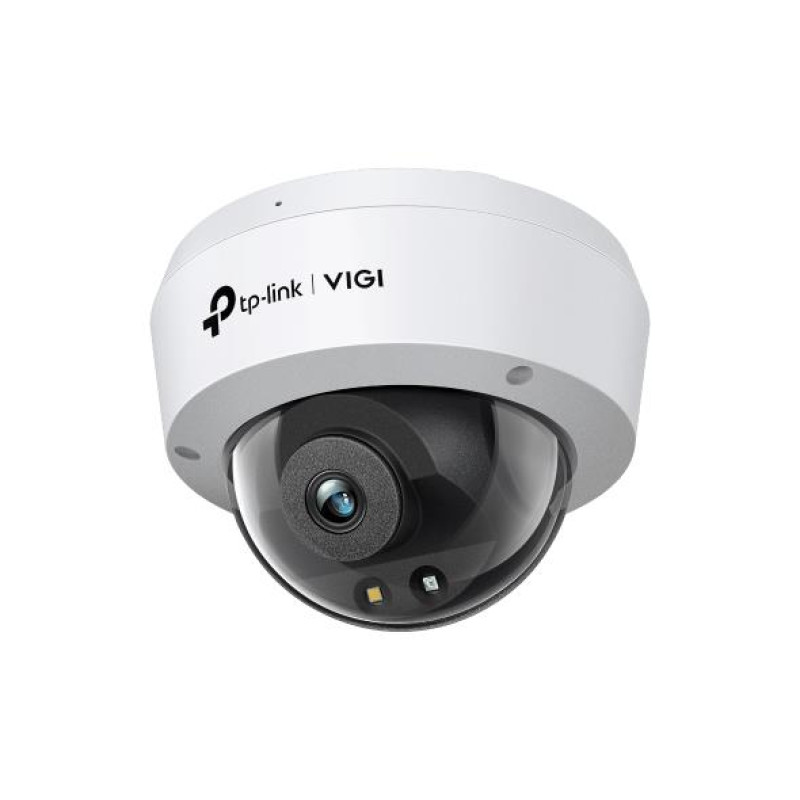

The TP-Link VIGI C230-4 is a high-quality 3-megapixel dome network camera designed to provide reliable and continuous video surveillance under all conditions. Its fixed 4mm focal length lens with a large F1.6 aperture delivers bright and clear images even in low light. With a horizontal viewing angle of 89.1°, the camera covers a wide area without losing detail.
Innovative Full-Color technology provides full-color images even in complete darkness, thanks to white illumination and a highly sensitive CMOS sensor. This allows for 24/7 monitoring without the need for infrared illumination.
The camera's smart functions include human and vehicle classification, motion detection, intrusion detection, line crossing, and detection of abandoned or missing objects. All of these features help reduce false alarms and increase the effectiveness of the security system.
The built-in microphone allows for audio recording within a 5-meter radius. Support for H.265+/H.264 codecs helps save storage space without compromising video quality. The camera features a vandal-resistant metal casing with IP67 and IK10 protection, making it ideal for outdoor installation in conditions of rain, dust, and vandalism.
| Parameter | Value |
|---|---|
| Resolution | 3MP (2304 × 1296) |
| Sensor | 1/2.8” Progressive Scan CMOS |
| Lens | Fixed, 4 mm, F1.6 |
| Viewing Angle | Horizontal: 89.1°, Vertical: 45.1°, Diagonal: 106.9° |
| Minimum Illumination | 0.005 Lux (color), 0 Lux with white illumination |
| Illumination | IR and white light, range up to 30 m |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Frame Rate | Up to 30 fps at 2304×1296 |
| Smart Functions | Human/vehicle classification, motion detection, intrusion detection, etc. |
| Audio | Built-in microphone |
| Protection | IP67 (water and dust resistant), IK10 (vandal-resistant casing) |
| Power | PoE (802.3af/at) or 12V DC |
| Operating Temperature | From -30°C to +60°C |
| Dimensions | 115 × 115 × 86 mm |
