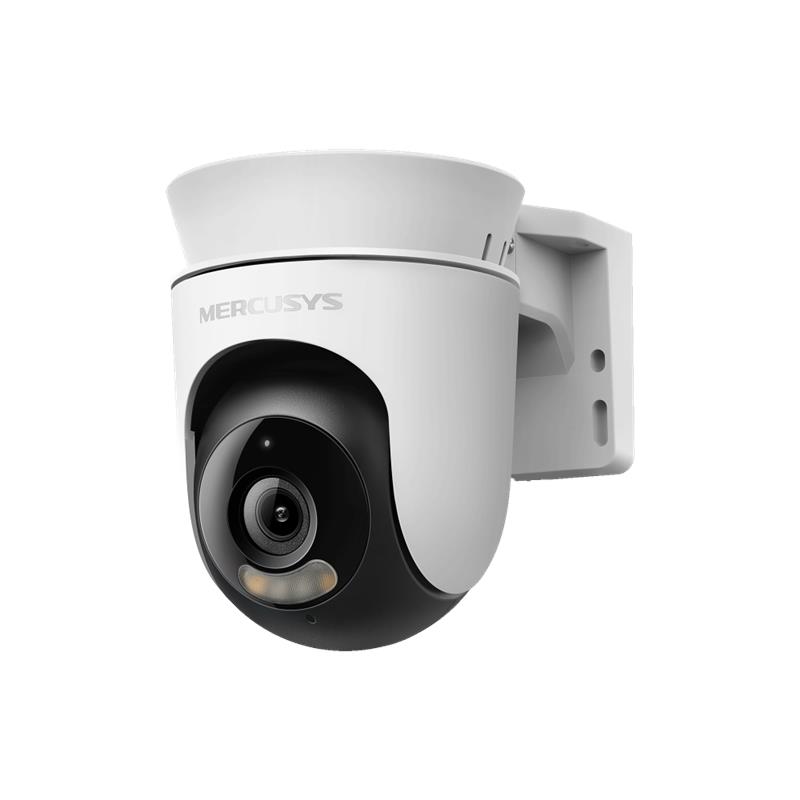

Outdoor Pan/Tilt Wi-Fi Security Camera

1080p Full HD with 360° View — Provides crystal-clear 1080p video and full 360° horizontal coverage to see every corner and every detail.

Smart Motion & Person Tracking — Automatically detects and tracks motion or people, ensuring focus on key activity.

Color Night Vision — Delivers bright, detailed images even at night for 24/7 protection.

Focus on What Matters — Smart person and motion detection combined with customizable activity zones helps filter out irrelevant events and sends notifications only when needed.

Local & Cloud Storage — Supports microSD cards up to 512 GB and cloud storage for secure and flexible video backup.†‡

Weatherproof for Outdoor Use — IP65 rating for reliable operation in rain, dust, or snow. Easily mounts to walls, ceilings, or poles.

Privacy Protection with Lens Cover — Activate the physical lens cover when monitoring is not needed to feel at ease at home.

Image Sensor

1/32'' Progressive Scan CMOS Sensor, Not Starlight Sensor

Lens

Focal Length: 4 mm

Aperture: F2.0

Field of View: 87° (Diagonal), 74° (Horizontal), 40° (Vertical)

Motion Range

Mechanical Pan Range: 340° (360° Pan Coverage)
Mechanical Tilt Range: 90° (130° Tilt Coverage)

Night Vision

850 nm IR LED 29.9 m

Color Night Vision

Interface & Button

1× RESET Button
1× MicroSD Card Slot

Camera

Maximum Resolution

1920× 1080 px

Digital Zoom

Supports 9x Zoom

Frame Rate

15/20/25/30 fps (default 15 fps)

Video Compression

H.264

Live View

Yes

Image Enhancement

3DNR

WDR

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

88 dB (level measured at 10 cm)

Video & Audio

Security

128-bit AES Encryption with SSL/TLS

WPA/WPA2-PSK

SOFTWARE

Local Storage

MicroSD Card (supports up to 512 GB)

Cloud Storage

MERCUSYS Camera Care Cloud Storage Services (subscription required)

Storage

Network Connectivity

WiFi Connection

Wireless Connectivity

11 Mbps (802.11b)
54 Mbps (802.11g)
72.2 Mbps (802.11n)

RTSP

Yes

ONVIF

Yes

Network

Power Source

9V DC Power Adapter

Input Voltage

100–240 VAC, 50/60 Hz, 0.3 A

Output Voltage

9.0 V/0.85 A

Power

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP65

Mounting Options

Ceiling Mount

Pole Mount

Wall Mount

Operating Temperature

-20 ºC–50 ºC

Storage Temperature

-40°C–60°C

Operating Humidity

10–90 % RH, non-condensing

Storage Humidity

0%–90% RH, non-condensing

Dimensions ( W x D x H )

141.5 × 93 × 122 mm

General

AI Detection

Motion Detection
Person Detection

Activity Zones

Yes
*Works only with motion detection

Output Notification

System Notification

Detection & Notifications

Certifications

CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

Package Contents

Outdoor Pan/Tilt Wi-Fi Home Security Camera (MC500) × 1

Power Adapter × 1

Mounting Template Sticker × 1

Mounting Bracket × 1

Mounting Screws × 4

Bracket Screws × 2

Mounting Anchors × 4

Waterproof Foam Gasket × 1

Quick Start Guide
