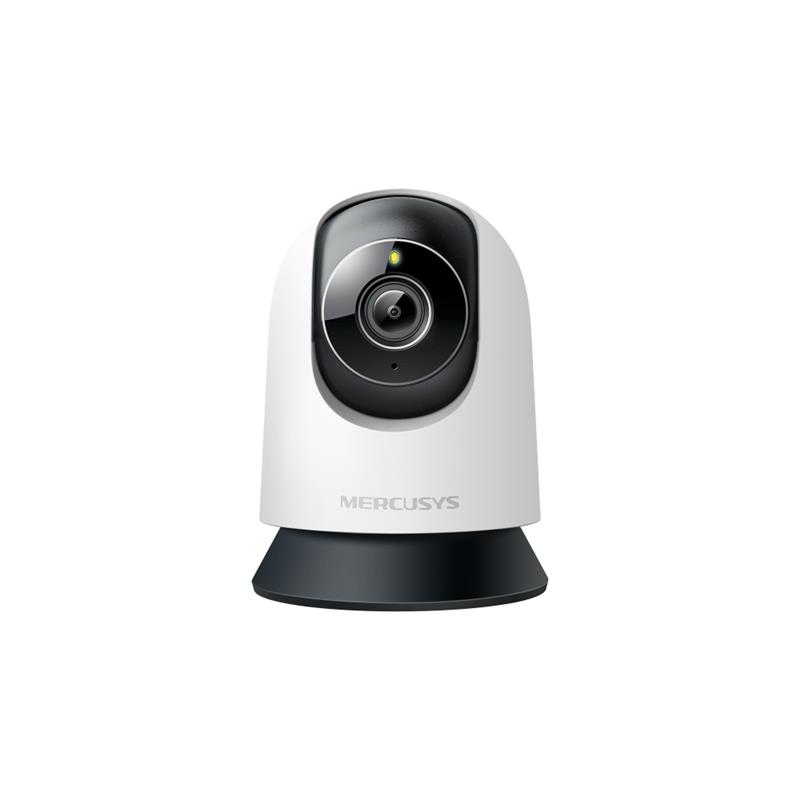

AI Wi-Fi Pan/Tilt Home Security Camera

• 3K HD Clarity: 5MP resolution captures every smile, gesture, and detail with stunning clarity, making your home always feel closer.
• Get Closer with 13.5x Zoom: Zoom in on the MERCUSYS app and focus on small objects or facial expressions—every detail will remain clear.
• 360° Room Coverage: Smooth pan and tilt allow you to see every corner. With auto-patrol and smart motion tracking, no movement goes unnoticed.
• Smarter AI-Based Notifications: Thanks to AI, the camera filters what matters most—recognizing people, pets, vehicles, and unusual sounds like a baby crying or glass breaking.
• App Control & Real-Time Notifications: Stay in control from anywhere with instant notifications that keep you connected to your home at all times.
• Local & Cloud Storage: Supports microSD cards up to 512 GB and cloud storage for secure and flexible video backup. † ‡
• Customizable Block Zone: Set up your privacy zone to easily block unwanted views.
• Voice Control: Compatible with Google Assistant and Amazon Alexa, providing users with hands-free control.

Image Sensor

1/2.7'' Progressive Scan CMOS, no Starlight sensor

Lens

Focal Length: 4mm
Aperture: F2.0
Field of View: 103° (Diagonal), 86° (Horizontal), 46° (Vertical)

Motion Range

Mechanical Pan Range: 340° (360° Pan Coverage)
Mechanical Tilt Range: 70° (116° Tilt Coverage)

Night Vision

850 nm IR LED (12 m)

Interface & Button

1× RESET Button
1× MicroSD Card Slot (up to 512 GB)

Camera

Maximum Resolution

3K 5MP (2880×1620 pixels)

Digital Zoom

Supports 13.5x Zoom

Frame Rate

15/20/25/30 fps (20 fps default)

Video Compression

H.264

Live View

Yes

Image Enhancement

3DNR
BLC

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio

Siren Volume

90 dB (level measured at 10 cm)

Video & Audio

Security

On-device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

SOFTWARE

Local Storage

Micro SD Card Slot
(supports up to 512 GB)

Cloud Storage

MERCUSYS Camera Care Cloud Storage Services (subscription required)

Storage

Network Connectivity

Wi-Fi Connection

Wireless Connectivity

11 Mbps (802.11b)
54 Mbps (802.11g)
72.2 Mbps (802.11n)

Max. Distance Between Hub and Camera/Doorbell

/

RTSP

Yes

ONVIF

Yes

Network

Power Source

9V DC Power Adapter

Input Voltage

100-240VAC, 50/60Hz, 0.3A

Output Voltage

9.0 V/0.6 A

Power

Sensor

/

AI Detection

Motion Detection
Person Detection
Baby Crying Detection
Vehicle Detection
Pet Detection
Meow Detection
Bark Detection
Glass Break Detection

Activity Zones

Yes

Output Notification

System Notifications

Detection & Notifications

Smart Integration

Google Assistant, Amazon Alexa, Samsung SmartThings

Weather Resistance

/

Mounting Options

Tabletop
Ceiling Mounted

Operating Temperature

0 ºC ~ 40 ºC

Storage Temperature

-40°C~60°C

Operating Humidity

10%~90% RH, non-condensing

Storage Humidity

0%~90% RH, non-condensing

Charging Temperature

/

Dimensions ( W x D x H )

78.4 × 78.4 × 105.6 mm

General

Certifications

CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

Package Contents

Pan/Tilt Home Security Wi-Fi Camera (MC230) × 1
Power Adapter × 1
Mounting Anchors × 2
Mounting Screws × 2
Mounting Template Sticker × 1
Quick Start Guide
