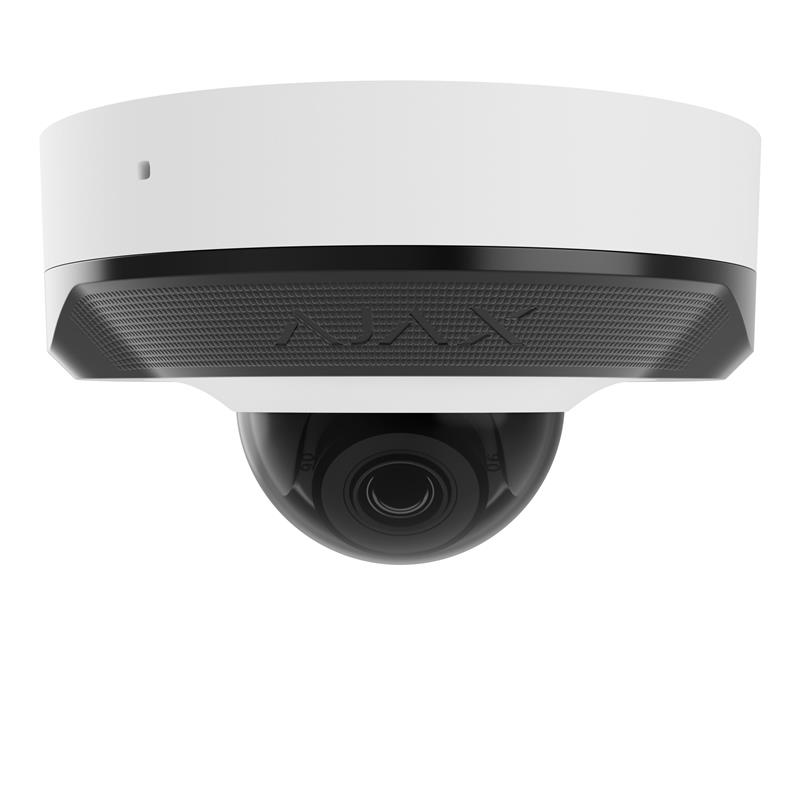

IP Camera Wired Ajax DomeCam Mini, 5MP, 2.8mm, PoE, True WDR, IP65, IR 30m, Audio, Viewing Angle 100° to 110°, Mini Dome, White
DomeCam Mini is an IP camera with object recognition and smart infrared illumination. It allows you to view live and archived video, as well as create video surveillance scenarios.
Key features of DomeCam Mini:
Resolution: 5 or 8 megapixels
Lens: 2.8 or 4 mm
Viewing angle: 100 or 75 degrees
Infrared illumination: 10 meters
Supports microSD cards up to 256 GB
Connecting and using DomeCam Mini:
The camera connects to an Ethernet network via cable.
A hub is required to add the camera to the Ajax system.
For data storage, you can use a microSD card, NVR, or cloud.
DomeCam Mini capabilities:
Live video viewing with zoom capability.
Archived video viewing with timeline and calendar navigation.
Motion detection zone and sensitivity level settings.
Video wall viewing.
Creation of video surveillance scenarios.
Security and privacy:
DomeCam Mini data is transmitted over a secure channel using TLS encryption.
The user can configure video viewing access for other users and the security company.
Choosing an installation location:
When choosing an installation location, consider the camera's viewing angle and the presence of obstacles.
Follow specialists' recommendations for camera placement.
Places where the camera cannot be installed:
Indoors or outdoors with temperatures or humidity outside the operating parameters.
In locations where the camera's view may be obstructed by physical barriers.
Facing bright light or objects.
Here's another rephrasing option:
DomeCam Mini is a small and functional IP camera with object recognition. It allows you to monitor the situation indoors or outdoors at any time of day.
Main advantages of DomeCam Mini:
High image resolution (5 or 8 megapixels)
Wide viewing angle (100 or 75 degrees)
10-meter infrared illumination
Ability to store data on a microSD card, NVR, or cloud
Object recognition function
Video surveillance scenarios
Secure data storage
How to use DomeCam Mini:
Connect the camera to the Ethernet network using a cable.
If you don't have a hub, purchase one.
Add the camera to the Ajax system using the app.
Configure camera settings, such as motion detection zone and sensitivity level.
Start using the camera!
| Brand | Ajax |
| Model | DomeCam Mini (5 MP/2.8 mm) |
| Camera type | IP |
| Ajax line | Baseline |
| Compatibility | Hub, Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Plus, Hub Hybrid (2G), Hub Hybrid (4G) |
| Video transmission technology | IP |
| Form factor | Dome |
| Connection type | Wired |
| Camera resolution (MP) | 5 MP |
| Maximum resolution | 5 MP (2880*1620) |
| Matrix type | CMOS |
| Lens type | Fixed |
| Focal length | 2.8 mm |
| Horizontal viewing angle | 101 to 110 |
| Vertical viewing angle | 100° to 110° |
| Illumination type | Infrared |
| Illumination range | 30 to 50 m |
| Maximum illumination range | 30 m |
| Adaptive illumination | Yes |
| Aperture | Fixed |
| Frame rate | 25 fps |
| SD card slot | Yes |
| Card type and capacity | MicroSD up to 256 GB |
| Video compression format | H.264, H.265 |
| Video protection | JetSparrow - fast and encrypted peer-to-peer video protocol developed by Ajax Systems |
| Built-in microphone | Yes |
| Audio compression format | G222 |
| Wi-Fi support | No |
| PoE (Power over Ethernet) | Yes |
| PoE standard | IEEE 802.3at/ PoE |
| Network interfaces | Ethernet 100 Mbps |
| Smart functions | Yes |
| Smart functions | Human detection, Animal detection, Vehicle recognition |
| Protection degree, vandal resistance | IP65 |
| Operating temperature range | From −25 °C to +40 °C |
| Operating humidity | Not more than 90% |
| Operating voltage | 12 V |
| Consumption | 12 V? ± 20%, 1 A |
| Housing material | Metal |
| Weight | 360 g |
| Dimensions | 113 × 60 mm |
| Color | White |
