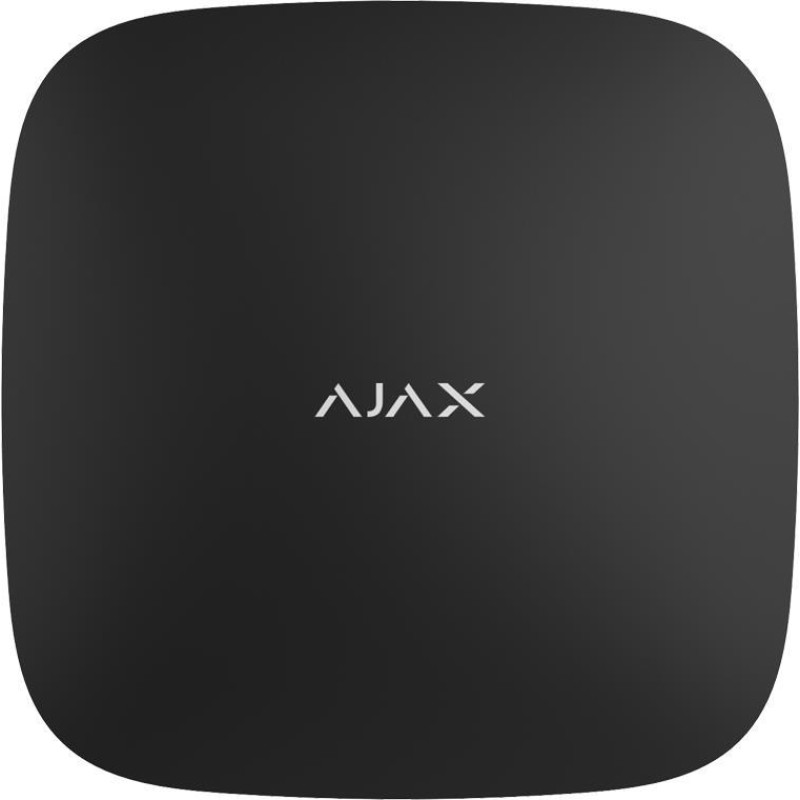

Hub 2 is a new generation of Ajax security system control panels, with support for photo verification in case of alarm. Up to 100 Ajax devices can be connected to Hub 2, including MotionCam motion sensors equipped with cameras. In case of an alarm, they transmit animated series of photos and help security companies react only to real threats. MotionCam motion sensors react not only to real threats but also to household errors. If a nanny returns with children from school and forgets to disarm the alarm, the security system will be obliged to raise an alarm. With Hub 2, you won't have to worry in such situations, and at the same time, pay for useless response team call-outs. Just open the MotionCam sensor alarm notification - and you'll see what happened. Hub 2 is guaranteed to transmit the alarm signal and photos from the protected object via one of three communication channels: Ethernet or two SIM cards. The channels work in parallel and substitute each other in emergency situations.
Hub 2 runs on OS Malevich - a real-time operating system. Such OSs control spacecraft systems, ballistic missiles, and car brakes. That is, equipment that has no right to error.
| Classification | Intelligent security system control panel with support for sensors with photo verification |
| Placement | Indoors |
| Maximum number of devices connected to the hub | 100 |
| Video surveillance | Up to 25 cameras or DVRs |
| Maximum number of users | 50 |
| Maximum number of rooms | 50 |
| Maximum number of groups | 9 |
| MotionCam support | + |
| Communication channels | Ethernet two 2G SIM cards |
| Alarm signal | Delivery time: 0.15 s Message types: SMS, call, push |
| Switching between SIM cards | 4 minutes |
| Communication with the security console | Contact ID, SIA |
| Alarm transmission speed to the security console | Instant |
| Operating system | OS Malevich |
| Power supply | Mains power: 110−240 V Backup battery: Li-Ion, 2 A·h Up to 16 hours of autonomous operation with Ethernet off |
| Jeweller radio protocol | Communication range with sensors — up to 2000 m in open space Two-way communication between devices Operating frequencies — 868.0–868.6 MHz Self-regulating radio signal power — up to 25 mW Block encryption based on AES algorithm Sensor polling period — 12-300 seconds Frequency hopping |
| Wings radio protocol | Transmission of photo series Verification of photo confirmation delivery |
| Operating temperature range | From −10°С to +40°С |
| Dimensions | 163×163×36 mm |
| Weight | 362 g |
| Certification | DSTU EN 50131 |
| Warranty | Exchange and repair within 24 months from the date of sale. Warranty does not cover batteries |
| Package contents | Ajax Hub 2 intelligent control panel SmartBracket mounting panel Power cable Ethernet cable Mounting kit SIM cards (depends on sales region) Manual |
