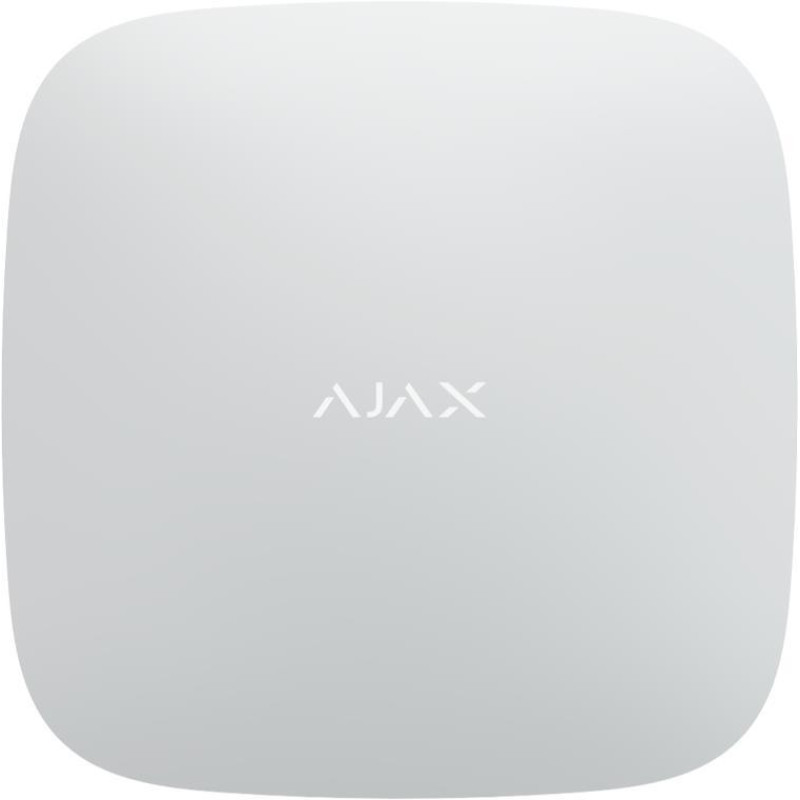

Hub 2 Plus - Security system control panel.
Communication with the outside world is critical for a security system control panel; its reliability and stability guarantee timely alarm transmission. Hub 2 Plus is equipped with a communication module featuring four independent channels and support for high-speed LTE networks. This configuration allows the device to connect to two different internet providers via Ethernet and Wi-Fi, as well as to two cellular networks. At the same time, automatic switching between channels takes seconds.
Photo verification is the future of the security industry. This technology is optimal for both commercial and residential properties — it is accessible and respects people's privacy. Animated series of images from MotionCam motion detectors allow assessing what is happening at the site in dynamics. At the same time, cameras are activated only in case of an alarm. Hub 2 Plus allows connecting 200 MotionCam detectors and delivers photo confirmations of alarms to the security company and users in just 9 seconds, even when connected via SIM (thanks to high-speed LTE network support).
Guaranteed delivery of alarms and photo confirmations
Hub 2 Plus allows creating 64 scenarios and minimizing the impact of the human factor on security. The hub can arm and disarm the security of a site or group on a schedule. Instantly activate a smoke machine if intruders enter the premises. De-energize the premises and turn on emergency lighting in case of fire. Or shut off water in case of a leak. Control lights, electric locks, roller shutters, or garage doors if the security status changes, after a button press, or upon a sensor alarm.
Business centers, factories, and multi-story villas with outbuildings — Hub 2 Plus guarantees the security of the most complex facilities. The new hub controls up to 200 security system devices. Its communication range reaches 2000 meters, and the system's radio network can cover up to 35 km². Hub 2 Plus allows creating 25 security groups and connecting 200 users to divide the site's security into zones and clearly delineate employee access.
Hub 2 Plus is ready to use out of the box. All communication modules, power supply, and backup battery are already installed. To start setting up the system, you need to connect the device to the power grid and the internet, insert SIM cards, and scan the QR code via the application. And thanks to the SmartBracket mounting panel, the device body does not need to be disassembled during installation.
Technical parameters
| Classification | Security system control panel with four standard external communication channels and support for sensors with photo verification |
| Connectable devices | 200 |
| Video surveillance | 100 cameras or DVRs |
| Users | 200 |
| Rooms | 50 |
| Groups | 25 |
| Connectable ReX | 10 |
| Scenarios | 64 |
| MotionCam sensor support | + |
| Mobile applications | iOS 9.1 and higher Android 4.4 and higher |
| Communication channels | 2G (GSM900/DCS1800 (B3/B8)) 3G (WCDMA 850/900/2100 (B1/B5/B8)) LTE (FDD B1/B3/B5/B7/B8/B20) Wi-Fi (802.11 b/g/n) Ethernet |
| Alarm signal | Delivery time: 0.15 s Notification types: SMS, call, push |
| Switching between 2G, 3G, LTE | Instant |
| Switching between SIM cards | 4 minutes |
| Communication with security monitoring station | Compatibility with security monitoring station: Contact ID, SIA Alarm photo confirmations are transmitted to Manitou, ABsistemDC(NG), and SBN security monitoring stations |
| Operating system | OS Malevich |
| Power supply | 110−240 V from mains Built-in backup battery: Li-Ion 3 Ah Up to 15 hours of autonomous operation if Ethernet and Wi-Fi are off Power consumption from mains — 10 W |
| Jeweller radio protocol | Communication range with sensors — up to 2000 m in open space Two-way communication between devices Operating frequencies: 868.0−868.6 MHz Self-regulating radio signal power — up to 25 mW Block encryption based on AES algorithm Sensor polling period — 12−300 seconds Frequency hopping |
| Wings radio protocol | Transmission of photo series Verification of photo confirmation delivery |
| Operating temperature range | From −10°C to +40°C |
| Anti-sabotage | Protection against spoofing Jamming notification Tamper for opening and detachment |
| Remote configuration | + |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 351 g |
| Certification | DSTU EN 50131 |
| Warranty | Exchange and repair within 24 months from the date of sale. Warranty does not cover batteries. |
| Package contents | Ajax Hub 2 Plus control panel SmartBracket mounting panel Power cable Ethernet cable Mounting kit SIM cards (depends on sales region) Manual |
