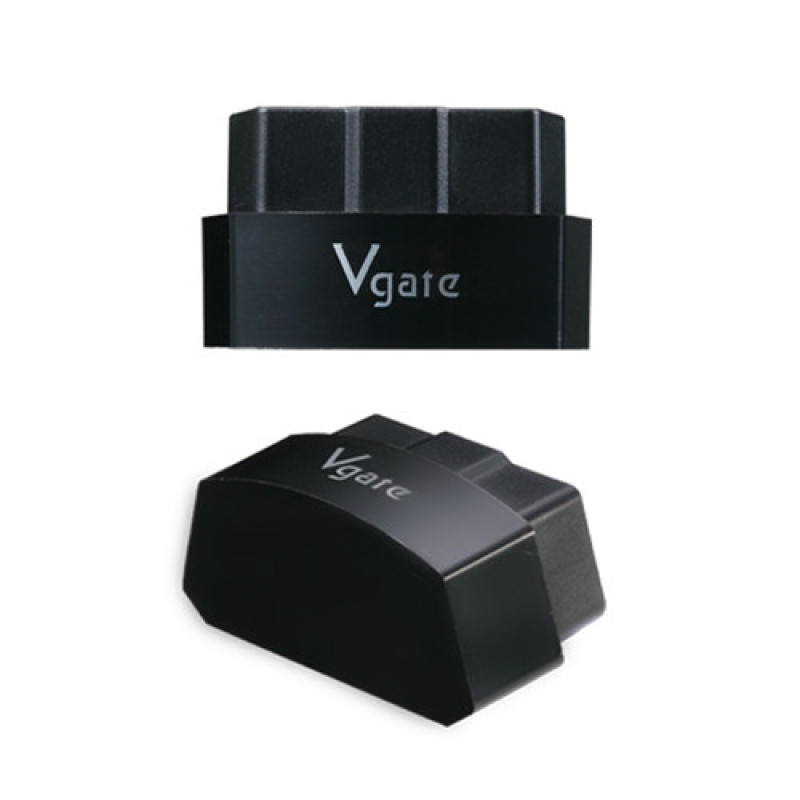

The Vgate iCar 3 ELM327 Wi-Fi micro scanner is the most convenient tool for car diagnostics. Built on reliable and ultra-fast ARM chips, it combines two devices — a diagnostic tool and a trip computer. The Apple-like design and packaging subtly hint not only at compatibility with iPhone 4/4S/5/5C/5S/6/6+ and all iPad models, but also at adherence to the notorious quality standard of Apple devices. The scanner's miniature size and standby mode function mean you'll never need to remove it from the connector.

Allows clearing errors and turning off the MIL.

Reads diagnostic trouble codes (standard and manufacturer-specific) and displays their meanings (database of over 3000 codes).

Displays values for: engine RPM, engine load, coolant temperature, fuel system status, vehicle speed, short-term and long-term fuel trim, absolute air pressure, ignition timing, intake air temperature, mass air flow, throttle position, etc.

Supports all OBDII protocols:

0. Automatic
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A. SAE J1939 CAN (29bit ID, 250* Kbaud)
B. USER1 CAN (11* bit ID, 125* Kbaud)
C. USER2 CAN (11* bit ID, 50* kbaud)

* default settings (user adjustable)

Works with all OBD2 (from 1996 in the USA) and EOBD cars (gasoline from 2001, diesel from 2003/2004 in Europe).

Support for Android, iOS, Windows
Wi-Fi range: up to 20 m
Scanner size: 4.7 x 2.4 x 2.8 cm
Includes software disc and user manual

For reference: for a car to be OBD II compliant, it must have a 16-pin DLC connector under the hood or in the cabin, and the Vehicle Emission Control Information label must state that the car is OBD II compliant.

The scanner color may vary depending on the batch.
