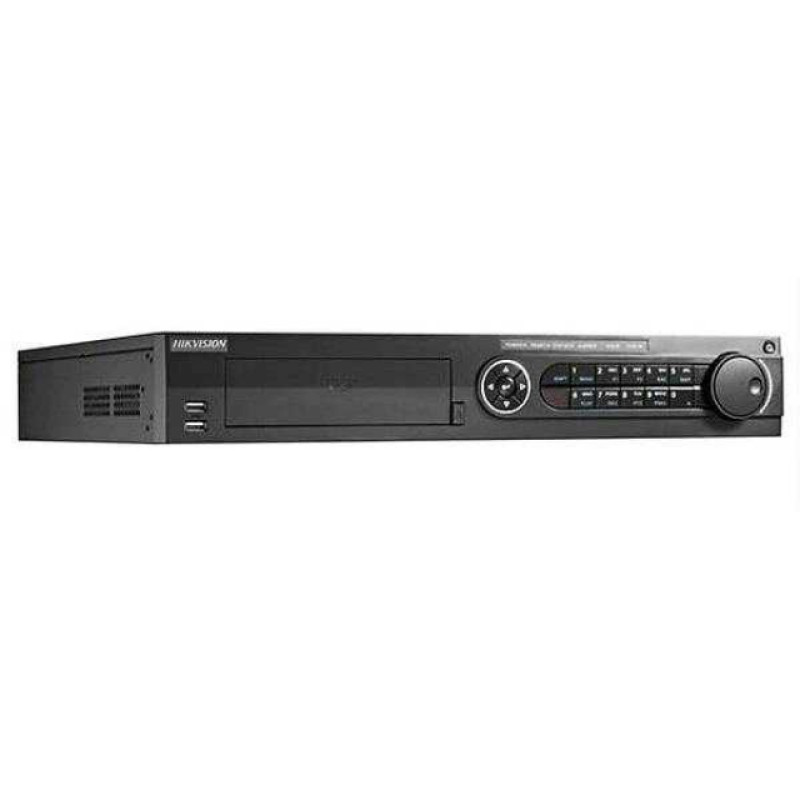

Hikvision DS-7332HGHI-SH. 32-channel Turbo HD DVR
Hikvision DS-7332HGHI-SH. 32-channel Turbo HD DVR

Hikvision DS-7332HGHI-SH. 32-channel Turbo HD DVR

0 Leave a review
Product Code: FA58-36535-58
37 928 грн.
Buy this product in 1 click:
Main specifications
Model: DS-7332HGHI-SH
All specifications
We will deliver this product:
Payment
Description

Hikvision DS-7332HGHI-SH — 32-Channel Turbo HD DVR

Product Description: The professional 32-channel Hikvision DS-7332HGHI-SH Turbo HD DVR is designed for comprehensive video monitoring of objects of various scales — from small businesses to large commercial and industrial sites. The device combines support for analog and network video sources, provides high-quality H.264 compression and stable recording, making it an optimal choice for video surveillance systems with high demands for reliability and compatibility.

Key Advantages

  • Supports 32 channels for extensive area coverage.
  • Compatibility with standards: analog, HD-TV, and IP video (Turbo HD).
  • Efficient H.264 encoding to save storage space while maintaining image quality.
  • Flexible video output options: HDMI and VGA for connecting monitors and video walls.
  • Advanced integration capabilities: RS-485, 3xUSB interfaces, RJ-45 10/100/1000 Mbps network port.

Technical Specifications

ID20156
ModelHikvision DS-7332HGHI-SH
Type32-Channel Turbo HD DVR
Video StandardAnalog and HD-TV + IP
CodecH.264
Recording1080p — up to 12 fps, 720p — up to 25 fps
Audio4 inputs / 1 output
Alarm16 inputs / 3 outputs
Video OutputsHDMI, VGA
InterfacesRS-485, 3 x USB, RJ-45 10/100/1000 Mbps
Storage4 x SATA HDD, total support up to 24 TB
Power SupplyAC 220V, 65 W
Dimensions445 x 390 x 70 mm
BrandHikvision
CategoryElectronics > Video Surveillance > DVRs

This DVR is suitable for systems where simultaneous operation of a large number of cameras, archiving to large-capacity hard drives, and integration with existing alarm systems and PTZ camera control via RS-485 are important. Gigabit network port support allows comfortable work with high-resolution IP cameras, and the presence of three USB ports simplifies backup and connection of external drives.

The Hikvision DS-7332HGHI-SH provides reliable H.264 recording for optimal interaction between video quality and stored data volume: up to 12 frames/s at 1080p resolution and up to 25 frames/s at 720p. Integrated audio and alarm interfaces (4 audio inputs, 1 audio output; 16 alarm inputs, 3 outputs) allow for comprehensive security scenarios with event logging and external notification.

Dimensions of 445x390x70 mm and power consumption of 65 W make the device suitable for installation in server racks or equipment shelves, while providing sufficient thermal margin for stable operation. Support for up to 24 TB on 4 SATA drives allows for storing multi-year archives with an optimally configurable recording scheme.

If you are looking for a reliable solution for large-scale video monitoring with extensive integration and storage capabilities — the Hikvision DS-7332HGHI-SH meets the requirements of modern security and video surveillance systems.
