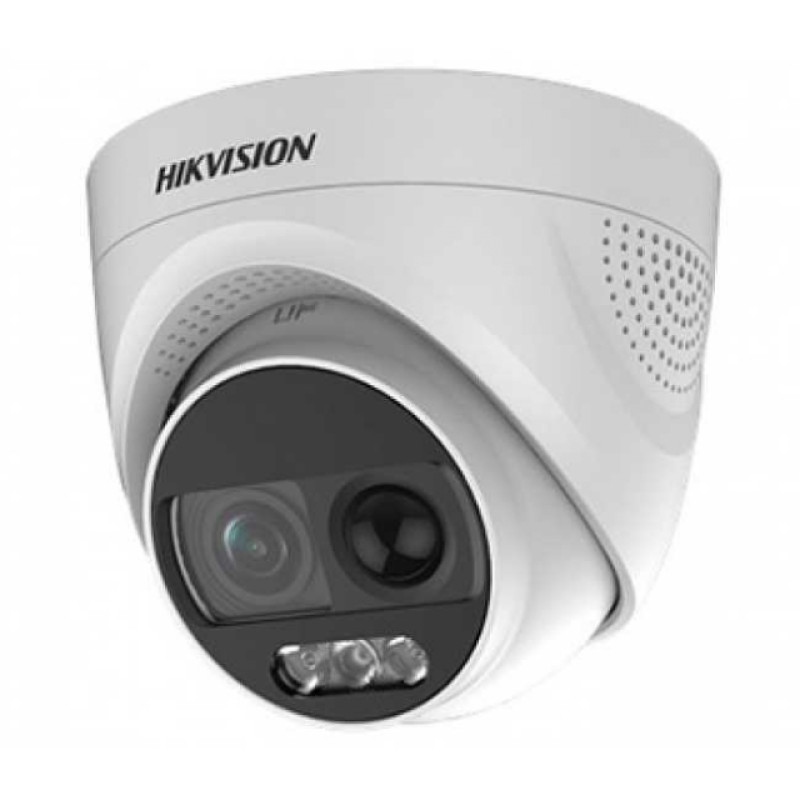

Hikvision DS-2CE72DFT-PIRXOF28 (2.8 mm) — 2MP ColorVu Turbo HD Video Camera with PIR Sensor and Siren
Introducing the multi-format 2 MP ColorVu Turbo HD video camera from Hikvision, model DS-2CE72DFT-PIRXOF28 with a fixed 2.8 mm lens and a wide viewing angle. This camera combines a highly sensitive sensor, bright visible illumination, and built-in alarm systems, making it an ideal solution for 24/7 video surveillance in challenging lighting conditions.
Key Features:
- Resolution: 2 MP (Full HD for clear images).
- Technology: ColorVu Turbo HD for color imaging in low light.
- Format Support: TVI / AHD / CVI / CVBS, multi-format compatibility with various recorders.
- Sensor: CMOS.
- Sensitivity: 0.0005 Lux @ F1.0 (day), 0 Lux with visible light — excellent night performance with illumination.
- Lens: f = 2.8 mm with a 104° viewing angle.
Additional Image Functions: WDR 130 dB for restoring details in high-contrast scenes, BLC and HLC for backlight or strong light compensation, HLS for glare protection.
Alarm System and Protection: Built-in PIR motion sensor with a 110° detection angle and a range of up to 11 meters, siren for local alerts, one alarm output for integration with external alarms.
| Parameter | Value |
|---|---|
| Formats | TVI / AHD / CVI / CVBS |
| Sensor | CMOS |
| Sensitivity | 0.0005 Lux/F1.0 (day), 0 Lux with visible light |
| Lens | 2.8 mm (104° viewing angle) |
| Functions | WDR 130 dB, BLC, HLC, HLS |
| Alarm | 1 output, PIR 110°, up to 11 m, siren |
| Visible Illumination | 20 meters |
| Protection Class | IP67 |
| Power Supply | DC 12V ± 25%, 6.6 W consumption |
| Dimensions | 109.82 x 93.66 mm |
| Weight | 390 g |
The camera is housed in a durable, sealed casing with an IP67 protection rating, allowing it to be installed both indoors and outdoors in any weather conditions. Power is supplied by a DC 12V ±25% source, with a power consumption of approximately 6.6 W, making it economical to use.
The Hikvision DS-2CE72DFT-PIRXOF28 is suitable for perimeter control, entrances, doorways, and other areas where clear imaging in low light and a reliable motion detection system with audible alerts are crucial. Multi-format compatibility ensures easy integration with existing security systems.
