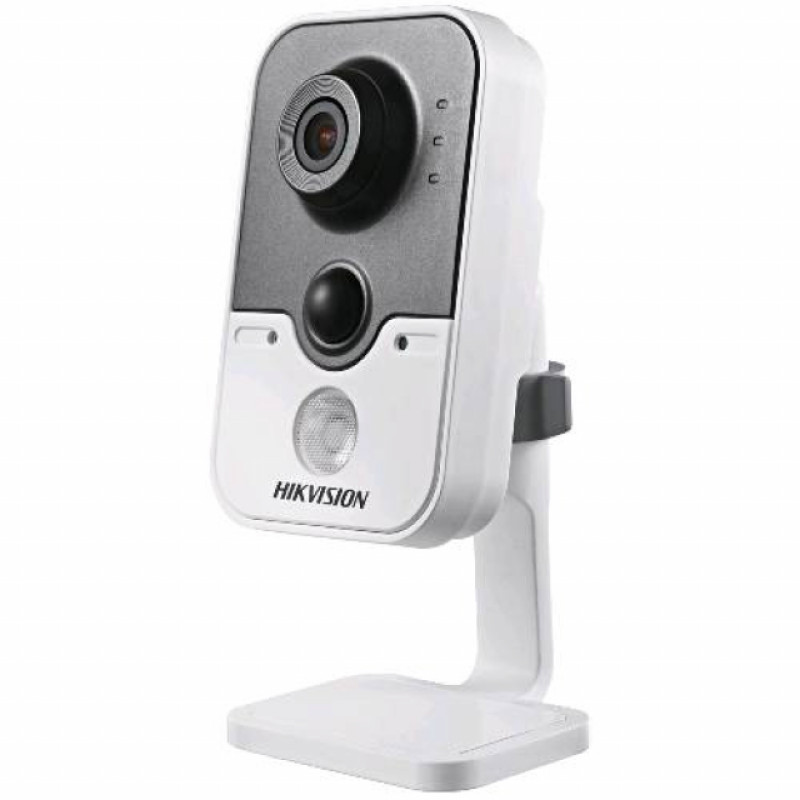

Hikvision DS-2CD2432F-IW (2.8 mm). 3 MP Wi-Fi IP Camera

Hikvision DS-2CD2432F-IW (2.8 mm) — 3 MP Wi-Fi IP Video Camera

Brand: Hikvision. This DS-2CD2432F-IW model is designed for reliable indoor video surveillance, combining high resolution with easy Wi-Fi setup.

The camera provides a high-quality image with 3 MP (2048x1536) resolution and supports day/night mode with a mechanical ICR filter. It uses a 1/3" Progressive Scan CMOS sensor, which provides clear reproduction of moving objects. Supported codecs: H.264 and MJPEG for efficient compression and compatibility with various recording devices.

Optics and Light Sensitivity

Lens: f=2.8 mm. Viewing angles: at 2048x1536 resolution — 86°, at 1920x1080 — 98.5°. Minimum illumination: 0.07 Lux at F1.2, and also capable of operating at 0 Lux with IR illumination (up to 10 m).

Recording and Network Parameters

• Maximum recording speed: 2048x1536 — 12.5 fps; 1080p/720p — 25 fps.
• Bitrate: from 32 kbit to 16 Mbit.
• Connectivity: Wi-Fi, PoE support (802.3af) and DC 12 V power, 5 W consumption.

Functions and Additional Features

Built-in microphone and speaker provide two-way audio. The camera is equipped with a PIR motion sensor for increased alarm accuracy, IR illumination up to 10 meters for night vision, as well as image enhancement technologies: DWDR (wide dynamic range), 3D DNR (digital noise reduction), and BLC (backlight compensation).

Data Storage and Installation

Memory card support: SD/SDHC/SDXC for local recording. Compact body dimensions: 66x91x131 mm, weight — 400 g, allowing the camera to be installed in confined spaces and easily integrated into existing video surveillance systems.

This model is ideal for use in offices, shops, residential premises, and other facilities where high detail and remote access via Wi-Fi are important. PoE provides simple connection without additional power cables, and the presence of built-in audio and a PIR sensor enhances the functionality of the security system.

Brief technical specifications:

• Model: Hikvision DS-2CD2432F-IW (2.8 mm)
• Resolution: 3 MP (2048x1536)
• Sensor: 1/3" Progressive Scan CMOS
• Codecs: H.264, MJPEG
• Lens: f=2.8 mm; viewing angles: 2048x1536 — 86°; 1920x1080 — 98.5°
• Sensitivity: 0.07 Lux/F1.2; 0 Lux with IR
• IR illumination: up to 10 m
• Recording: 2048x1536 — 12.5 fps; 1080p/720p — 25 fps
• Bitrate: 32kbit–16Mbit
• Audio: built-in microphone and speaker
• Sensors: PIR
• Image processing: DWDR, 3D DNR, BLC
• Memory slot: SD/SDHC/SDXC
• Network: Wi-Fi, PoE (802.3af)
• Power: DC 12 V, 5 W
• Dimensions: 66x91x131 mm
• Weight: 400 g

As a professional solution from Hikvision, the DS-2CD2432F-IW combines high video quality with useful features for security and monitoring. If you need a camera with clear detail, night vision, and easy Wi-Fi setup — this model is an excellent choice.
