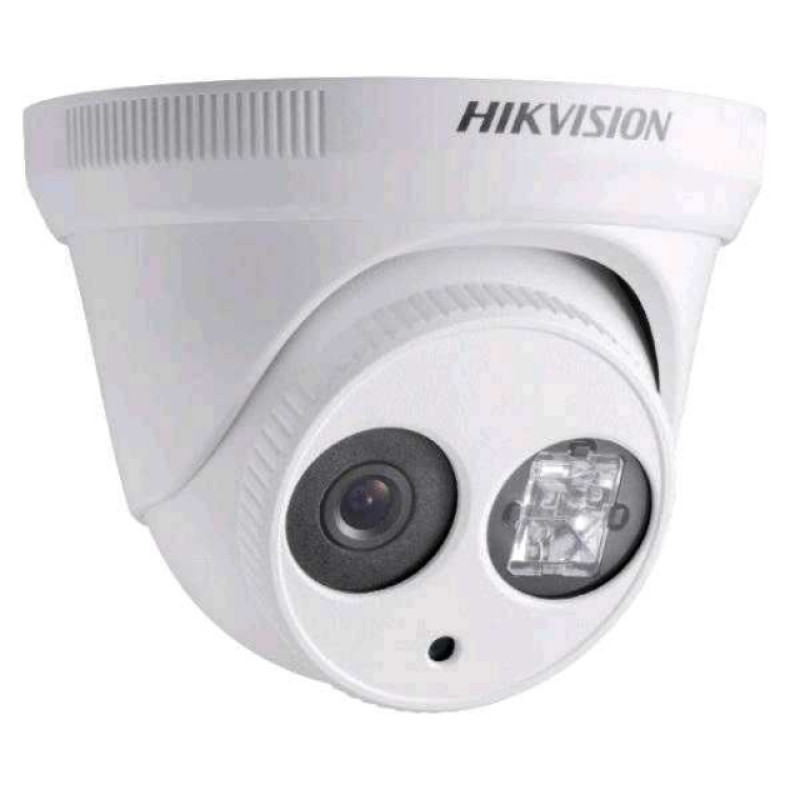

Hikvision DS-2CD2342WD-I (4 mm). 4 MP IP Camera

Hikvision DS-2CD2342WD-I (4mm) — 4 MP IP Video Camera

The professional dome IP video camera Hikvision DS-2CD2342WD-I with 4 MP resolution is designed for reliable 24/7 video surveillance both indoors and outdoors. The model combines a modern 1/3" progressive scan CMOS sensor, day/night technology (ICR), and a wide range of video codecs H.264, H.264+, and MJPEG for economical video storage without loss of quality. The f=4mm lens provides an approximate 83° viewing angle, making the camera versatile for monitoring entrances, corridors, parking lots, and retail areas.

Technical Specifications

• Model: Hikvision DS-2CD2342WD-I (4mm)
• Resolution: 4 MP (2688x1520)
• Sensor: 1/3" progressive scan CMOS
• Day/Night: ICR support (mechanical infrared filter)
• Codecs: H.264 / H.264+ / MJPEG
• Lens: f=4mm, viewing angle ~83°
• Light Sensitivity: 0.01 Lux at F2.0, 0 Lux with IR illumination
• Frame Rate: 2688x1520 — 20 fps; 1080p/720p — 25 fps
• Image Functions: WDR 120 dB, 3D-DNR, BLC
• IR Illumination: up to 30 meters
• Protection: IP66 protected housing, IK08 impact resistance
• Power: 12 V / 5 W or PoE (802.3af)
• Dimensions: Ø127 x 97 mm
• Brand: Hikvision
• Category: Electronics > Video Surveillance > Video Cameras
• Product ID: 19992

Advantages and Applications

This Hikvision camera is suitable for comprehensive video surveillance thanks to its high 4 MP resolution and wide dynamic range WDR 120 dB, which ensures detail in scenes with contrasting lighting. 3D-DNR technology reduces image noise in challenging lighting conditions, and BLC enhances the visibility of objects against bright light sources. The robust IP66-rated protected housing guarantees resistance to atmospheric precipitation, and IK08 ensures resistance to mechanical impacts, making the device suitable for outdoor installation. PoE support simplifies installation by allowing power transmission over an Ethernet cable.

The Hikvision DS-2CD2342WD-I is an optimal choice for commercial and private projects where image quality, reliability, and ease of integration into existing video surveillance systems are important.
