Product Code: FA94-19241-94
In Stock
5 640 грн.
Buy this product in 1 click:
Main specifications
AHD + Analog DVR Operating Mode:
16x5MP
AHD Camera Support:
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 5
Audio Input:
2 (RCA)
Audio Output:
1 (RCA)
Ethernet LAN, Mbit:
10/100
All specifications
We will deliver this product:
Payment
Description
Type - GHD; Supported camera types - AHD, TVI, CVI, Analog CVBS, IP; Number of connectable cameras - 16 pcs; Resolution - 2560x1944; Megapixels - 1, 1.3, 1.4, 2, 2.1, 2.4, 3, 4, 5; Video output - VGA, HDMI (MAX 4K); Processor - 00000; Number of supported HDDs - 1 pc; Maximum HDD capacity - 6 TB; Video compression - H.264, H.265; Audio input - 2 (RCA); Audio output - 1 (RCA); Ethernet LAN - 10/100 Mbit; PTZ camera control - yes; Power supply - 12V 2000 mA; Operating temperature - 0 ~ +55; Housing material - metal.
Specifications
AHD + Analog DVR Operating Mode
16x5MP
AHD Camera Support
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 5
Audio Input
2 (RCA)
Audio Output
1 (RCA)
Ethernet LAN, Mbit
10/100
GHD Camera Support
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 5
Height, mm
45
Housing material
metal
IP Camera Support
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 5
IP NVR Operating Mode
16x1080p, 4x5MP
Kit Contents

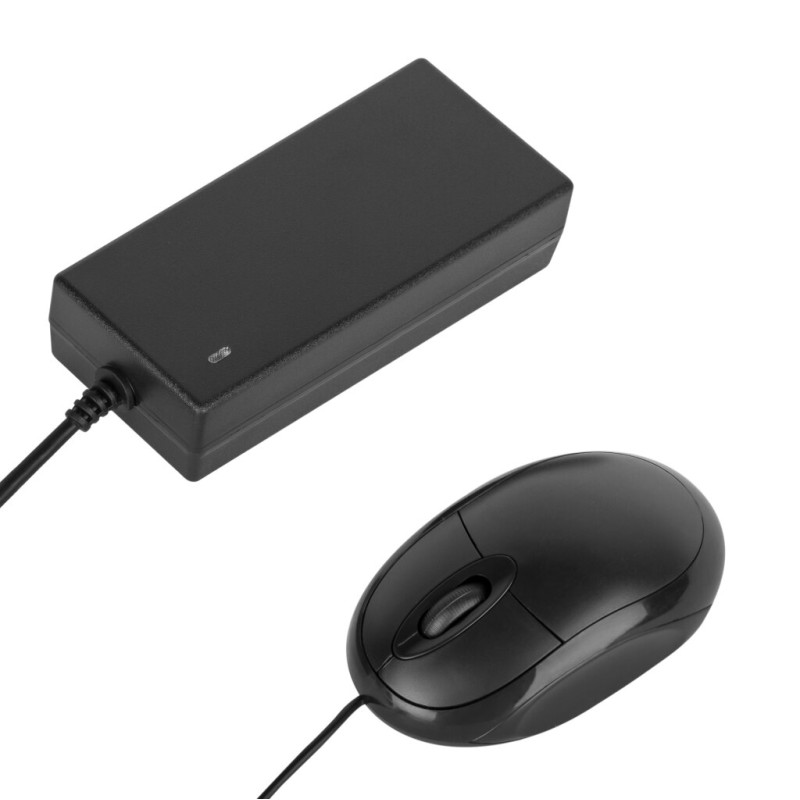

Recorder; Power supply; Power cable; Mouse
Length, mm
255
Max HDD capacity, TB
6
Megapixels, MP
1, 1.3, 1.4, 2, 2.1, 2.4, 3, 4, 5
Number of IP channels
16
Number of supported HDDs
1
Number of USB ports
2
Operating System
Linux
Operating temperature, °C
0 ~ +55
Operation Mode AHD + Analog CVBS + IP HVR
AHD - 16x5MP + IP - 4x1080P
Power consumption, W
15
PTZ Camera Control
is
Resolution
2560x1944
RS485
is
Series
Lite
Type
GHD
Video Compression
H.264, H.265
Video Output
VGA, HDMI (MAX 4K)
Video output CVBS, BNC
no
Video Transmission Technology
AHD, TVI, CVI, Analog CVBS, IP
Volume, m³
0.002754
Warranty, months
12
Weight, kg
0.88
Width, mm
240
Color
black
