Product Code: FA94-19415-94
62 843 грн.
Buy this product in 1 click:
Main specifications
Battery connection type to UPS:
Terminals
Charge current from mains, A:
80
Charge current from panels, A:
80
Efficiency, %:
93
Frequency range, Hz:
50/60±5 (adjustable)
All specifications
We will deliver this product:
Payment
Description

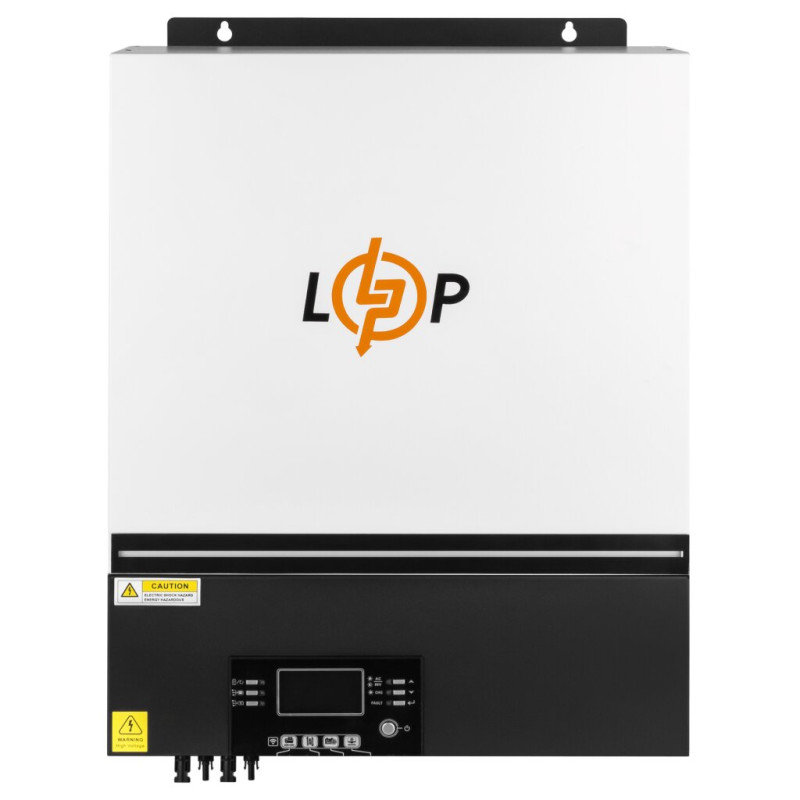

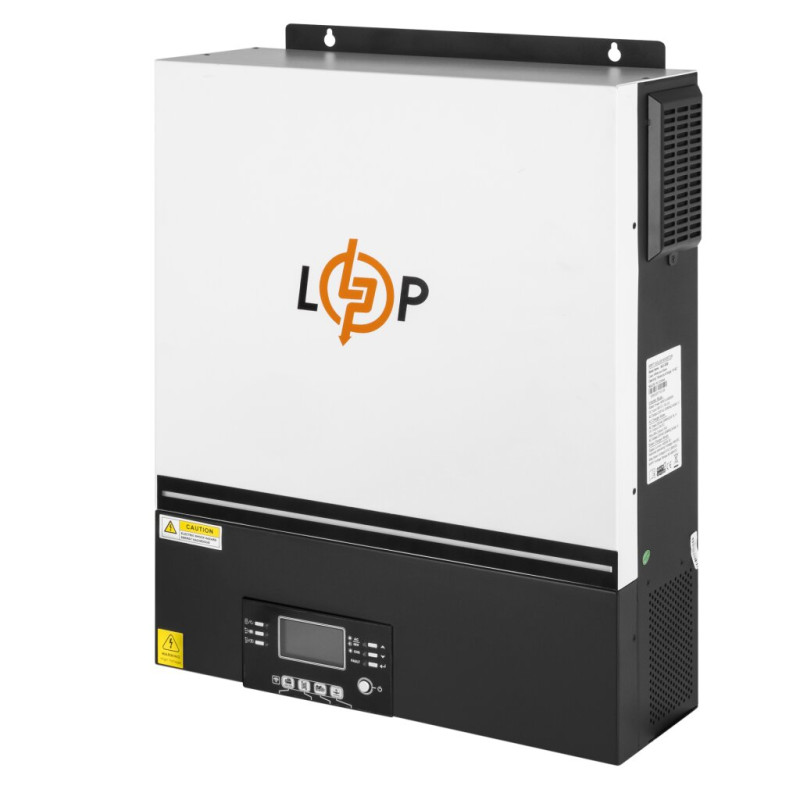

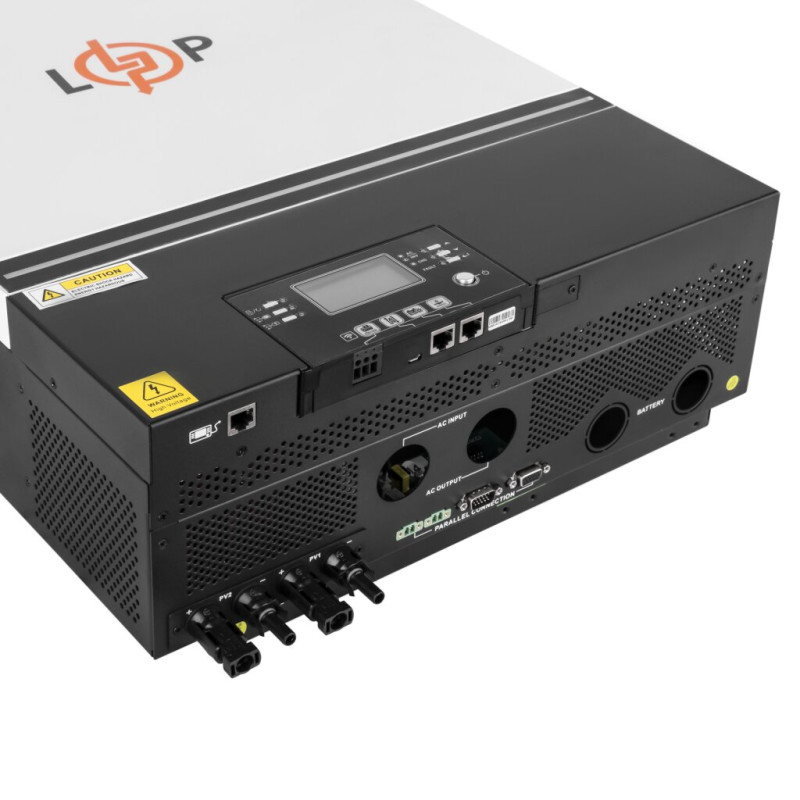

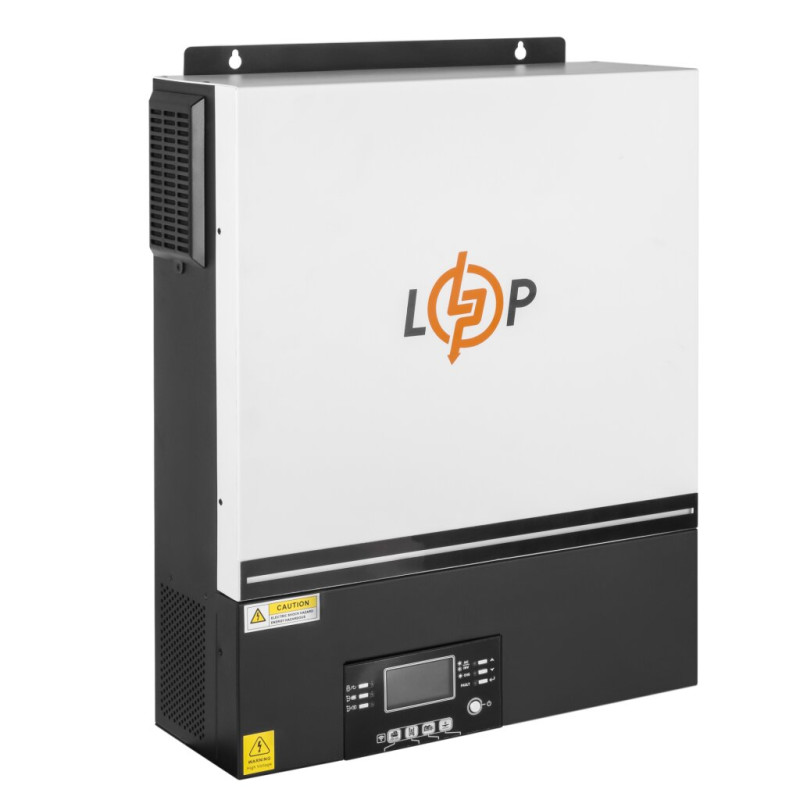

The LPW-HY-MAX hybrid uninterruptible power supply with pure sine wave output and MPPT controller is a multifunctional device designed primarily to provide uninterrupted power to various facilities (home, office, or small business). This UPS model also features autonomous power supply capabilities.
The LPW-HY-MAX hybrid UPS/UPS model offers optimal technical characteristics and allows charging of batteries from both the main grid and alternative power sources (solar energy, wind generator).
Specifications
Battery connection type to UPS
Terminals
Charge current from mains, A
80
Charge current from panels, A
80
Efficiency, %
93
Frequency range, Hz
50/60±5 (adjustable)
Height, mm
555
Housing material
metal
Indication type
LED + LCD
Input voltage range, V
170-280
Input Voltage Waveform
pure sine wave
Length, mm
440
Max input voltage from panels, V
500
Max MPPT Voltage (DC), V
450
Max. charge current (AC+PV), A
120
Maximum input current of MPPT controller (DC), A
18A*2MPPT
Maximum panel power, W
8000
MPPT voltage range, V
90-450
Network Connection Type
Terminals
Nominal battery voltage, V
48
Nominal Charge Current (AC+PV), A
80
Nominal input voltage (AC), V
230
Nominal input voltage from panels, V
320
Number of MPPT trackers, pcs
2
Number of Outputs
1
Number of Phases
1
Operating temperature, °C
-10 ~ +50
Output voltage waveform
pure sine wave
Output voltage, V
230±5%
Panel connection type to UPS
Terminals
PC connection interface
microUSB, RS232, RS485, Wi-Fi, Dry contacts
Power (no load), W
< 70
Power, VA/W
8000/8000
Power, W
8000
Protection
against short circuit, voltage surges, overload, discharge, battery overcharge
Switching time, ms
15
Type
hybrid MPPT with pure sine wave
Type of UPS load connection
Terminals
Volume, m³
0.09947
Warranty, months
24
Weight, kg
21.55
Width, mm
150
