Product Code: FA94-19414-94
20 349 грн.
Buy this product in 1 click:
Main specifications
Battery connection type to UPS:
Terminals
Charge current from mains, A:
60
Charge current from panels, A:
80
Frequency range, Hz:
50/60±5 (adjustable)
Height, mm:
130
All specifications
We will deliver this product:
Payment
Description

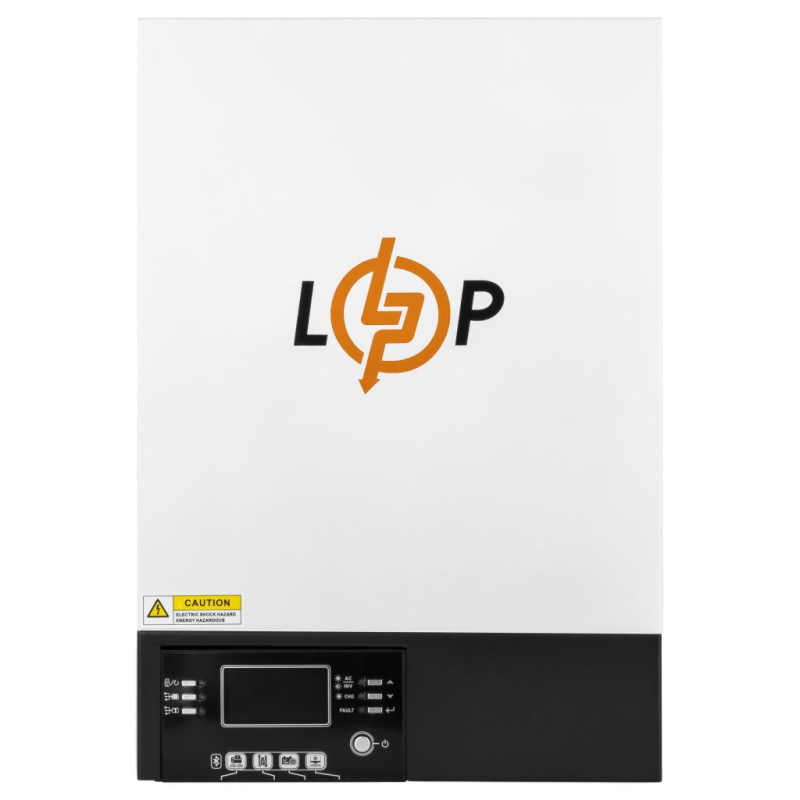

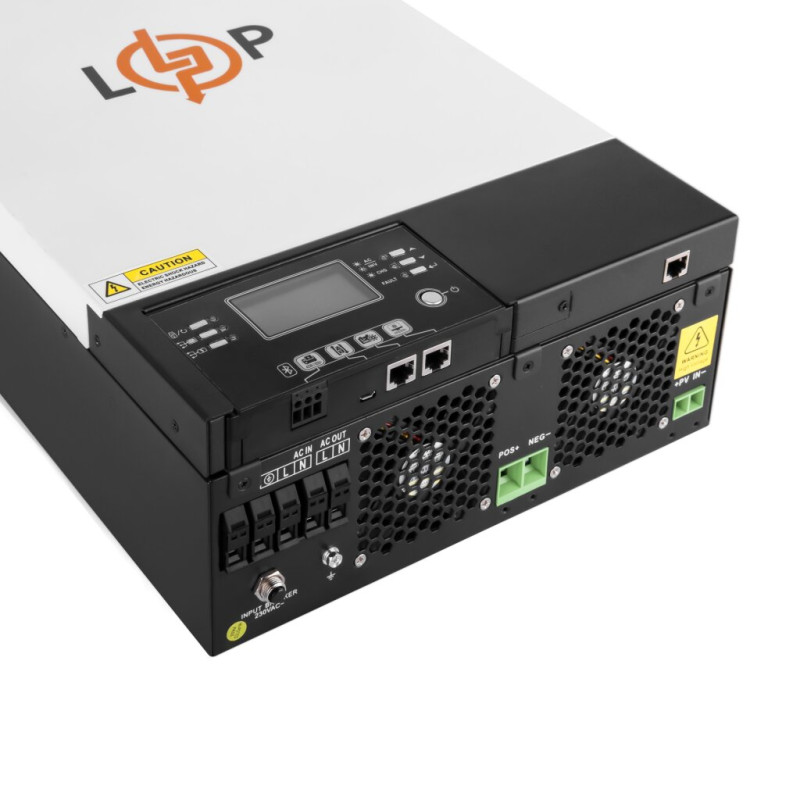

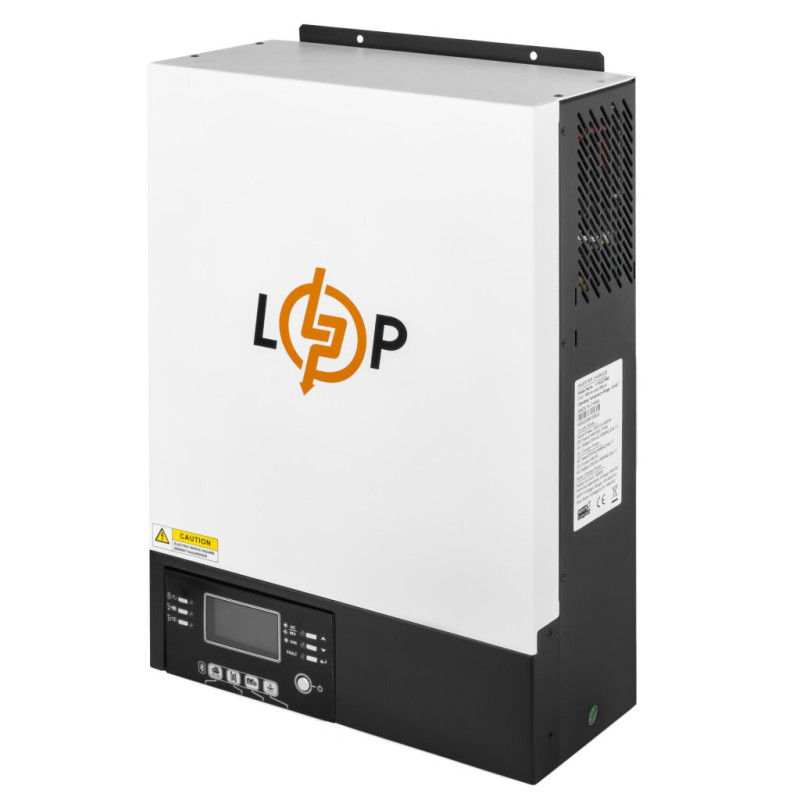

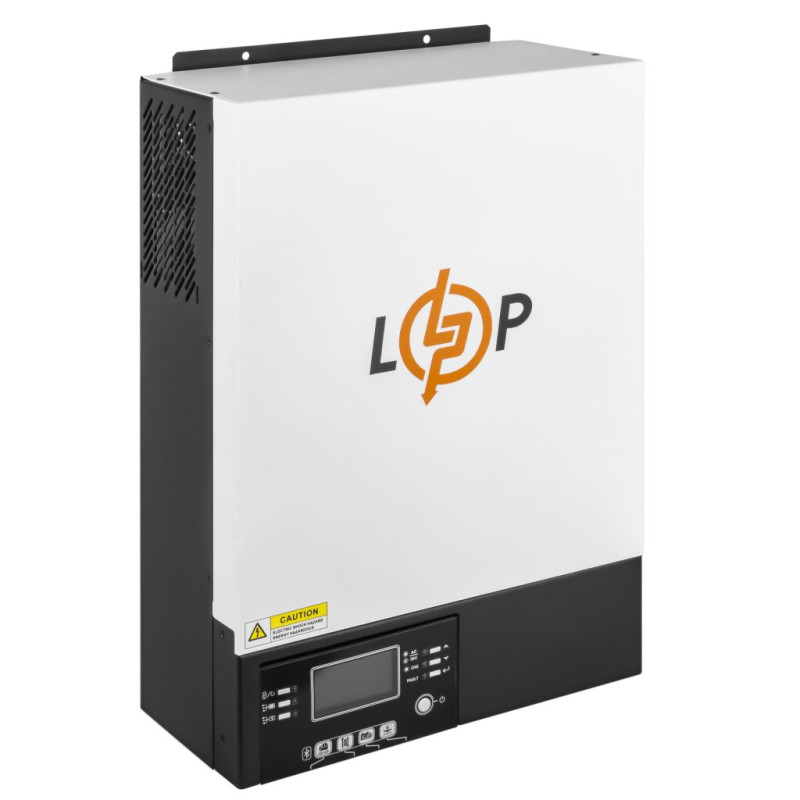

The LPW-HY-5032 hybrid uninterruptible power supply with pure sine wave output and MPPT controller is a multifunctional device, primarily designed to provide uninterrupted power to various facilities (home, office, or small business). This UPS, presented in the catalog, also features autonomous power supply functionality.
The LPW-HY-5032 hybrid UPS model boasts optimal technical specifications and allows charging of batteries from both the main grid and alternative power sources (solar energy, wind generator).
Specifications
Battery connection type to UPS
Terminals
Charge current from mains, A
60
Charge current from panels, A
80
Frequency range, Hz
50/60±5 (adjustable)
Height, mm
130
Housing material
metal
Indication type
LED + LCD
Input Voltage Waveform
pure sine wave
Length, mm
440
Max input voltage from panels, V
500
Max MPPT Voltage (DC), V
500
Max. charge current (AC+PV), A
80
Maximum input current of MPPT controller (DC), A
18
Maximum panel power, W
5000
MPPT voltage range, V
120-450
Network Connection Type
Terminals
Nominal battery voltage, V
48
Nominal Charge Current (AC+PV), A
60
Nominal input voltage (AC), V
230
Nominal input voltage from panels, V
320
Number of MPPT trackers, pcs
1
Number of Outputs
1
Number of Phases
1
Operating temperature, °C
-10 ~ +50
Output voltage waveform
pure sine wave
Output voltage, V
220/230/240 (set)
Panel connection type to UPS
Terminals
PC connection interface
microUSB, RS232, RS485, Dry contacts
Power, VA/W
5000/5000
Power, W
5000
Protection
against short circuit, voltage surges, overload, discharge, battery overcharge
Switching time, ms
10
Type
hybrid MPPT with pure sine wave
Type of UPS load connection
Terminals
Volume, m³
0.04832
Warranty, months
24
Weight, kg
10
Width, mm
300
Color
white, black
