Hybrid Inverter V-TAC 8KW SUN-8K-SG04LP3-EU

Brand: V-TAC. Category: Energy Independence > Inverters. This V-TAC 8KW SUN-8K-SG04LP3-EU hybrid inverter combines modern energy management features, high reliability, and flexible power source connectivity.

Key Features and Capabilities

The main unique feature of the inverter is a DC/AC ratio of 1.3, which allows for efficient use of photovoltaic generation together with energy storage. The device supports charging and discharging currents up to 240 A, can operate in island mode, and automatically adjusts the amount of electricity supplied to the grid in the range from 0 to the inverter's maximum power.

• In off-grid mode, peak instantaneous power reaches twice the inverter's power for 10 seconds.
• An independent backup port is available for connecting an additional load without the need for a separate ATS device.

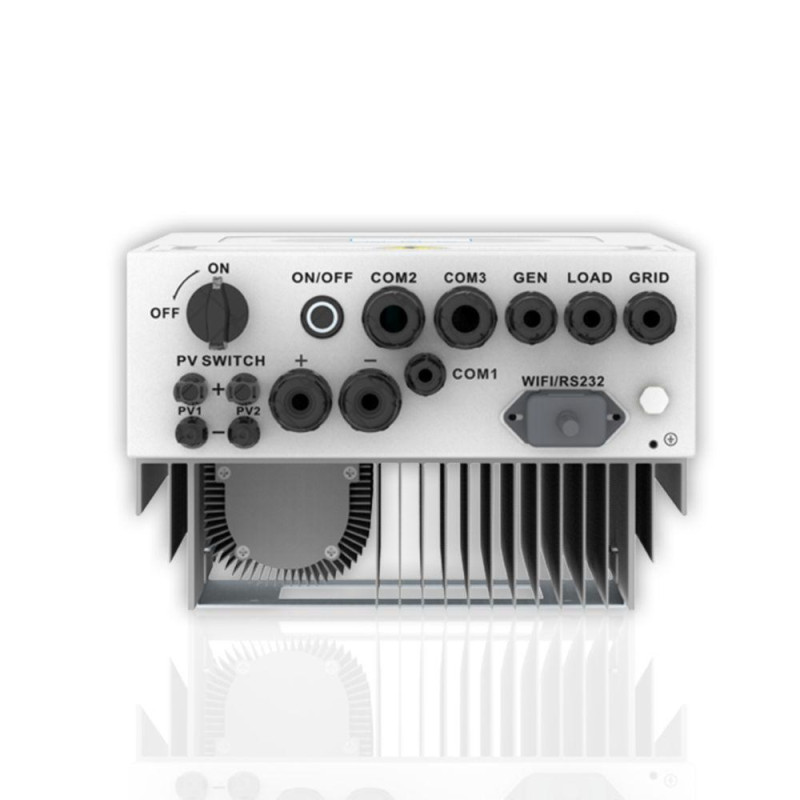

• The built-in generator port allows the generator to charge the battery and enables automatic 24/7 system operation.
• Support for wind turbine connection and two methods for expanding an existing AC photovoltaic system into an energy storage system.
• Ability to connect up to 16 three-phase devices in parallel.
• "Time of Use" function with the ability to configure 6 different periods for battery charging and discharging.

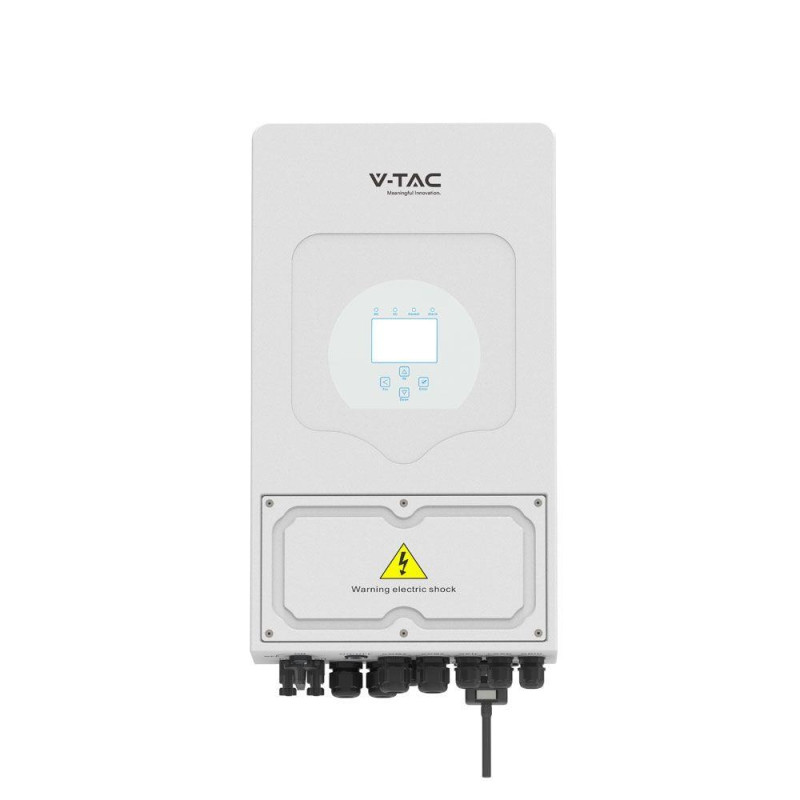

The inverter is equipped with an advanced voltage drop monitoring system for stable operation and system reliability. A color touchscreen is provided for convenient setup and control. An integrated protective circuit breaker enhances operational safety.

Compatibility, Package Contents, and Emergency Power Transfer Speed

The DEYE V-TAC SUN-8K-SG04LP3-EU supports connection to any low-voltage battery. The package includes transformers, a temperature sensor, a mounting kit, and a Wi-Fi module for remote monitoring. The inverter does not require Smart Meter installation and automatically switches to emergency power in 0.4 seconds. The continuous load per phase is 5 kW. The device is compatible with DEYE and SOLARMAN mobile and web applications for convenient system monitoring and management.

This inverter is ideal for private homes, small commercial facilities, and systems where flexible integration of a generator, wind power, and batteries is required to ensure uninterrupted power supply and optimize grid feed-in.
