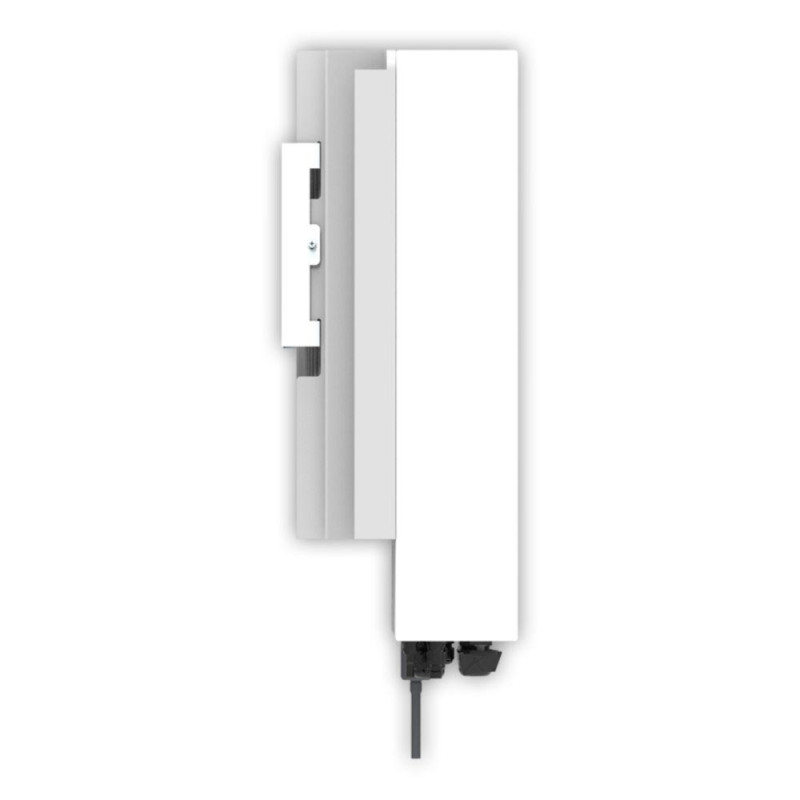

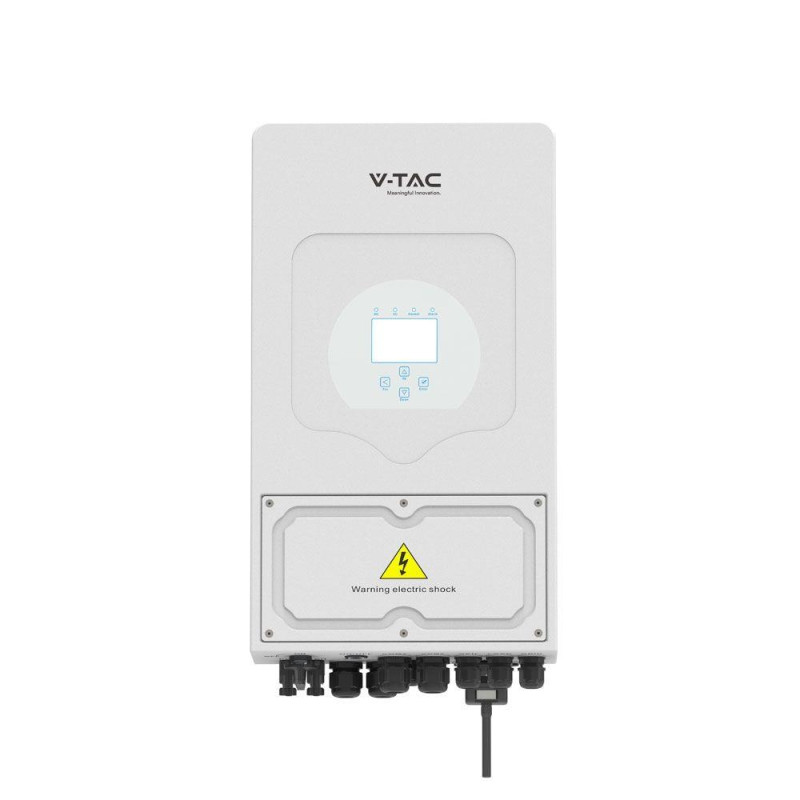

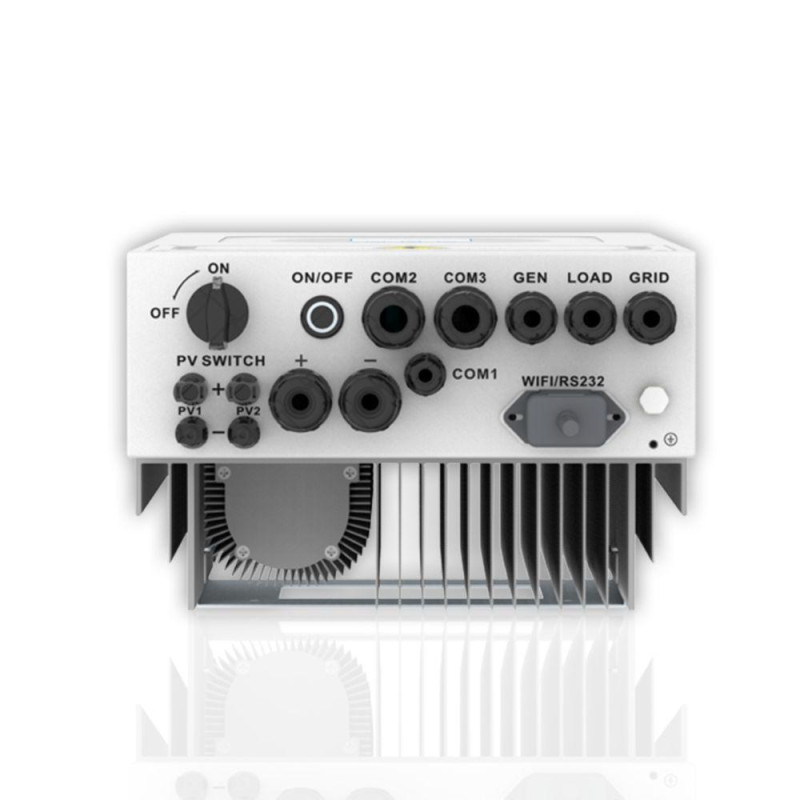

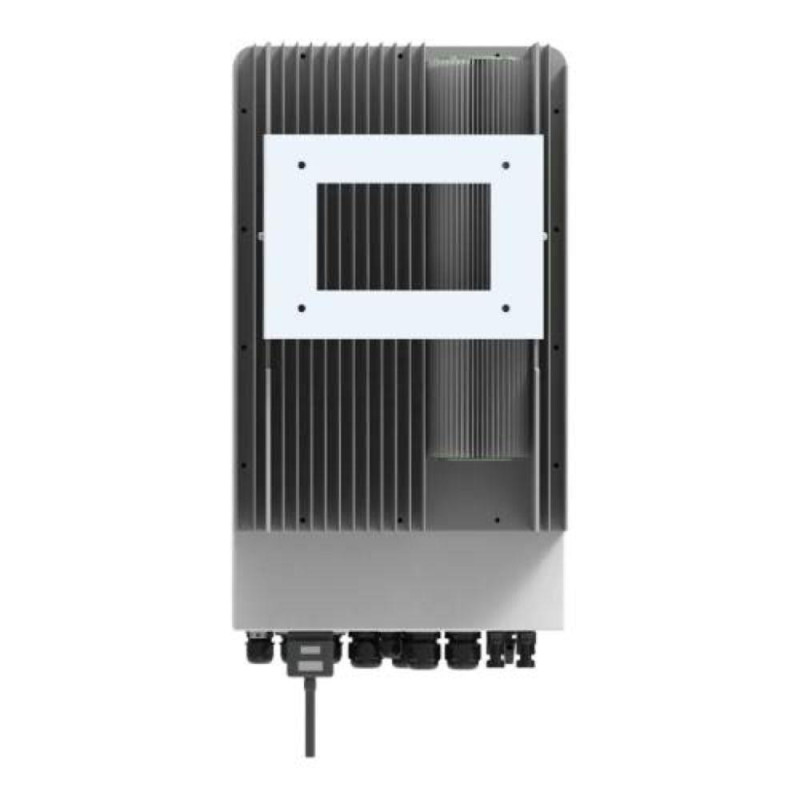

Hybrid Inverter V-TAC 3.6KW SUN-3.6K-SG03LP1-EU

Manufacturer: V-TAC. Category: Energy Independence > Inverters. This SUN-3.6K-SG03LP1-EU hybrid inverter combines high technical specifications and ease of operation, designed for private homes, small businesses, and facilities with autonomous power requirements.

Key Features:

• DC/AC ratio of 1.3 ensures optimal operation of solar panels in conjunction with energy storage.
• Supports charging and discharging current up to 240A for fast and efficient battery operation.
• Capable of off-grid (standalone) operation; peak instantaneous power in off-grid mode is twice the inverter's nominal power for 10 seconds.
• Adjustable power feed to the grid from 0 to the inverter's maximum power for flexible energy export control.

Backup Power and Hybrid Capabilities: The inverter has an independent backup port for connecting additional loads without the need for an extra ATS device, saving equipment costs. The built-in generator port allows the generator to recharge the battery and ensures automatic 24/7 system operation without manual intervention.

SUN series devices support wind turbine connection and provide two methods for expanding existing AC systems to energy storage systems. Parallel connection of up to 16 three-phase devices allows for power scaling for large facilities.

Smart Management and Safety: The "Time of Use" function allows setting up to 6 different periods for efficient battery charging and discharging planning based on tariffs or consumer requirements. An advanced voltage drop monitoring system enhances operational stability and reliability, while a color touchscreen provides convenient control and maintenance. The built-in protective circuit breaker increases the safety level of system operation.

Compatibility and Completeness: The inverter is compatible with any low-voltage battery. The kit includes transformers, a temperature sensor, a mounting kit, and a Wi-Fi module for remote monitoring. The device does not require Smart Meter installation and automatically switches to emergency power in 0.4 seconds, ensuring continuous operation of critical loads.

The continuous load per phase is 5 kW. For convenient monitoring and management, the inverter is compatible with DEYE and SOLARMAN mobile applications.

The V-TAC 3.6KW SUN-3.6K-SG03LP1-EU hybrid inverter is a comprehensive solution for those seeking a reliable inverter with extensive scalability, backup, and intelligent energy management capabilities.
