V-TAC DEYE 10KW 380VAC Hybrid Inverter — Overview

The V-TAC DEYE 10KW 380VAC Hybrid Inverter from V-TAC combines intelligent energy management capabilities with reliability for commercial and residential systems. The device is designed for use in the Energy Independence > Inverters category and is suitable for both hybrid photovoltaic systems and off-grid projects. The inverter supports operation in grid-tied and off-grid modes, ensuring flexibility and stable power supply.

Key Features

The inverter boasts a unique DC/AC ratio of 1.3, allowing for efficient use of photovoltaic arrays. Support for charging and discharging currents up to 240 A ensures fast battery charging and high output during discharge. In off-grid mode, the peak instantaneous power can reach twice the inverter's nominal power for 10 seconds, which is useful when starting powerful loads such as compressors or motors.

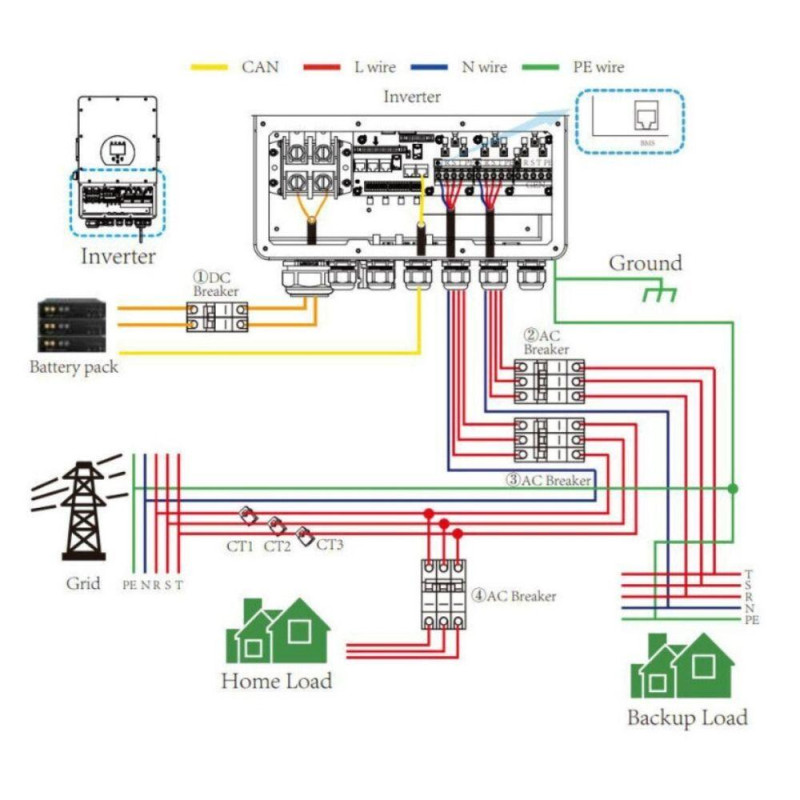

The inverter is equipped with an independent backup port for connecting an additional load without the need for an external ATS device, which reduces cost and simplifies installation. The built-in generator port allows the generator to charge the battery automatically, ensuring 24/7 system operation without manual intervention.

Expansion and Compatibility

The device supports wind turbine connection and provides two methods for expanding an existing AC photovoltaic system into an energy storage system. Parallel connection of up to 16 three-phase devices is supported, allowing the solution to be scaled for large facilities. The "Time-of-use" function allows setting 6 different periods for battery charging and discharging, optimizing electricity costs and the use of stored energy during peak hours.

Safety and Management

The DEYE V-TAC features an advanced voltage drop monitoring system, a color touchscreen for easy setup and parameter tracking, and a built-in circuit breaker for enhanced operational safety. The inverter supports connection to any low-voltage battery and comes with transformers, a temperature sensor, a mounting kit, and a Wi-Fi module for remote monitoring.

The device does not require a Smart Meter installation and automatically switches to backup power in 0.4 seconds, ensuring uninterrupted power to critical loads. The continuous load per phase is 5 kW, and compatibility with DEYE and SOLARMAN mobile applications allows monitoring performance and managing the system from a smartphone.

This inverter is an excellent solution for those seeking a reliable, scalable, and multifunctional device for ensuring energy independence for a home or business. Manufacturer: V-TAC. Product type: Energy Independence > Inverters.
