A mini 12kW solar power plant for a dacha or home can provide:

• electrical equipment with autonomous electricity during daylight hours;

• backup power for household and computer equipment in case of prolonged emergency power outages.

Why is a "turnkey" solar power plant an effective replacement for fuel generators and other backup power sources?

• The system does not require additional maintenance and does not need fuel, as the sun is an inexhaustible source of electricity;

• The solar power plant equipment connects to the power grid of an apartment/house/office. Switching to backup power mode does not require much time or effort;

• Convenient system for monitoring operating parameters;

• Long-term operation of equipment without repair or maintenance;

• Ability to offset utility costs by consuming electricity from solar panels during daylight hours.

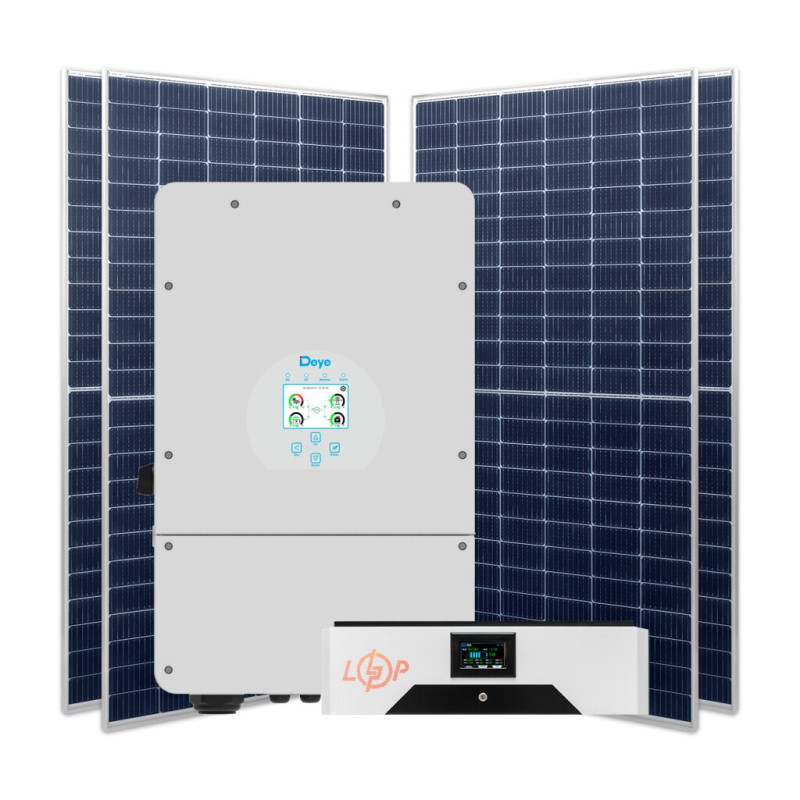

12kW Solar Power Plant - Included:

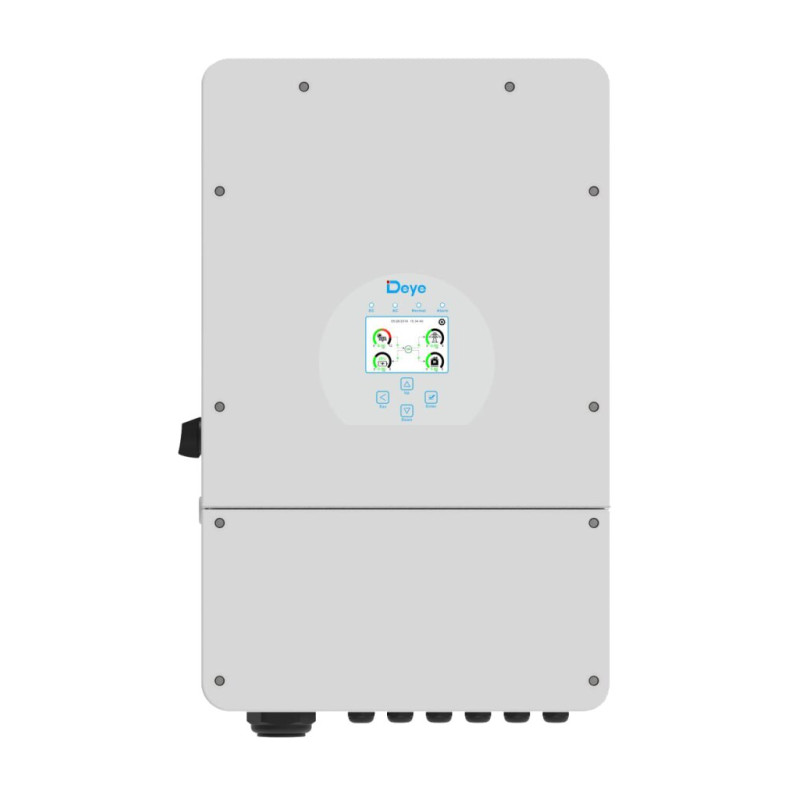

• DEYE for LP Hybrid Single-Phase Inverter SUN-12K-SG02LP1-EU-AM3 - 1 pc.

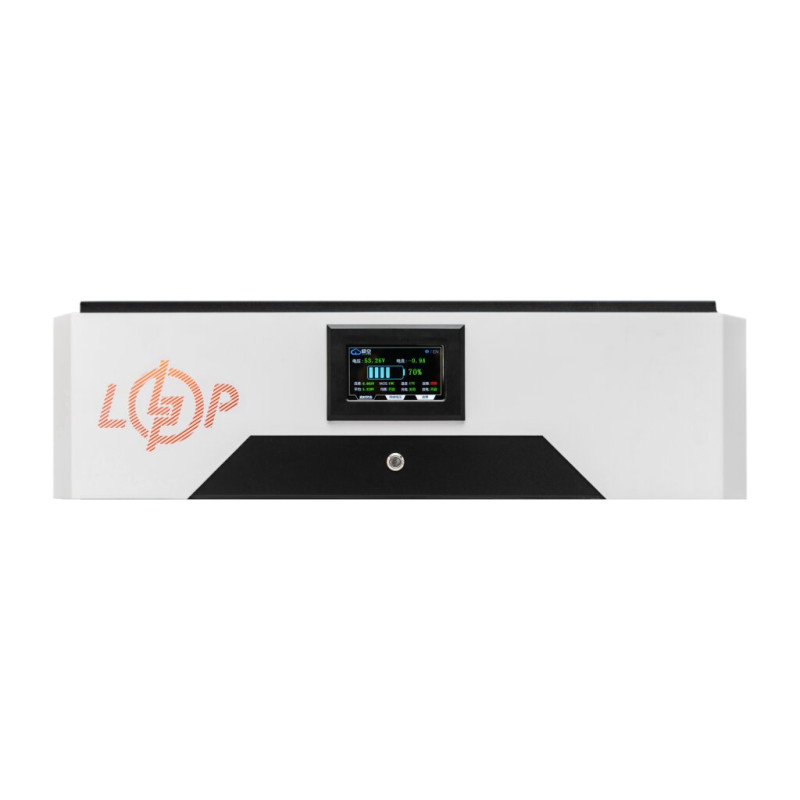

• LP LiFePO4 Battery 51.2V - 304 Ah (15565Wh) (BMS 200A/200A) metal F LCD Smart BT - 1 pc.

• LP Longi Solar Half-Cell 580W Bifacial Monocrystalline Solar Panel (30 profile, TOPCon N-type Bi-facial) - 26 pcs.

• Z Solar Guide Profile 41x41x1.5 mm - 78 m.

• C Solar Profile Connector 41x41x1.5 mm - 39 pcs.

• Cylindrical Head Screw with Internal Hex M8-16 - 64 pcs.

• Flange Nut Serrated M8 - 64 pcs.

• Inter-module Clamp for Solar Panel Mounting 35 mm P - 56 pcs.

• End Clamp for Solar Panel Mounting 30 mm. - 8 pcs.

• Cylindrical Head Screw with Internal Hex M8-35 - 64 pcs.

• Mounting Nut M8 with Retainer for Solar Panel Mounting - 64 pcs.

• Copper Wire for Battery Connection 25 sq. mm – 100 cm (with terminals) red - 1 pc.

• Copper Wire for Battery Connection 25 sq. mm – 100 cm (with terminals) black - 1 pc.

• Cable for Solar Power Plants H1Z2Z2-K 1*4 30 m black (male/female) - 2 pcs.

• Cable for Solar Power Plants H1Z2Z2-K 1*4 30 m red (female/male) - 2 pcs.

• Wooden Box with Lid for Solar Power Plant - 1 pc.

• Double Connector Splitter T-branch MC4 (pair) - 10 pcs.

• 1690890 ETI Disconnector KVL 00 1P 160A (Terminals M8-M8) - 1 pc.

• 4110084 ETI Fuse NH-00 Battery 160A 80V DC - 1 pc.

Solar Power Plant: Kit for Ukraine, How is the Price Formed?

The cost of a solar power plant kit for a home depends on the type of battery.

12kW "Premium" category "turnkey" solar power plants include an assembly of lithium iron phosphate batteries (LiFePO4).

Alternative Energy Sources for Home: Advantages of Using LiFePO4 Batteries

• Lifepo4 has 7000 charge-discharge cycles. You won't have to think about replacing the battery for at least 10 years.

• A lithium iron phosphate battery will take no more than 2 hours to fully charge. In addition, the battery has no "memory effect", meaning the battery can be charged at any time without waiting for a full discharge.

• The capacity loss in lithium iron phosphate batteries is about 20% when stored for more than 10 years. In addition, this type of battery can remain in a discharged state for a long time without serious consequences for further operation.

Can I install a home solar power plant myself?

The solar photo modules included in the kit are fully ready for self-assembly. You do not need to install additional solar panel protection.

We recommend placing solar panels in areas with plenty of sunlight. Avoid shadows from trees or buildings falling on the working surface of the photocells.

Solar panels can be mounted on the roof, on the ground, and on special welded structures. When installing photo modules, orient them to the south.

The mounting of the supporting structures for solar panels is carried out using appropriate fasteners on aluminum frames. Mounting holes are provided on the back of the frames.

Observe polarity when connecting all DC electrical connections. Carefully check the polarity of solar panels and batteries with a tester before installation.

For safe operation of the solar power plant, install grounding for the mounting structures, casing, and inverter.
