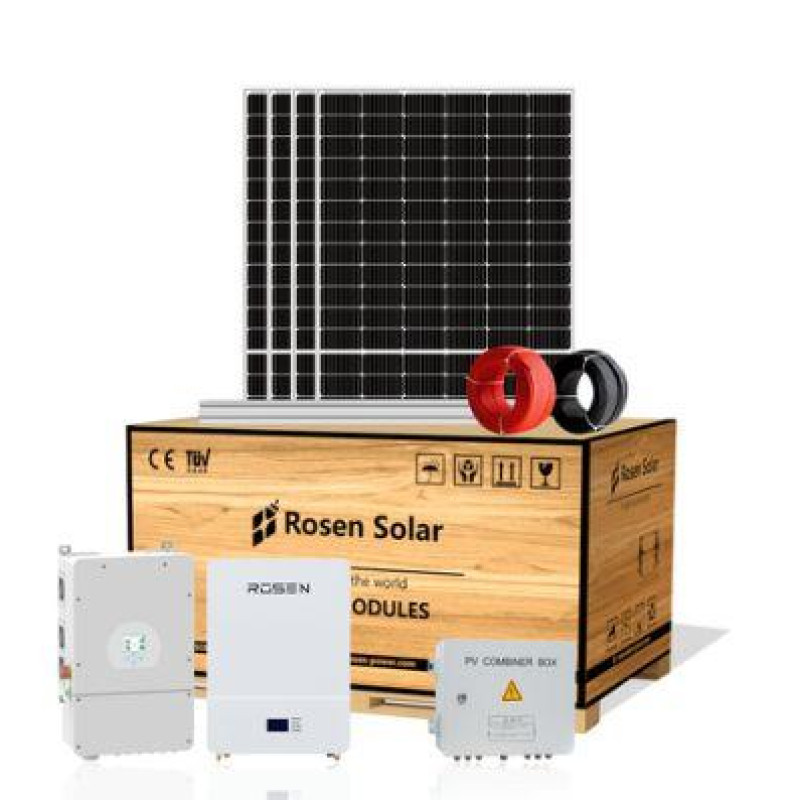

3 kW Hybrid Alternative Solar Energy System

We offer a ready-to-use 3 kW hybrid energy independence system from the Rosen brand, designed for autonomous power supply to small homes, dachas, offices, or auxiliary buildings. The system combines efficient solar panels, a reliable hybrid inverter, a LiFePo4 battery, and all necessary components for installation and connection.

Solar Panels (6 pcs)

• Monocrystalline panels: Rosen Solar Mono Cells
• Color: black
• Type: half-cut panels, 560 W power (each)
• Increased PID resistance, high corrosion resistance to salt and ammonia

Hybrid Inverter (1 pc)

• Battery type: compatible with lithium-ion or lead-acid batteries (user's choice)
• Nominal battery voltage: 48 V / 100 A·h
• Nominal/maximum output power: 5000 W / 5500 W
• Maximum input current: 22 A
• Output voltage waveform: high-quality pure sine wave
• Warranty: 1 year

Battery (1 pc)

• Cell type: 3.2 V 50 A·h, Prismatic, LiFePo4
• Nominal capacity: 100 A·h / 4.8 kW·h
• Battery voltage: 40.5 V
• Number of charge cycles to 80% at 25℃: up to 6000 cycles
• Service life at 25℃: up to 10 years

Panel Mounting System (1 pc)

The delivery set includes an aluminum profile mounting system for solar panels on a pitched roof, which ensures strong and durable module fixation.

Grid Block (1 pc)

The set includes a grid block for integrating the system with the power grid or organizing backup power.

Additional Components

• PV cable: 4 mm, length 100 m
• Connection connectors: 6 pcs

General Information

General Information: The specification is adapted for a 48 V 100 A·h battery and includes technical characteristics, dimensions, operating requirements, and usage warnings.

Electrical Characteristics and Test Conditions

Test Conditions: ambient temperature 25±5℃; relative humidity 45%–75%. Normal charge: CC (0.5C) / CV (54 V) mode until overcharge protection is triggered, or until fully charged when the charging current decreases to 0.05C, after which charging stops for 1 hour.

Battery Protection and Management

Circuit Protection: The batteries are equipped with a LiFePo4 Battery Management System (BMS) that monitors each prismatic cell during charging and discharging, protects against overcharge, over-discharge, and short circuits, ensuring safe and optimal battery operation.

This hybrid system from Rosen is ideal for those seeking energy independence, combining high efficiency solar modules, a durable LiFePo4 battery, and reliable control electronics.
