10 kW Hybrid Solar Energy System — Rosen

Introducing a ready-made 10 kW hybrid energy independence system from Rosen, designed for stable and secure power supply to a home or commercial facility. This system combines high-efficiency solar panels, a hybrid inverter, a LiFePO4 battery, and all necessary components for installation and connection.

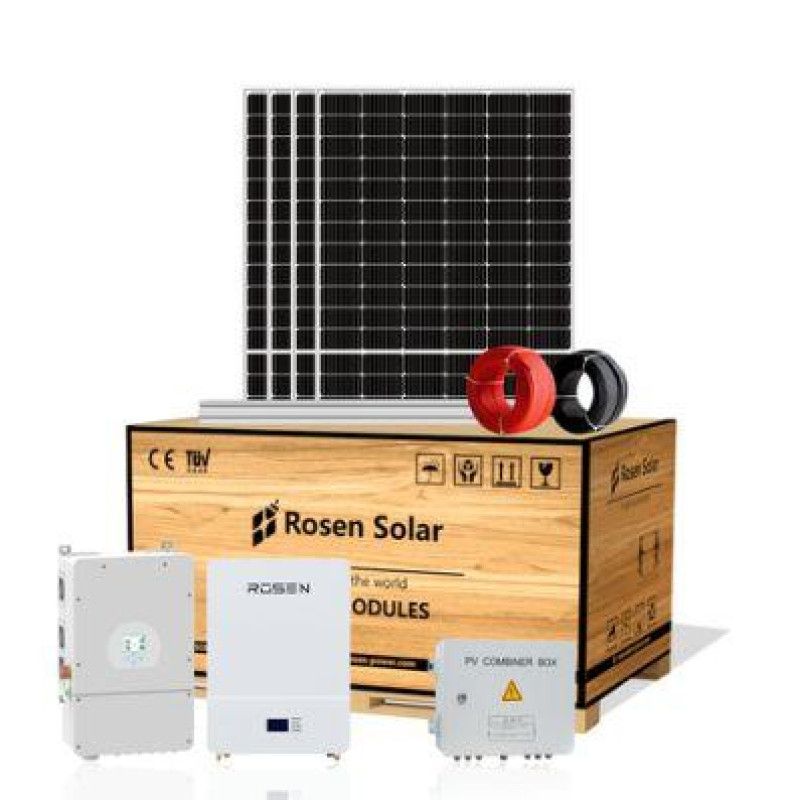

Package Contents

• Solar Panels — 6 pcs: Rosen Solar Mono Cells monocrystalline panels, black, half-cut panels with 560 W each. Characterized by PID resistance and increased resistance to salt and ammonia.
• Hybrid Inverter — 1 pc: supports lithium-ion or lead-acid batteries (user-defined). Nominal battery voltage: 48 V / 100 Ah. Nominal/maximum output power: 5000 W / 5500 W. Maximum input current: 22 A. Delivers high-quality pure sine wave AC. Inverter warranty: 1 year.
• Battery — 1 pc: prismatic LiFePo4 battery with 3.2 V 50 Ah cells. Nominal capacity: 100 Ah (4.8 kWh). Battery voltage: 40.5 V. Number of charge cycles to 80% at 25°C — up to 6000 cycles. Estimated service life at 25°C — 10 years.
• Panel Mounting System — 1 pc: mounting kit for pitched roof made of aluminum profile.
• Grid Block — 1 pc.
• PV Cable: 4 mm, length 100 m.
• Connection Connectors — 6 pcs.

General Information

The specification is suitable for a 48 V 100 Ah battery and describes its dimensions, characteristics, technical requirements, and precautions for use. The system provides autonomous operation, grid connection, and the ability for the user to choose the battery type depending on needs.

Electrical Characteristics and Test Conditions

Test conditions: ambient temperature 25±5°C; humidity 45%–75%. Normal charge mode: charge the battery in CC (0.5C) / CV (54V) mode until overcharge protection is triggered, or until fully charged when the current decreases to 0.05C; after this, the system shuts down for 1 hour.

Battery Protection and Management

The batteries come with a built-in LiFePo4 Battery Management System (BMS) that monitors and optimizes the operation of each prismatic cell during charging and discharging. The BMS provides protection against overcharge, over-discharge, and short circuit, ensuring safe and reliable operation throughout the battery's service life.

System Advantages

• High generation thanks to 560 W half-cut monocrystalline panels.
• Reliable inverter with pure sine wave and the ability to connect different battery types.
• Long LiFePo4 battery life: up to 6000 cycles and up to 10 years of service.
• Mounting kit and cables for quick installation and connection.

This 10 kW hybrid system from Rosen — is an ideal solution for those seeking a balance between performance, durability, and operational safety. For additional technical questions or to order the kit, please contact our consultants.
