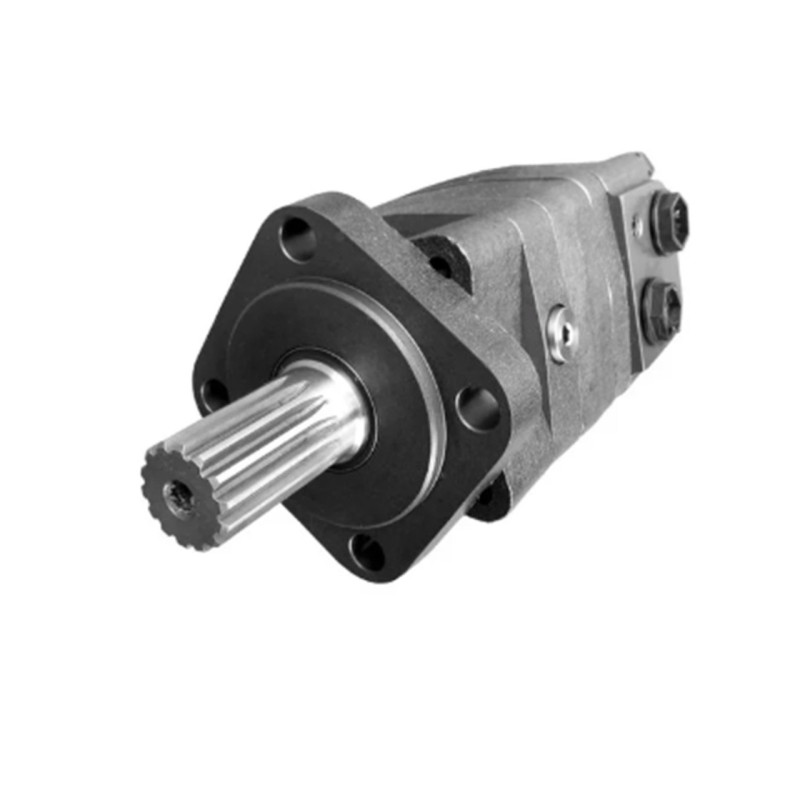

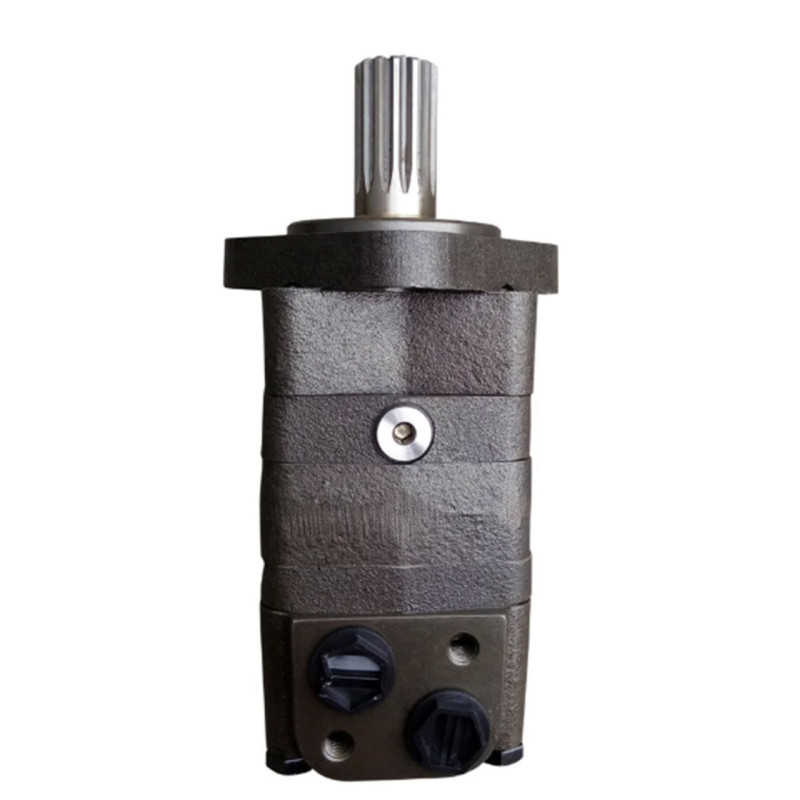

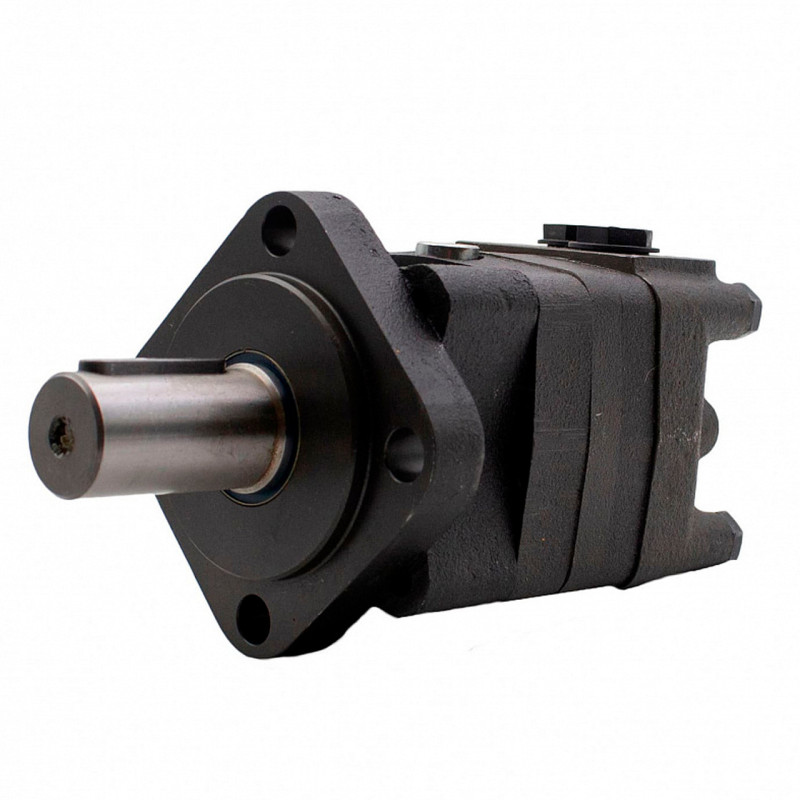

Gerotor Hydraulic Motor MS 80SH M+S Hydraulic

The MS 80SH hydraulic motor from M+S Hydraulic (Bulgaria) is a reliable and durable unit designed for operation under high loads. This gerotor hydraulic motor has a displacement of 80.5 cm³/rev and a maximum operating power of 15.5 kW, making it an ideal solution for low-speed geared applications. The MS series design features side-mounted main ports with BSP threads, ensuring convenient connection to existing hydraulic systems. The hydraulic motor is distinguished by its ability to operate stably under continuous high load, using liquid lubricant, and frequent changes in rotation direction.

About the Manufacturer and Brand

The MS 80SH model is manufactured by M+S Hydraulic (Bulgaria). Supplier/brand in the product card: Hidros. The combination of European manufacturing quality and brand experience guarantees long-term operation and high reliability in various application areas.

Shaft and Seals:

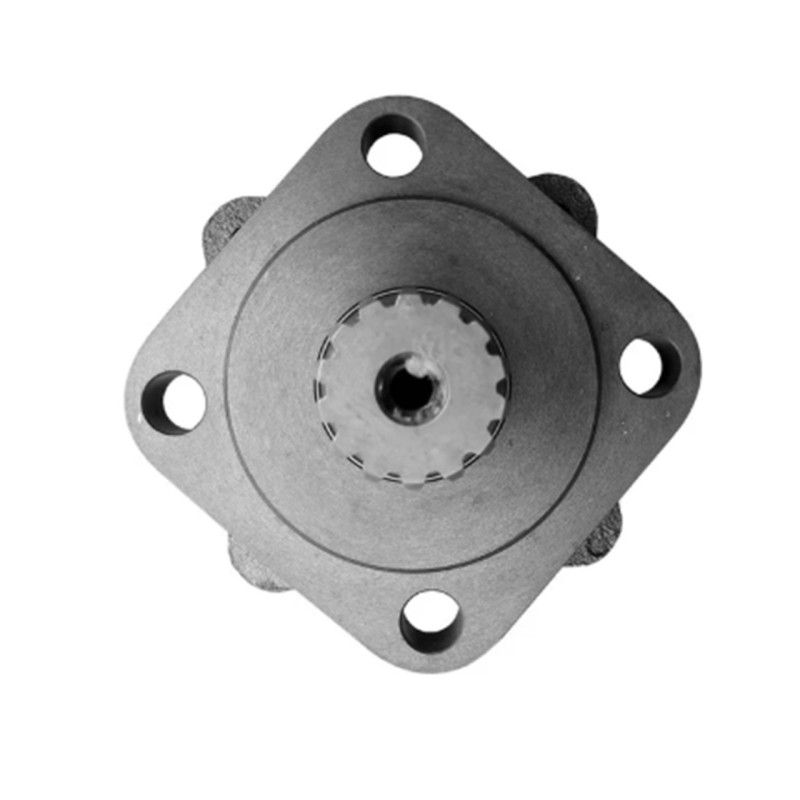

• Shaft ø1¼ splined, key 14T ANS B92.1-1970
• Other shaft options are available upon request (see specifications in PDF)

Area of Application:

• Various special machinery and industrial equipment; the unit can be used in construction, road, agricultural machinery, and other hydraulic systems where high reliability at low rotational speeds is required.

Main Parameters:

• Displacement: 80.5 cm³/rev
• Max. operating speed: 810 rpm
• Max. torque: 240 Nm
• Max. operating power: 15.5 kW
• Max. operating pressure: 210 bar
• Flow rate: 65 l/min
• Weight: 9.9 kg
• Detailed information: PDF

The MS 80SH hydraulic motor is equipped with robust tapered roller bearings that can withstand both static and dynamic radial loads. The special internal design minimizes energy losses in the system and ensures stable operation even at high operating pressure. This makes it an optimal choice for applications requiring long-term operation and minimal maintenance. Ports with standard BSP threads simplify integration into existing hydraulic systems, and the ability to order alternative shaft options allows the motor to be adapted to specific customer technical requirements.

Before operation, it is recommended to review the specifications in the provided PDF to select optimal operating parameters and system settings.
