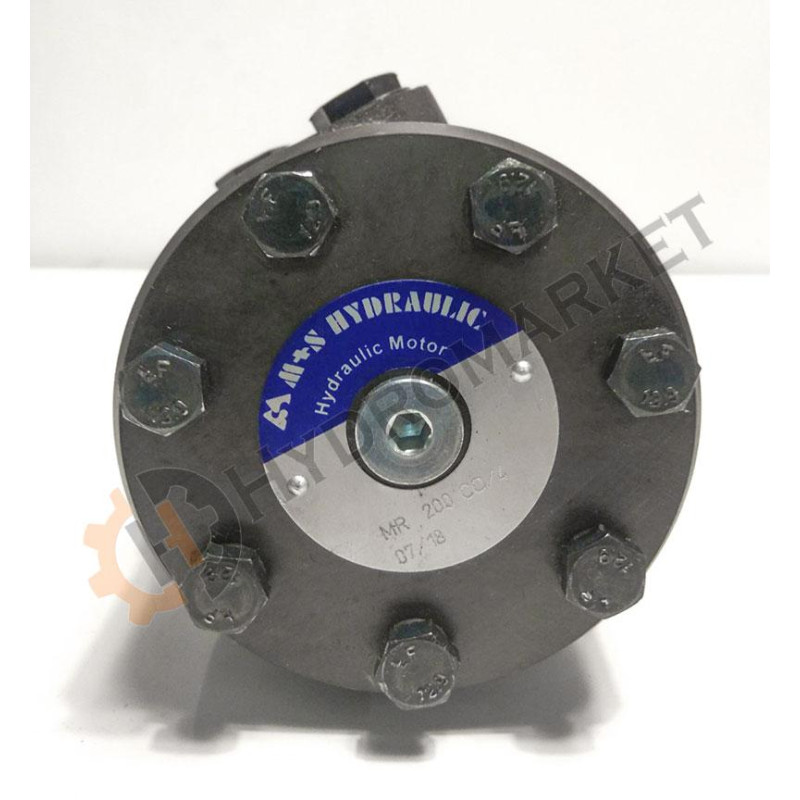

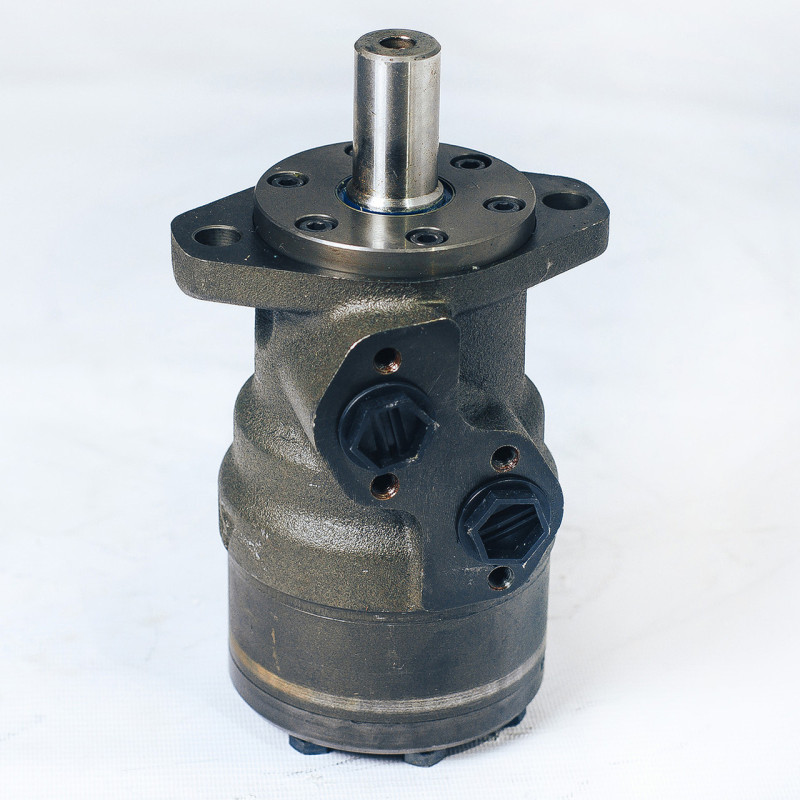

Gerotor Hydraulic Motor MR 200 C M+S Hydraulic (Bulgaria) — Overview and Specifications

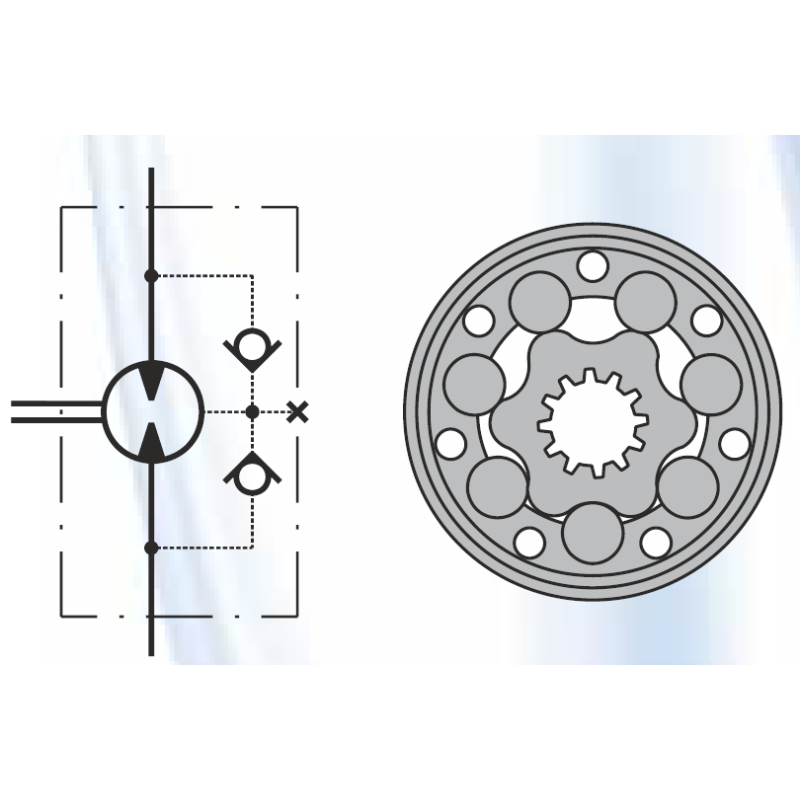

The gerotor hydraulic motor MR 200 C from M+S Hydraulic, available under the Hydro-pack brand, is designed for low-speed drives in special machinery and industrial equipment. The MR 200 C model has a displacement of 199.8 cm³/rev and a maximum operating power of 9 kW. This hydraulic motor combines reliability and a long service life thanks to design solutions such as rollers in the gear ring, which evenly distribute the load on the teeth, reduce friction, and minimize wear, ensuring efficient operation at high pressure and extending service life.

Design Features

• Displacement: 199.8 cm³
• Low-speed series with optimized mechanics for short-term and continuous loads

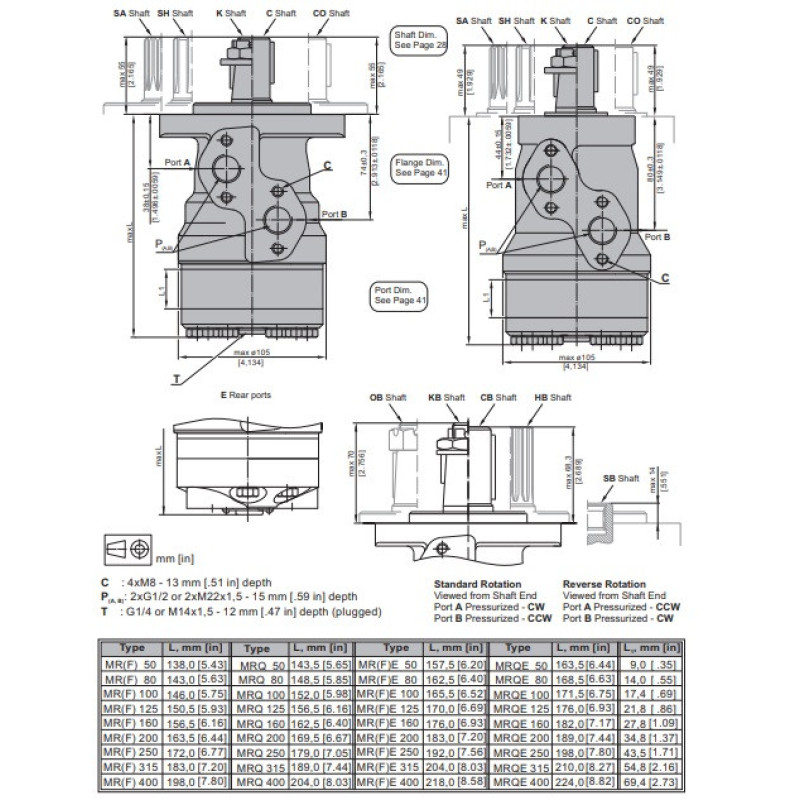

• Main ports located on the side with G1/2" thread; drain port with G1/4" thread
• Various shaft, flange, and port options available for adaptation to specific tasks

Shaft and Seals

• Straight shaft ø25 mm, cylindrical key A8x7x32 DIN6885
• Standard shaft seal factory installed
• Other shaft options available upon request — see specifications in PDF

Scope of Application

• Suitable for various special machinery and industrial equipment: transport mechanisms, lifting and drive systems, units with high rotational loads

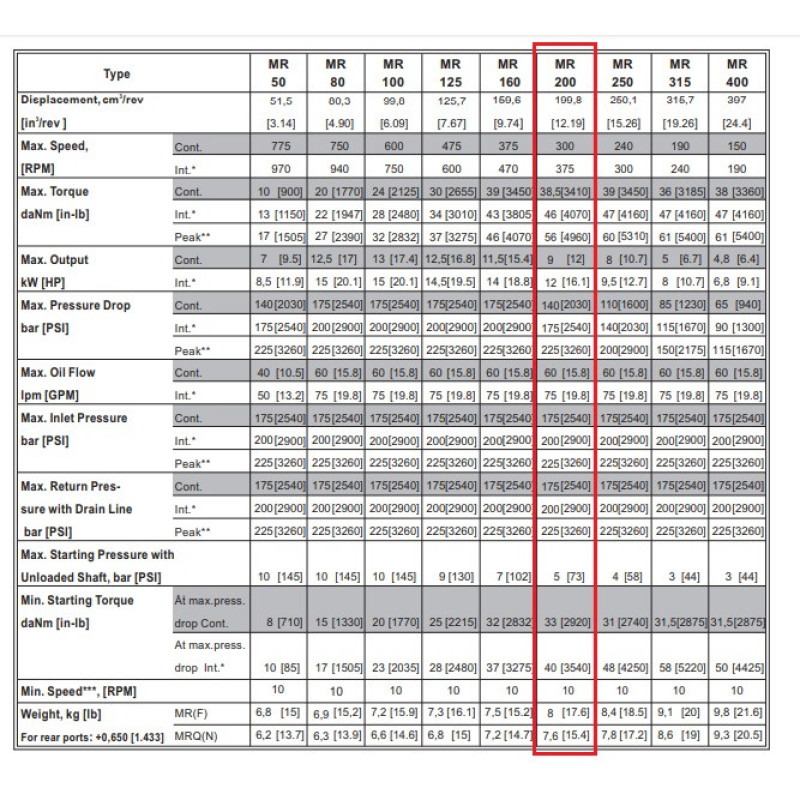

Technical Parameters

• Max. operating speed: 300 rpm
• Max. torque: 385 Nm
• Max. operating power: 9 kW
• Max. operating pressure: 140 bar
• Flow rate: 60 l/min
• Weight: 8 kg
• Detailed information: PDF

Operating Recommendations

• Short-term high speed and short-term high pressure should not occur simultaneously
• Recommended filtration: ISO 20/16 cleanliness code; nominal filtration 25 microns or higher
• Use of high-quality mineral-based hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4) is recommended
• Recommended minimum oil viscosity: 13 mm²/s [70 SUS] at 50°C [122°F]
• Recommended maximum system operating temperature: 82°C [180°F]
• To ensure optimal hydraulic motor life, fill with working fluid and allow the motor to operate under moderate load and speed for 10–15 minutes before maximum load

The MR 200 C hydraulic motor from M+S Hydraulic under the Hydro-pack brand is a reliable solution for equipment requiring high efficiency at moderate speeds and stable operation under loads. Thanks to the option to choose shaft, flange, and port variants, this motor easily integrates into existing hydraulic systems and provides a long service life when filtration and lubrication recommendations are followed.
