Gerotor Hydraulic Motor MP 40 C M+S Hydraulic (40.5 cm3, 8.4 kW, 1480 rpm)

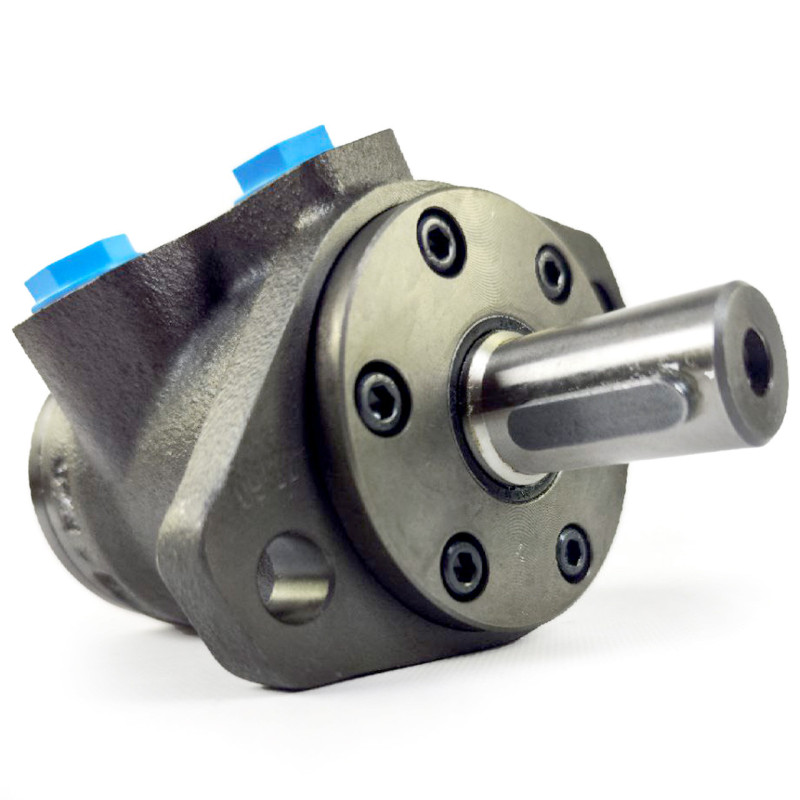

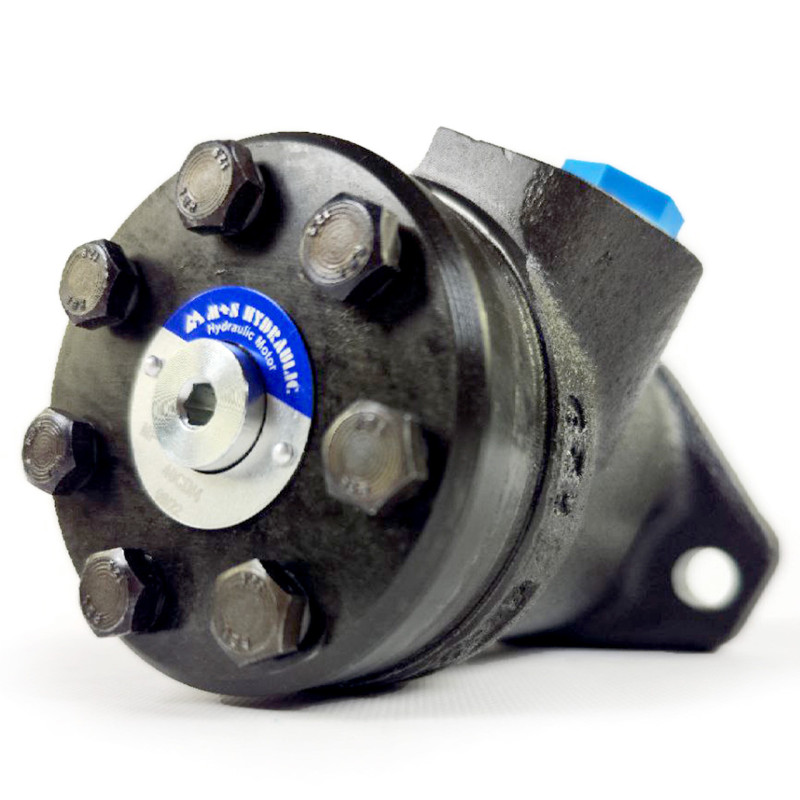

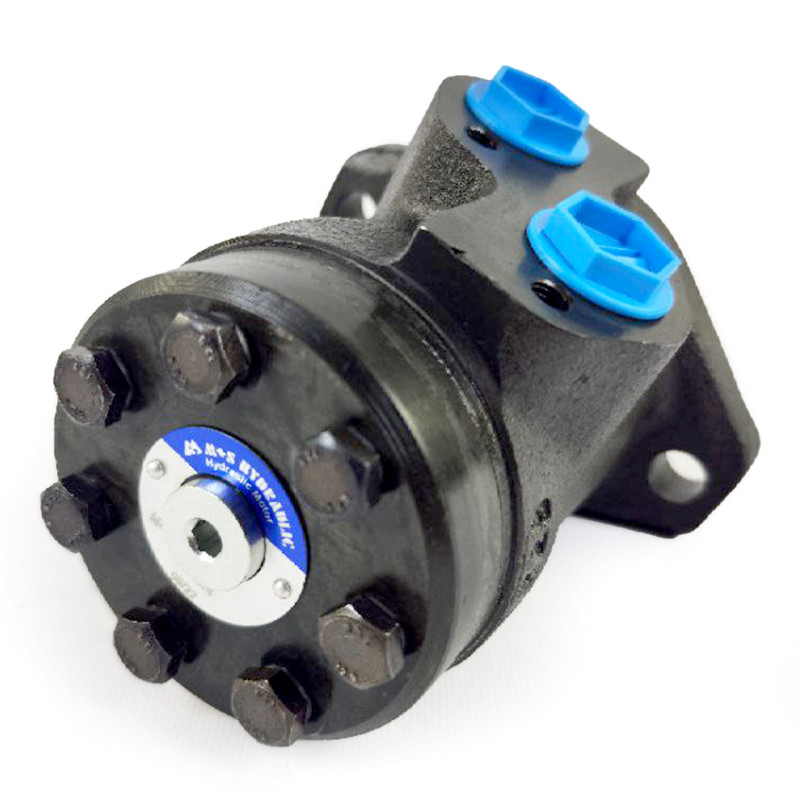

Introducing the M+S Hydraulic MP 40 C gerotor hydraulic motor — a compact and high-speed unit with a displacement of 40.5 cm³ and a maximum power of 8.4 kW. This model belongs to the MP series, designed for low-torque operation at high speeds: an ideal choice for special machinery, industrial mechanisms, and other equipment requiring continuous operation at moderate pressure or short-term peak loads at elevated pressure. The manufacturer is M+S Hydraulic (Bulgaria). Product brand: Hydro-pack.

Shaft and Seals:

• Straight cylindrical shaft Ø25 for key A8x7x32 DIN6885
• Standard shaft seal
• Other shaft options available upon request (see specification in PDF)

Application: various special machinery and industrial equipment requiring compactness and reliability at high speeds.

Key Parameters:

• Displacement: 40.5 cm³
• Maximum speed: 1480 rpm
• Maximum torque: 62 Nm
• Maximum power: 8.4 kW
• Maximum operating pressure: 120 bar
• Flow rate: 60 l/min
• Weight: 5.7 kg
• Detailed information in the technical sheet: PDF

MP series hydraulic motors are supplied with an additional shaft seal (option D) by default.

Operating Recommendations

• Avoid simultaneous short-term elevated speed and short-term elevated pressure.
• Recommended filtration: ISO cleanliness class 20/16; nominal filtration — 25 microns or higher.
• It is recommended to use high-quality mineral hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum kinematic oil viscosity — 13 mm²/s (≈70 SUS) at 50°C.
• Recommended maximum operating system temperature — 82°C (≈180°F).
• To ensure a long service life of the hydraulic motor, before full load, fill the system with working fluid and allow the unit to operate at medium load and speed for 10–15 minutes.

Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors. The MP 40 C model from M+S Hydraulic is distinguished by its compact dimensions and optimal efficiency for applications requiring a combination of high speeds and reliable operation at moderate pressures. Thanks to the straight Ø25 shaft for a key and standard seal, this unit is easily integrated into existing drive assemblies; custom shafts can be manufactured if needed (see technical documentation).

If you need additional technical information, specifications, or consultation on selecting a hydraulic motor for your equipment, please contact Hydro-pack brand representatives or M+S Hydraulic manufacturer documents.
