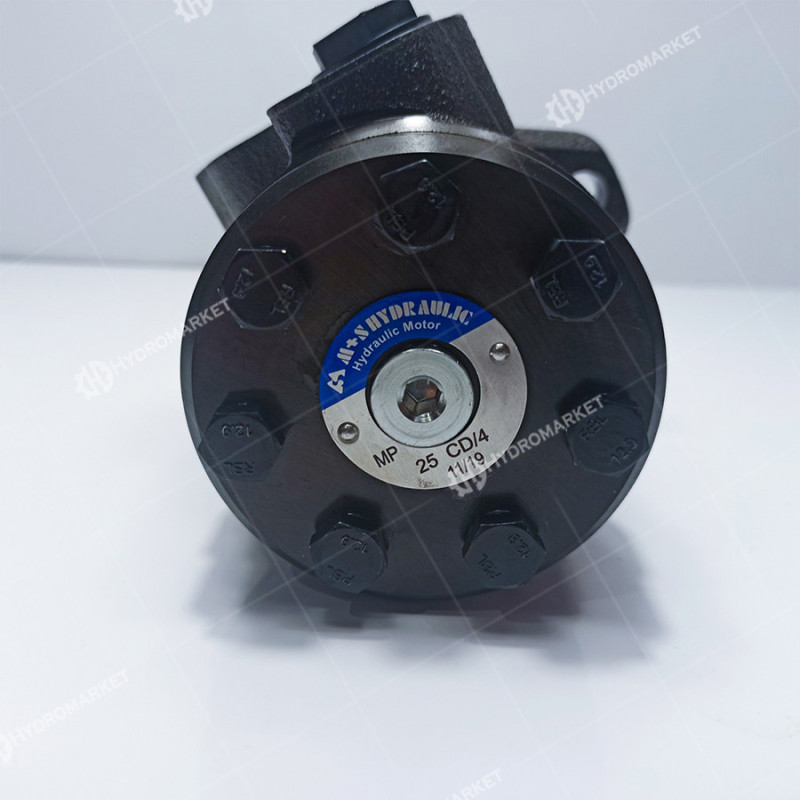

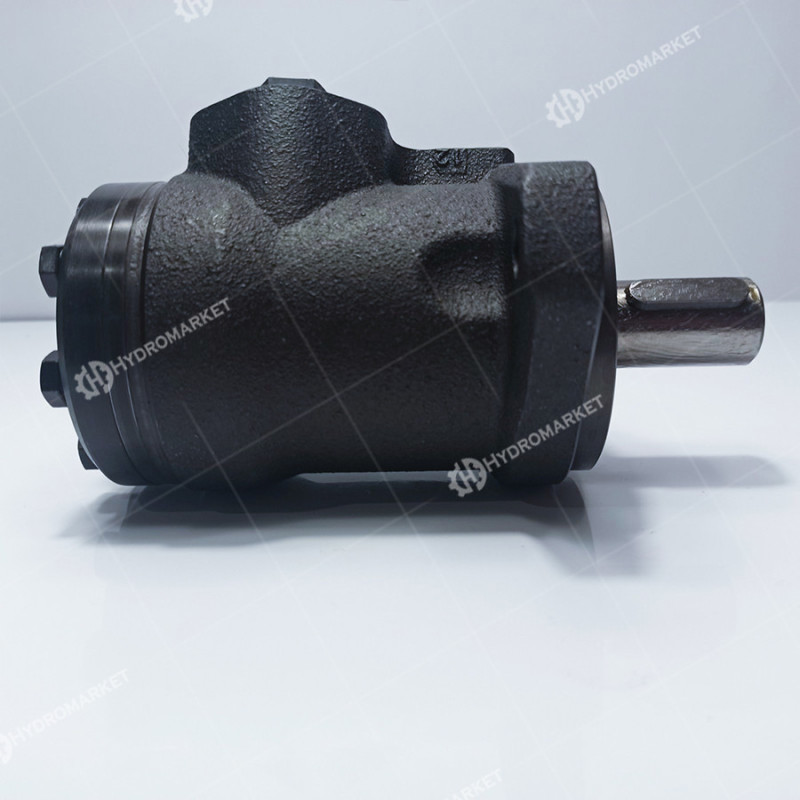

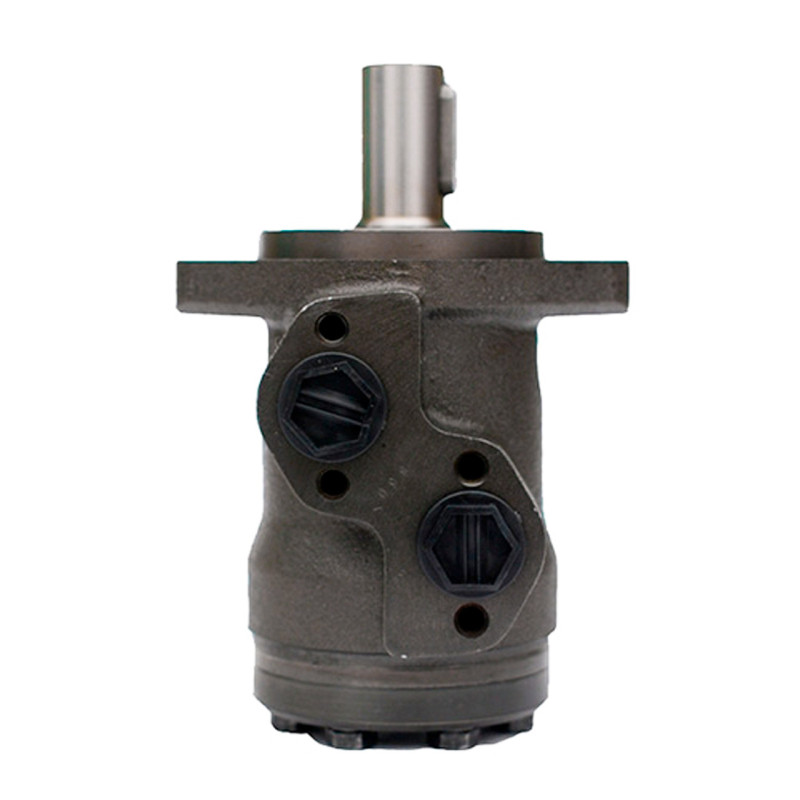

Gerotor Hydraulic Motor MP 25 C by Hydro-pack (M+S Hydraulic, Bulgaria)

Introducing the Hydro-pack MP 25 C gerotor hydraulic motor — a compact and high-speed hydraulic motor designed for intensive operation in various special machinery and industrial equipment. This model combines a displacement of 28.4 cm3/rev with a maximum power of 4.5 kW, making it an ideal solution for drives requiring high rotational speed at moderate torque. The MP series is characterized by low inertia and the ability to operate for extended periods at moderate pressure or in short cycles at elevated pressure, while maintaining a compact housing and dimensions.

Manufacturer: Hydro-pack (M+S Hydraulic, Bulgaria). Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors.

Shaft and Seals:

• Straight cylindrical shaft ø25 mm with key A8x7x32 DIN6885.
• Standard shaft seal installed as standard.
• Possibility of manufacturing other shaft variants by order (details in PDF specification).

Key Parameters

• Displacement: 28.4 cm3/rev.
• Max. operating speed: 1408 rpm.
• Max. torque: 33 Nm.
• Max. operating power: 4.5 kW.
• Max. operating pressure: 100 bar.
• Flow rate: 40 l/min.
• Weight: 5.6 kg.
• Detailed technical documentation: PDF.

By default, MP series hydraulic motors are equipped with an additional shaft seal (option D), which increases durability under challenging operating conditions.

Operating Recommendations

• Avoid simultaneous combination of short-term high speed and short-term high pressure.
• Recommended system cleanliness according to ISO code 20/16; nominal filtration 25 µm or better.
• It is recommended to use high-quality mineral-based hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4).
• Minimum recommended oil viscosity: 13 mm2/s (70 SUS) at 50°C.
• Maximum recommended system operating temperature: 82°C.
• To ensure optimal hydraulic motor lifespan, before operating under maximum load, fill the system with fluid and allow the motor to run at moderate load and speed for 10–15 minutes.

The MP 25 C hydraulic motor is suitable for use in special machinery, mobile machines, agricultural equipment, and industrial drives where compactness, reliability, and high rotational speed are important. Thanks to precise tolerances and the possibility of ordering non-standard shafts, this model easily integrates into existing hydraulic systems and ensures stable operation according to the stated parameters.

Model information and technical specifications are taken from official manufacturer materials by Hydro-pack (M+S Hydraulic). Before installation, ensure compatibility with your system and adhere to the above recommendations for filtration and temperature regime.
