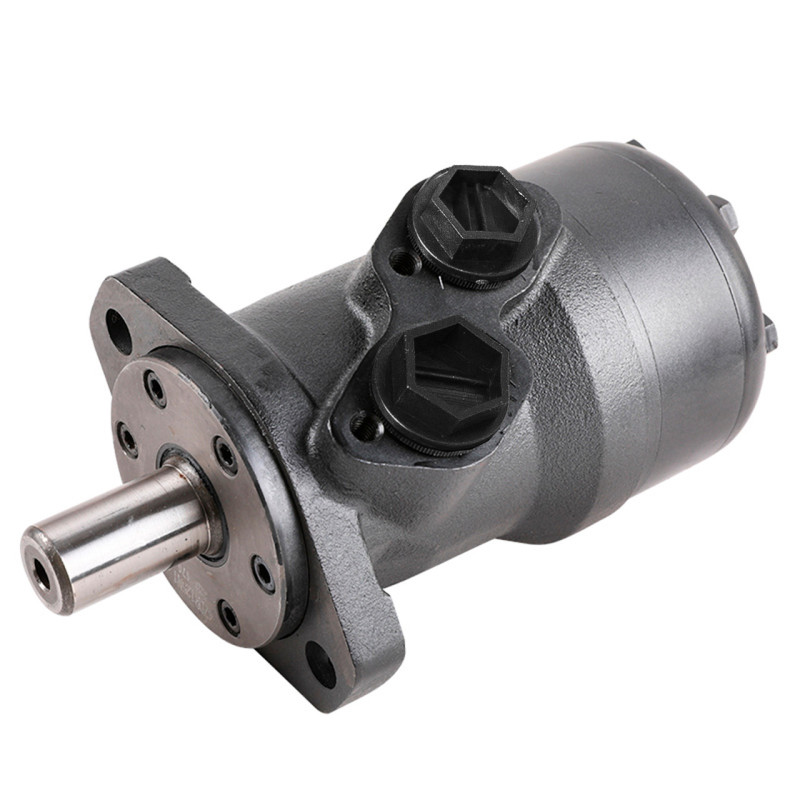

Gerotor Hydraulic Motor MP 200 C from M+S Hydraulic (Bulgaria)

Introducing the gerotor hydraulic motor MP 200 C from manufacturer M+S Hydraulic, supplier in Ukraine: Hidros. This hydraulic motor is designed for use in various special machinery and industrial equipment, including tractors, motorcycles, ATVs, and boats within the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors. The MP 200 C belongs to the MP series of low-torque, high-speed motors, characterized by compactness, high reliability, and the ability for continuous operation at moderate pressure or short-term operation at high pressure.

Shaft and Seal Design

• Straight cylindrical shaft ø25 mm for key A8x7x32 DIN6885
• Standard shaft seal
• Other shaft options available upon request (see detailed specification in PDF)

Main Technical Parameters of Hydraulic Motor MP 200 C:

• Displacement: 198 cm³/rev
• Maximum speed: 303 rpm
• Maximum torque: 366 Nm
• Maximum power: 10 kW
• Maximum operating pressure: 140 bar
• Maximum oil flow: 60 l/min
• Weight: 6.6 kg
• Detailed technical documentation: PDF

MP series hydraulic motors are supplied with an additional shaft seal (option D) by default.

Scope of Application and Advantages

The MP 200 C is effective in drive systems, trolleys, rotary mechanisms, and other special machinery drives where high rotational speed at moderate torque is required. Thanks to its compact size and simple design, this gerotor motor is easily integrated into confined spaces and ensures reliable long-term operation when operating recommendations are followed.

Operating Recommendations

• Avoid simultaneous short-term operation at maximum speed and maximum pressure.
• Recommended hydraulic fluid cleanliness class: ISO 20/16.
• Nominal filtration: 25 microns or higher.
• It is recommended to use high-quality mineral hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum kinematic oil viscosity: 13 mm²/s (≈70 SUS) at 50°C.
• Recommended maximum system operating temperature: 82°C.
• To ensure optimal service life, before operating at maximum load, fill the system with fluid and allow the hydraulic motor to run at moderate load and speed for 10–15 minutes.

This description contains all key technical specifications and operating recommendations for the MP 200 C hydraulic motor. If you require other shaft options or additional information on compatibility with your equipment, please contact supplier Hidros or review the detailed specification in the attached PDF.
