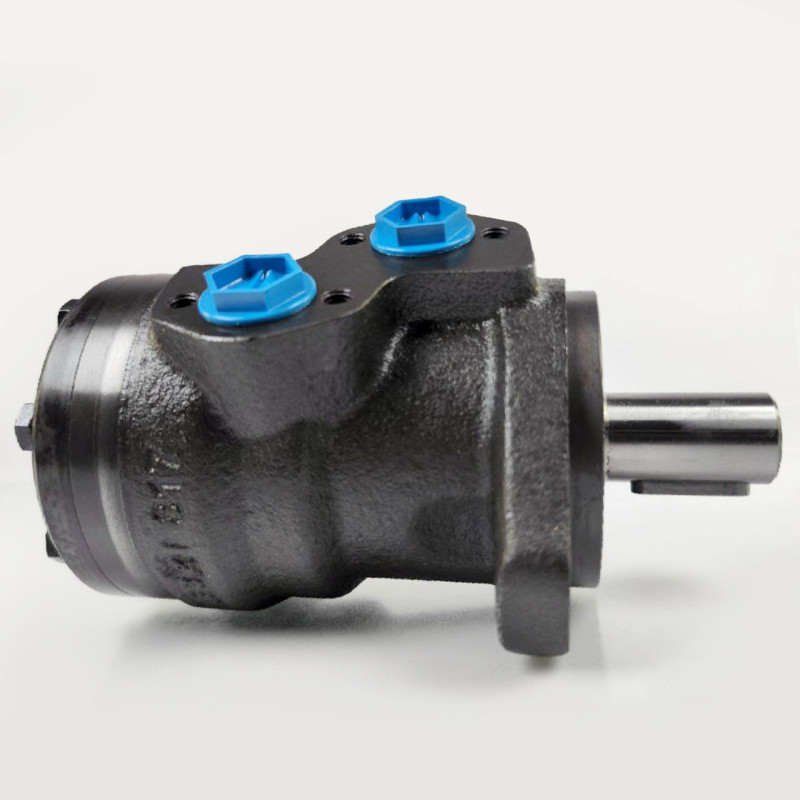

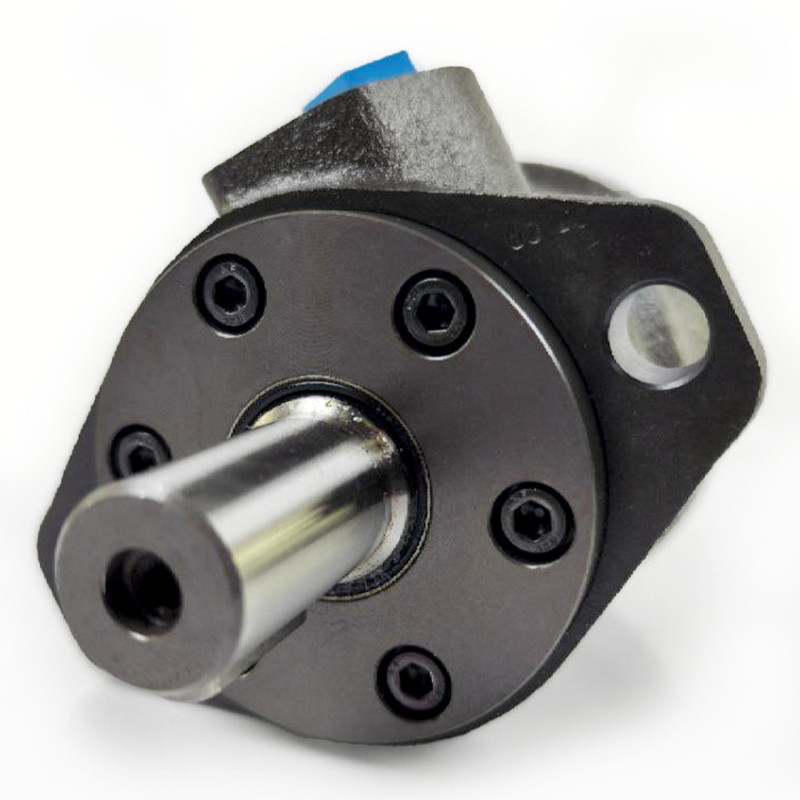

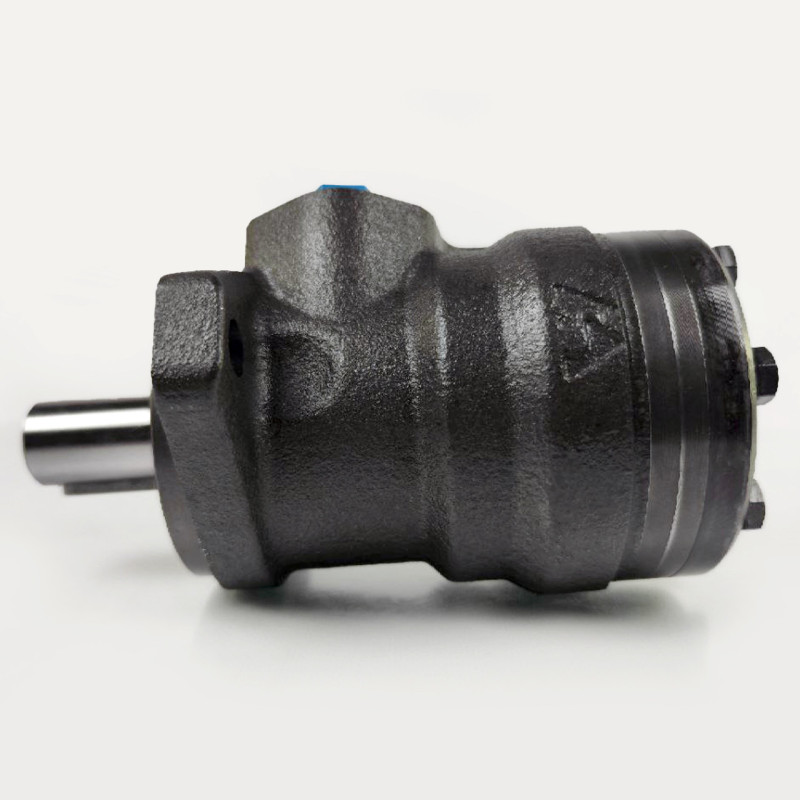

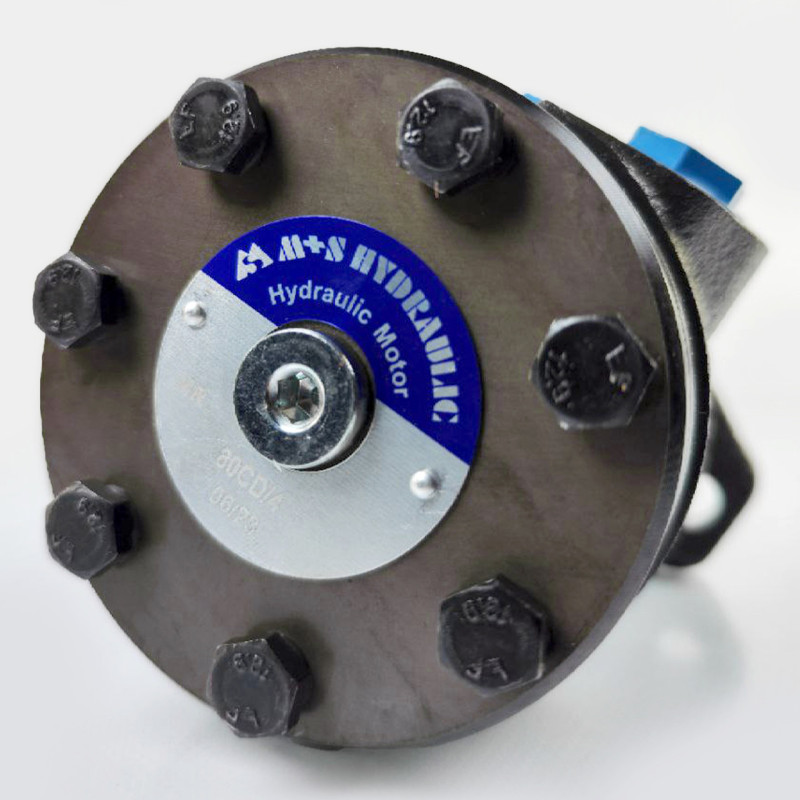

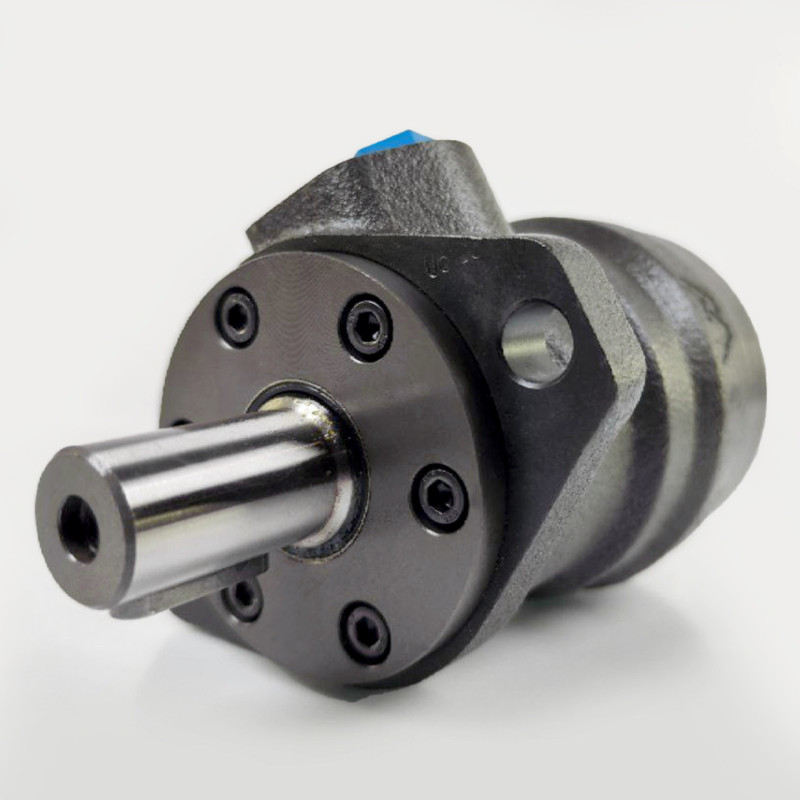

Gerotor Hydraulic Motor MR 80 CD/3 by M+S Hydraulic

The M+S Hydraulic MR 80 CD/3 hydraulic motor is a high-quality gerotor hydraulic motor designed for use in special machinery and industrial equipment. In our assortment, the supplier is listed as the Hydro-pack brand, while the manufacturer of the model itself is M+S Hydraulic (Bulgaria). This motor belongs to the low-speed series and has a displacement of 80.3 cm³/rev with a maximum operating power of 12.5 kW, making it an optimal choice for mechanisms with high loads at low speeds.

Design Features

In the MR series, special rollers are installed in the gear ring, which evenly distribute the load on the teeth, reduce friction, and minimize wear. This ensures increased engine efficiency even at high pressure and extends service life. The main ports are located on the side and have G1/2" threads, while the drain port is equipped with G1/4" threads. Various shaft, flange, and port options are available upon request.

Shaft and Seals

• Straight shaft ø25, parallel key A8x7x32 DIN6885
• Standard shaft seal
• Other shaft options available upon request (see technical documentation in PDF)

Applications

• Various special and industrial machinery

Main Technical Parameters of MR 80 CD/3

• Displacement: 80.3 cm³/rev
• Max. operating speed: 750 rpm
• Max. torque: 200 Nm
• Max. operating power: 12.5 kW
• Max. operating pressure: 175 bar
• Flow rate: 60 l/min
• Weight: 6.9 kg
• Detailed information: PDF

Operating Recommendations

• Brief high speed and brief high pressure should not occur simultaneously.
• Recommended filtration: ISO cleanliness code 20/16. Nominal filtration 25 micron or higher.
• It is recommended to use high-quality mineral-based hydraulic oil HLP (DIN 51524) or HM (ISO 6743/4).
• Recommended minimum oil viscosity: 13 mm²/s [70 SUS] at 50°C [122°F].
• Recommended maximum system operating temperature: 82°C [180°F].
• To ensure optimal hydraulic motor service life, fill with working fluid and allow the motor to operate under moderate load and speed for 10–15 minutes before applying maximum load.

This gerotor hydraulic motor MR 80 CD/3 from M+S Hydraulic under the Hydro-pack brand is suitable for a wide range of applications where reliable torque transmission is required at limited speeds and high operating pressures. Thanks to its design features and recommended operating parameters, you will achieve long-lasting and efficient operation of the unit as part of hydraulic systems for specialized and industrial machinery.
