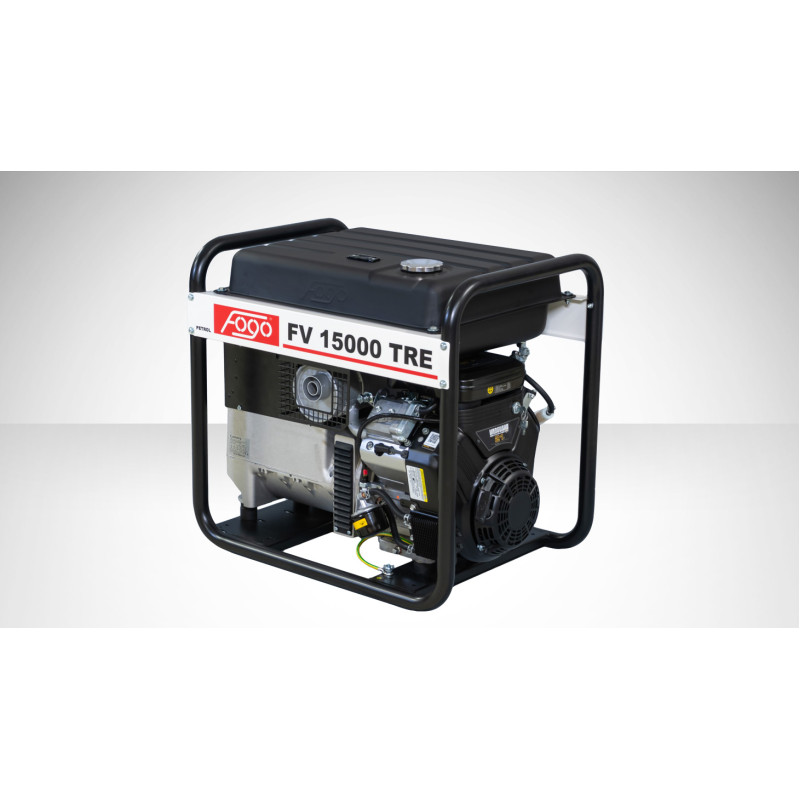

FOGO FV15000TRE Generator Set

Brand: FOGO. Category: Energy Independence > Generators. This powerful FOGO FV15000TRE gasoline generator set combines the reliability of the Briggs & Stratton Vanguard 3854 engine with modern protection and voltage regulation systems, making it an optimal solution for power supply during emergencies or when a stationary grid is unavailable.

The engine can be started both with an electric starter and manually. The design includes a 45 L fuel tank and a battery for autonomous electric starting. The generator is equipped with a muffler with the option to connect an exhaust hose.

Power and Electrical Characteristics: According to the technical specification in the model name, max. power is 3ph - 14.5 kVA / 1ph - 7.0 kW. The description text also provides nominal values: nominal power of 10 kW in three-phase mode and 6.5 kW in single-phase mode. Nominal current: 18.1 A (3 phases) and 28.3 A (1 phase). The generator's starting current reaches 300%.

Efficiency and Alternator: The generator is characterized by high efficiency and increased КПД; fuel consumption at 75% load is 4.9 L/h. It is equipped with a high-quality alternator from the Italian manufacturer Sincro with IP23 protection class and H insulation class.

Protection and Control Systems

• digital AVR voltage regulation with +/- 1.5% accuracy per phase;
• digital AVR system ensures stable operation without overloads and minimizes voltage fluctuations (THD ≤ 5%);
• automatic engine shutdown at low oil level thanks to the oil pressure sensor;
• thermal relay that shuts off the engine when a critical operating temperature is reached;
• overload protection.

The frame is reinforced with a 38 mm profile, which increases the durability of the structure under significant mechanical loads. An hour meter is available to monitor the actual operating time of the unit.

Sockets and Equipment

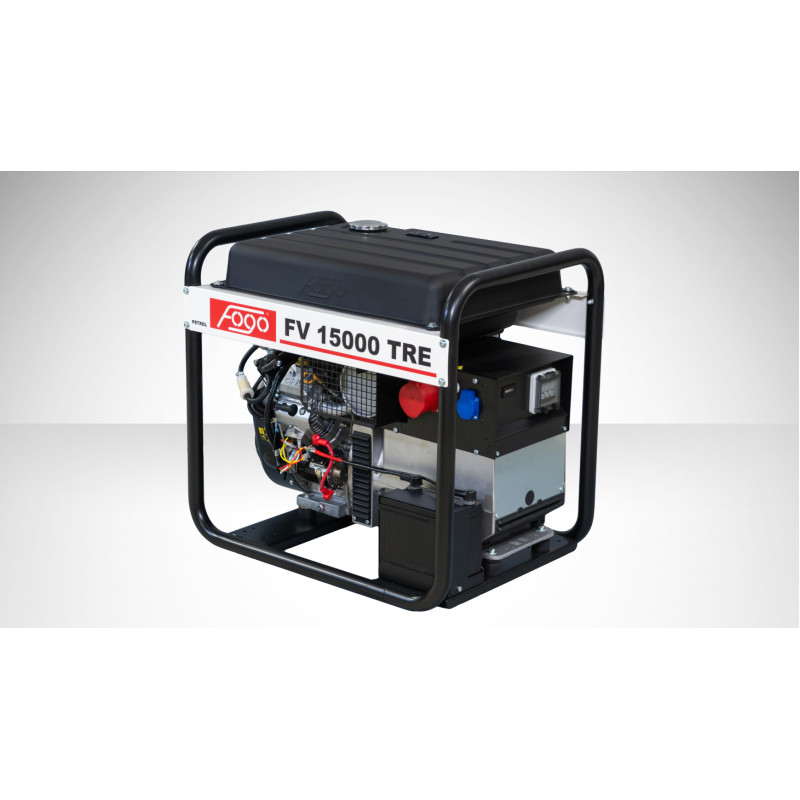

• two protected sockets: single-phase ~16A 230V Schuko and three-phase ~32A 400V IP44;
• battery included;
• operating hour counter (hour meter).

Purpose: The FOGO FV15000TRE is designed to restore power supply in case of grid failures or when the stationary grid is unavailable or damaged. The combination of a powerful Vanguard engine, a reliable Italian Sincro alternator, and a set of protective systems makes this unit suitable for domestic and semi-professional use, construction sites, small productions, and infrastructure facilities.

Package Contents:

• FOGO FV15000TRE generator;
• battery;
• hour meter.

If you need a reliable generator set with electric start, a large fuel tank, and an extended set of protective functions — the FOGO FV15000TRE meets these requirements and will provide stable power in demanding operating conditions.
