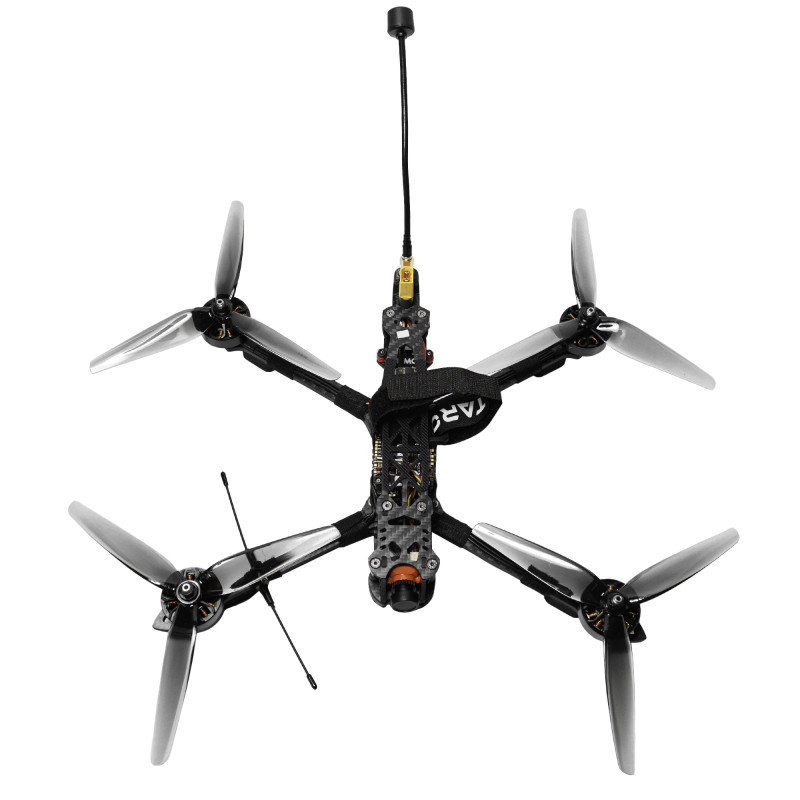

FPV Drone "Dzhmil 4.5.0" — 7-inch Drone on ELRS 915 MHz, MoD Certified

Dzhmil 4.5.0 from DRONE UKRAINE is a Ukrainian 7-inch FPV drone designed for long-range flights and high payload capacity missions. The model combines a reliable design, certified communication and video modules, and official certification from the Ministry of Defense with NATO stock number: 1550-61-061-5896, confirming its suitability for specialized missions. A control range of up to 8 km is provided by the GEPRC ELRS/TBS 915 MHz (720-980 MHz) receiver, while high-quality long-range video is guaranteed by the VTX GEPRC RAD 5.8G 1.6W and Caddx H1 camera with 1000+ TVL resolution.

Key Features

• Control range up to 8 km thanks to GEPRC ELRS/TBS 915 MHz (720-980 MHz), ensuring stable communication in challenging conditions.
• VTX GEPRC RAD 5.8G 1.6W video transmission and Caddx H1 camera (1000+ TVL) for clear images in FPV goggles.
• Recommended payload 1.6 kg, maximum payload 2.1 kg — ideal for cargo delivery and specialized tasks.
• Lightweight and durable design: aircraft weight only 455 grams with a 7-inch diagonal (dimensions 193x223 mm), providing a balance between maneuverability and payload capacity.
• Flight time from 12 to 30 minutes depending on battery selection (batteries not included).
• Ability to install a receiver for both ELRS and TBS protocols for flexible integration into various control systems.

Design and Components

Frame: durable carbon fiber frame MARK4 7″ / GER-MK4-7. Motors: GEPRC E2806.5 1350KV (2806.5 1350KV). Propellers: Gemfan 7037-3 or HQProp. The flight controller and electronics system includes FC GEPRC F405 V2+, ESC SPAN 50A+ (BlueJay), MCU STM32F405RGT6, gyroscope ICM-42688-P, and Betaflight OSD with AT7456E chip. Antenna: Momoda 5.8G RHCP RP-SMA 120mm. This combination of components ensures reliable operation in challenging conditions and stable telemetry and video stream.

Technical Specifications

• Frame: MARK4 7′ (GER-MK4-7)
• Frame Material: Carbon
• FC: GEPRC F405 V2+
• ESC: SPAN 50A+ (BlueJay)
• MCU: STM32F405RGT6
• Gyroscope: ICM-42688-P
• OSD: Betaflight OSD with AT7456E chip
• Receiver: ELRS/TBS 915 MHz (720-980 MHz)
• VTX: GEPRC RAD 5.8G 1.6W (5.8G 1.6W+)
• Camera: Caddx H1 1000+ TVL
• Antenna: Momoda 5.8G RHCP RP-SMA 120mm
• Motors: GEPRC E2806.5 1350KV (2806.5 1350KV)
• Propellers: Gemfan 7037-3 or HQProp
• Flight Time: 12-30 minutes (depends on battery)
• Recommended Payload: 1.6 kg
• Maximum Payload: 2.1 kg
• Diagonal: 7 inches
• Weight: 455 grams
• Dimensions: 193x223 mm
• NATO Stock Number: 1550-61-061-5896

Package Contents

• 1 pc. x FPV Drone
• 4 pcs. x Propellers
• 1 pc. x VTX Antenna
• 1 pc. x User Manual

Note: Batteries are not included. It is recommended to select batteries according to flight time and payload requirements; compatible batteries are available separately in the "Frequently bought together" section. This aircraft is suitable for operations requiring a large range, stable video and telemetry, and the ability to carry a payload — the combination of military reliability, Ministry of Defense certification, and modern communication modules makes "Dzhmil 4.5.0" an optimal solution for complex flight tasks.

Product Category: Drones & Quadcopters > FPV Drones. Manufacturer: DRONE UKRAINE.
