Product Code: FA122-165158-122
18 193 грн.
Buy this product in 1 click:
Main specifications
Cooling System: forced air
Cylinder bore / piston stroke, mm: 78 / 62
Engine displacement, cc: 296
Engine oil capacity, L: 1.1
Engine power, hp: 6.0
All specifications
We will deliver this product:
Payment
Description

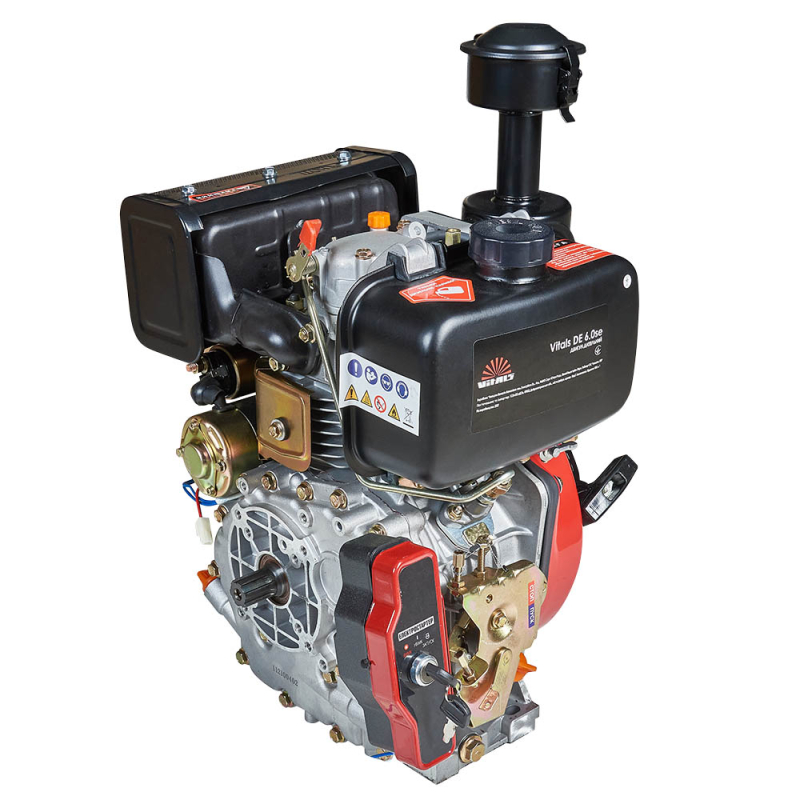

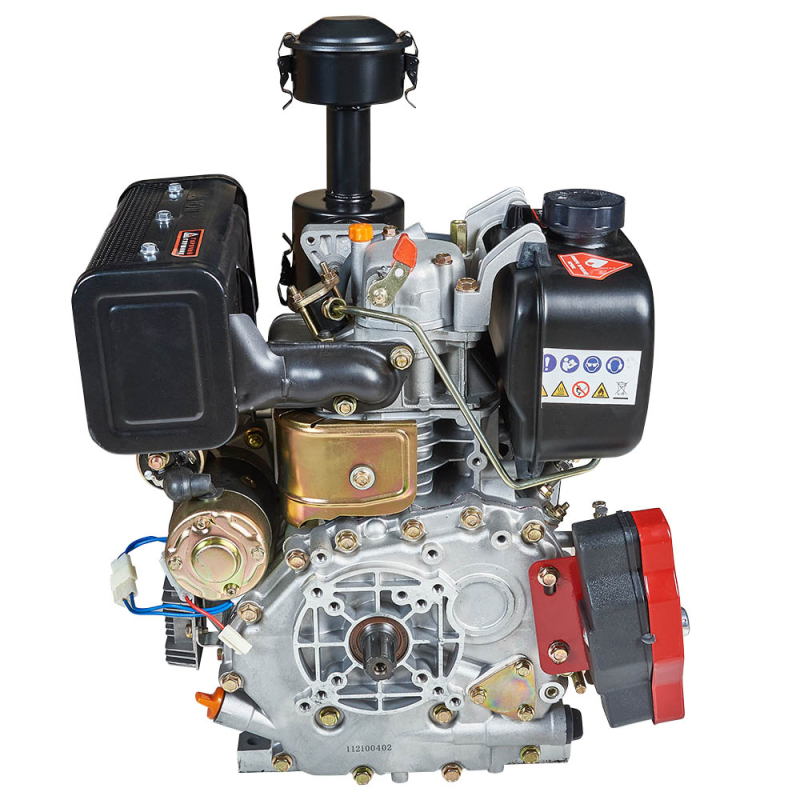

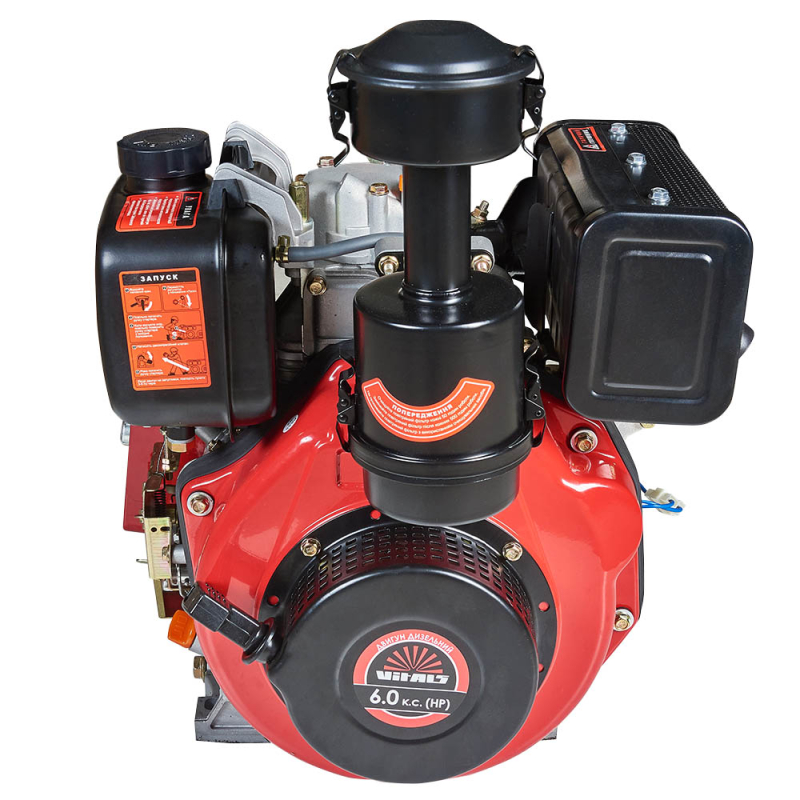

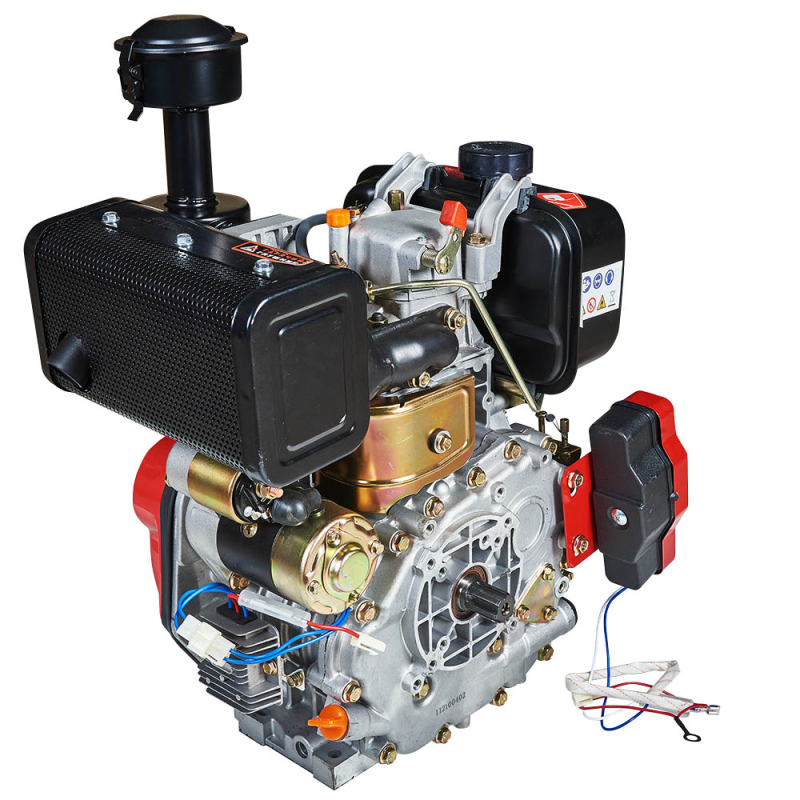

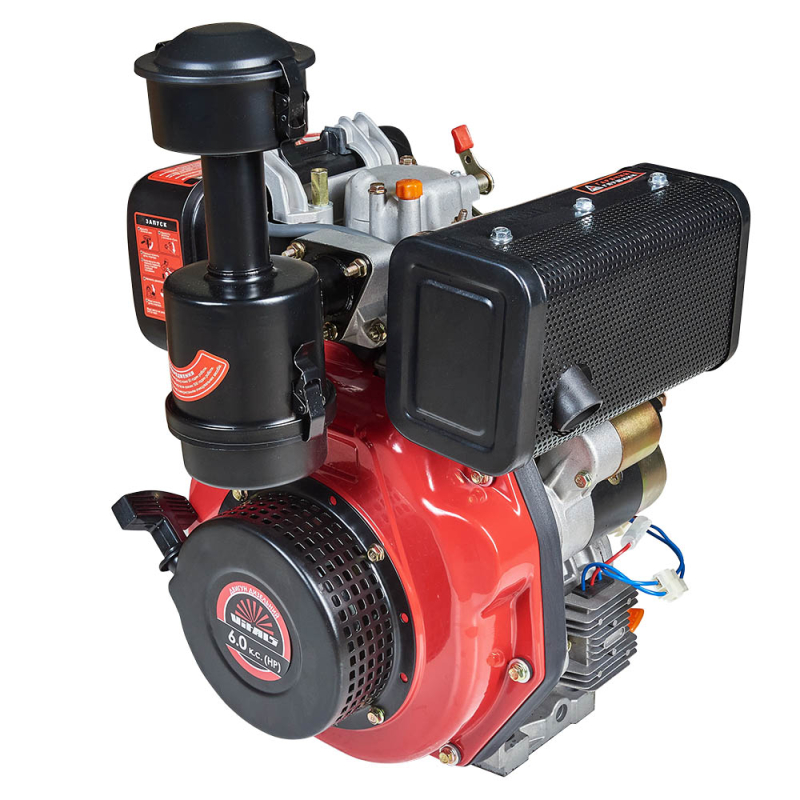

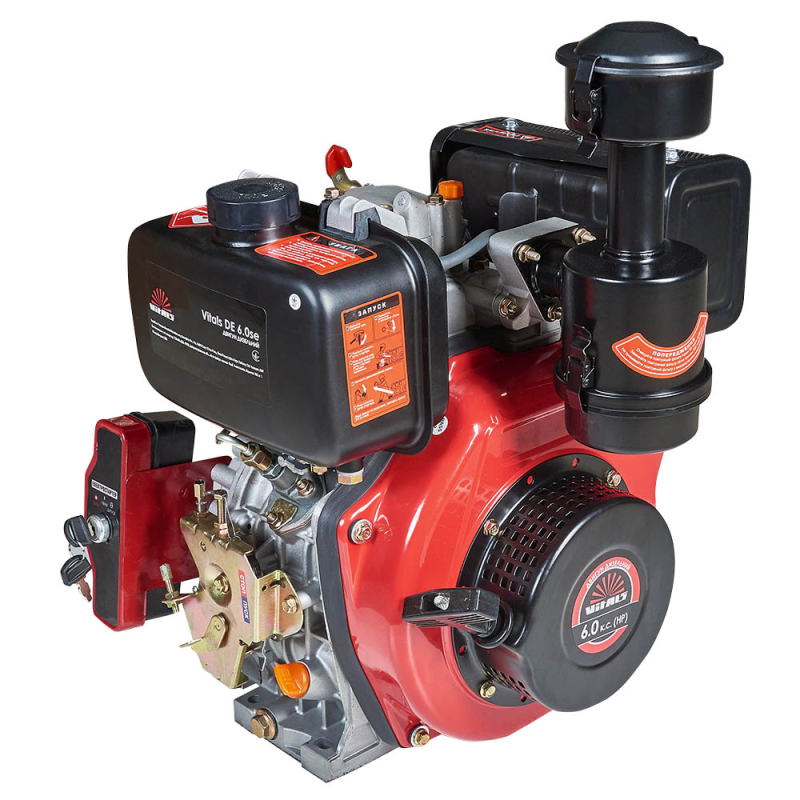

Description of Vitals DE 6.0se Diesel Engine

Vitals DE 6.0se diesel internal combustion engines are universal single-cylinder four-stroke air-cooled general-purpose engines.

Vitals DE 6.0se engines with 6 hp, a displacement of 296 cc, and a splined shaft connection are used as autonomous power units for a wide range of machinery, equipment, machine tools, and transport mechanisms. These engines are used where high power, reliability, and ease of operation are required, as part of: mini power plants; in agricultural machinery - tillers, motor cultivators, mowers, self-propelled chassis, irrigation systems, etc.; in construction equipment - in vibratory plates, vibratory rammers, concrete mixers, compressors, and pumps. DE 6.0se engines can also be used in vehicles, including water transport - boats, motorboats, and small yachts.

Both manual and electric starters are used to start DE 6.0se diesel engines. The engines are equipped with a decompression valve, which significantly facilitates starting at any time of the year. To avoid injuries during operation, DE 6.0se engines are equipped with an emergency switch to stop the engine in case of danger. To facilitate access from different sides of the crankcase, two oil filler necks with dipstick plugs are provided.

Specifications
Cooling System forced air
Cylinder bore / piston stroke, mm 78 / 62
Engine displacement, cc 296
Engine oil capacity, L 1.1
Engine power, hp 6.0
Engine type 4-stroke single-cylinder
Fuel consumption, g/kW*h 276
Fuel tank capacity, L 3.5
Launch System manual / electric starter
Net/gross weight, kg 37.0 / 39.0
Number of splines, pcs. 6
Oil bath air filter +
Package dimensions, mm 480x460x505
Shaft shank diameter, mm 25.0
Shaft shank length, mm 30.0
Shaft shank type spline joint
Spline length / width, mm 22/5
