The latest hexacopter with extended capabilities: Yuneec H850RTK!
The hexacopter's design ensures high safety, power, efficiency, stability, and the ability to carry heavier loads.
Depending on the payload and weather conditions, flight time can be up to 65 minutes, which is the highest in its class. All payloads, such as cameras from the H520E, are compatible with the H850-RTK. This significantly simplifies the use of Yuneec payloads on two different platforms: H520E and H850.
In addition to performance and payload flexibility, great attention was paid to flight safety and pilot data during the development of the H850!
Flight data belongs to you and no one else; no activations or "communication" with remote servers occur.
The H850 is equipped with dual IMU, compass, barometer, two RTK antennas, and two smart batteries. This makes flights safer, and the two GPS antennas, when used without an RTK ground station, allow the drone to perceive twice as many satellites!
Even with five working motors or one battery failure, the flight can be continued, and the H850RTK can be safely landed.
INDOOR modes – Allows you to PHYSICALLY disable the GPS module and take off and fly without restrictions where there are no satellites at all.
Dual-band control – allows changing the control and video transmission frequency band directly during flight.
Extended payload ecosystem – From a camera with 30x optical zoom to a loudspeaker!
Protection rating – IPx5 – allows flying without hindrance in rain or sub-zero temperatures (* not all H850RTK payloads support IPx5 protection)
Open ports on the Drone for more flexible application with any payload; the operator can program commands and power to the payload as needed.
H850 connection ports and power supply: GMAC 1000Mb, USB-C, USB-3 5Gbps, Aux 3.5mm, Micro-SD, 2x Power 5v+GND, 2x PWM, 2x GPIO, 5v, 12v&19.8-26.4v for external devices with high power requirements.
The built-in HDMI port in the T-One remote control allows streaming images to any external device.
The remote control's antennas on standard connectors allow connecting external or amplified antennas without problems or engineering intervention in the remote.
Built-in Mission Planner – allows performing flights without pilot intervention along a pre-planned route and executing programmed actions at designated route segments.
Specifications:
H850RTK:
Motor type: Brushless;
Number of motors: 6 pcs;
Satellite positioning systems: GPS+GLONASS+GALILEO+BEIDOU; Two RTK antennas;
Obstacle sensors: Millimeter-wave radar (optional);
Compatible payload: E20TVx (thermal imager), E90X (4K day camera), E30Zx (camera with 30x optical zoom), E20TVX-PRO (hybrid weather-resistant camera with thermal imager and optical zoom), lidar, LED searchlight, and directional digital loudspeaker;
Color: Black;
Housing material: Plastic (Built on a new carbon frame with folded arms), water and dust protection: IPx4 - IPx5;
Weight: 5800 g, maximum payload weight: 3000 g (max. 5000 g);
Dimensions unfolded (without propellers): 440×365×470 mm;
Flight time: up to 65 minutes;
Maximum ascent speed: 3 m/s (value may be modified)
Maximum descent speed: 2.5 m/s (value may be modified)
Maximum horizontal speed: 20 m/s
Maximum flight speed: 72 km/h
Battery capacity: 12800 mAh;
Power: 23.1v; 2x Smart Batteries;
Battery type: Li-Ion HV, 6S;
Battery charging time: 90 minutes. Simultaneous charging of 4 drone batteries and 2 T-One remote batteries is possible;
Operating frequency 2.4000-2.4835 GHz and 5.725-5.850 GHz. With the ability to change during flight;
Control range: FCC: 15 km; CE: 8 km;
Flight altitude: up to 5000 meters;
Autopilot: PX4 Based;
Image reception: On the T-One controller;
Hot-swappable flight batteries.
T-ONE CONTROLLER
7-inch touchscreen;
Screen resolution 1920x1200;
Screen brightness 1000 nits;
Range 15 km FCC and 8 km CE;
8 hours of battery life;
Battery 10,000 mAh/7.4 V;
Ability to recharge from external power sources during operation;
Dual-band 40 Mbps;
Dynamic frequency hopping;
IP x4;
High-performance Cortex A72&A53 processor;
Android 10;
32Gb ROM / 4Gb RAM;
HDMI;
USB-C, USB-3 and USB-2;
Micro SD;
Weight 1.2 kg
No data exchange with external services
Team mode – allows two pilots to control 1 drone and its payload.
SMART BATTERY
Size: 98×58×149 mm
Battery capacity: 12,800mAh
Battery power: 295.68 Wh
Standard voltage: 23.1 V (3.85 V/cell)
Charging voltage: 26.4 V
Battery type: Li-ion
Fast charging: 1C (10 A)
Charging time: 1.5 hours
Maximum continuous discharge current: 64A
Maximum discharge current: 128A
Weight: 1390 grams
Operating temperature: 0?+45?, built-in heating system for negative temperatures.
POWER CHARGER CASE
With the H850 Power Charging Case, you can charge four H850 batteries and two T-one batteries simultaneously!
Thanks to its robust design, batteries can be safely stored and transported.
The compact design makes the charging case easy to carry.
3.5-inch color LCD display;
Total rated power 1140 W (200-250 V) Peak – 2000W!;
220/110 volts;
Transport case;
Easy to operate;
Audible signal for current status;
Compact (370×270×220 mm).

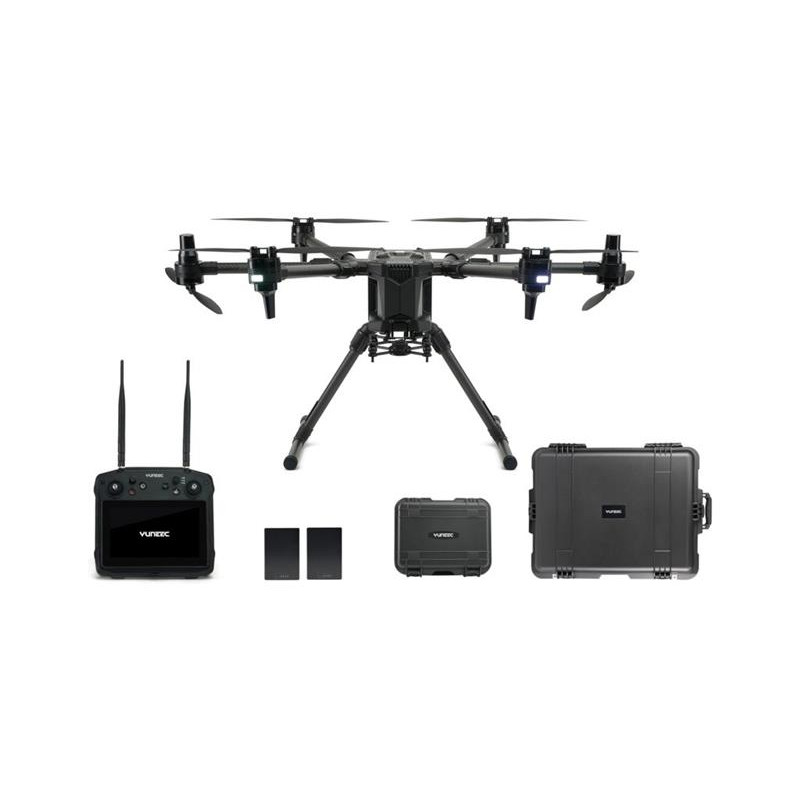

Package contents:
1 x H850 Drone;
2 x Flight battery;
1 x T-One controller;
1 x T-One battery;
1 x Protective transport case;
1 x Charging case for Drone and T-One remote batteries;
1 x Repair tool kit;
1 x Quick guide.
