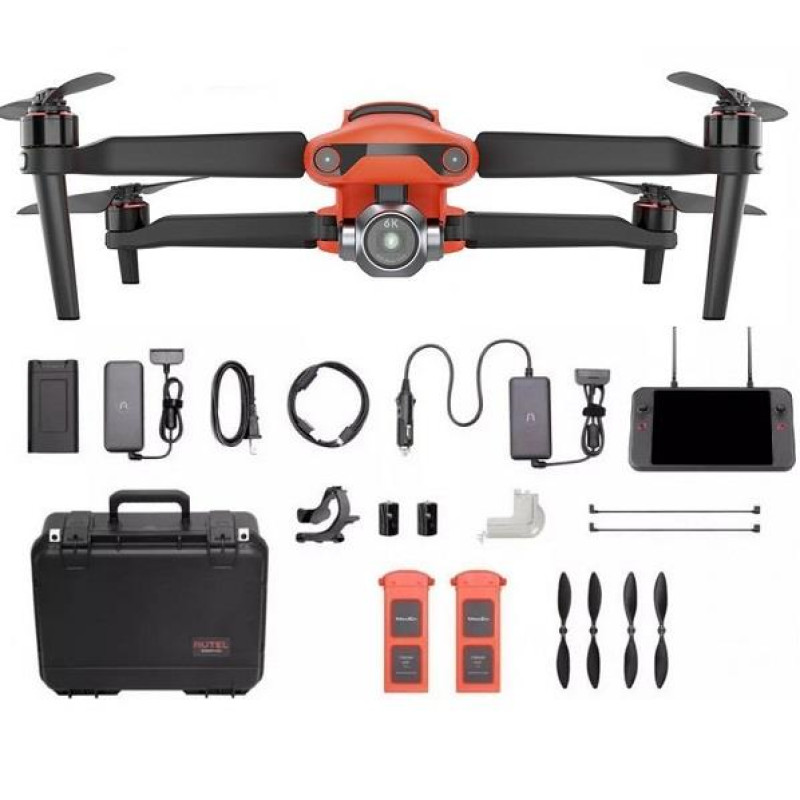

Autel EVO II Pro V3. Reliable and Durable
Maximum Performance, Unlimited Possibilities
- 40 minutes – max flight time
- 15 km – max transmission range
- 20 m/s – max flight speed
- 12 m/s - max wind resistance
- 920 g - max payload
Special Firmware
The advanced firmware utilizes flight control modules and algorithms specifically designed to counter RFI, EMI, and GPS spoofing. This allows the EVO II V3 series to confidently perform tasks in challenging flight zones. Features of this software version:
- ATTI flight mode - full anti-spoofing capability
- Extended data transmission frequency range
- Enhanced signal strength for drone-to-controller communication
- Algorithms for protection and counteraction against electronic interference and GPS spoofing
All-New 6K 1" CMOS Sensor
Images are sharper and clearer with the new 20-megapixel 1-inch Sony CMOS sensor. The EVO II Pro V3 supports 6K video with stronger noise reduction and higher frame rates.
- 1-inch CMOS sensor
- 20MP Photos
- 6k/30FPS Video
- f/2.8 ~ f/11 Aperture
Low-Light Advantage
The EVO II Pro V3 features Autel Moonlight Algorithm 2.0 for additional noise reduction. Combined with the upgraded sensor, pilots can provide support in operations with minimal lighting or even at night.
Zoom for Detail
The EVO II Pro V3 supports 3x lossless zoom and 16x digital zoom. Get clear information from a distance.
Incident Reconstruction
The EVO II Pro V3 is excellent for incident reconstruction and is compatible with Pix4D, DroneDeploy, and SkyeBrowse.
Autel SkyLink 2.0
SkyLink 2.0 is integrated into the EVO II V3 chipset, expanding capabilities for critical workflows.
15+ km
Do more because you can fly further.
QHD
Incredible video resolution within a mile, suitable for most common use cases.
2.4 GHz/5.8 GHz/900 MHz
Supports tri-band communication with automatic frequency hopping for maximum interference protection.
* 900 MHz is applicable only to FCC countries.
360° Obstacle Avoidance
Equipped with 19 groups of sensors, including 12 visual sensors, a main camera, ultrasound, IMU, and other sensors, allowing for real-time 3D mapping and path planning.
*Please refer to the manual for detailed information on obstacle avoidance and its limitations, which may or may not work in conditions of limited lighting, direct sunlight, or through thin tree branches or wires.
Unrivaled Capabilities
- No Forced Updates*
The EVO II Pro V3 does not require the latest firmware or app version to operate. - No No-Fly Zones**
The EVO II Pro V3 has no no-fly zones and will not prevent the pilot from taking off. - Rapid Deployment
Deploy in less than a minute. The EVO II Pro V3 can take to the air from its case in 45 seconds.
*To utilize the comprehensive warranty, the firmware and app must be updated to the latest version. See warranty policy for more information.
**Please fly safely and adhere to local laws and regulations. Autel Robotics is not responsible for any unauthorized flights.
Autel Smart Controller SE
The Smart Controller SE features a 6.4-inch OLED touchscreen and the latest 8-core processor for high-definition image transmission. SkyLink 2.0 transmission technology ensures long-range operation up to 15 km. Enhanced anti-interference settings and tri-band frequency hopping improve performance. The custom Android system provides additional flexibility with third-party apps, and an IP43 rating ensures all-weather operation.
- 6.4-inch OLED screen
- Removable battery
- 15 km transmission range
- Operating temperature from -10°C to 40°C
- Third-party applications
Stream with Live Deck 2
Transmit real-time HD video to various devices, providing teams from different departments with enhanced situational awareness and communication, leading to faster and better decision-making.
- 1080P video stream
- Tri-band with automatic switching
- 12 km transmission range
- 5 hours battery life
- IP43 protection
Applications
Law Enforcement
Topographic Surveying
Search and Rescue
Security
Firefighting
Specifications
Drone
| Takeoff Weight | 1191 g |
| Max Takeoff Weight | 1999 g |
| Wheelbase | 397 mm |
| Dimensions | 23*13*11 cm (folded); 45.7*55.9*11 cm (unfolded) |
| Max Service Ceiling | 7000 m |
| Max Ascent Speed | 8 m/s (Ludicrous) |
| Max Descent Speed | 4 m/s (Ludicrous) |
| Max Horizontal Flight Speed | 20 m/s (Ludicrous) |
| Max Flight Distance (no wind) | 25 km |
| Max Tilt Angle | 33° (Ludicrous) |
| Max Angular Velocity | 120°/sec |
| Max Flight Time (no wind) | 40 min |
| Max Hovering Time (no wind) | 35 min |
| Operating Temperature | -10°C ~ 40°C |
| Max Wind Resistance | 12 m/s (takeoff and landing) |
| Operating Frequency | 902-928MHz (FCC only) |
| 2.400-2.4835GHz | |
| 5.725-5.850GHz (all except Japan) | |
| 5.650-5.755GHz (Japan) | |
| Transmission Power | 900M |
| FCC/ ISED:≤31dBm | |
| 2.4G | |
| FCC/ ISED:≤32dBm | |
| SRRC/CE/MIC/RCM:≤20dBm | |
| 5.8G (non-Japan) ; 5.7G (Japan) | |
| FCC/ISED/SRRC/MIC:≤33dBm | |
| CE/ RCM:≤14dBm | |
| Hovering Accuracy | Vertical: ± 0.1 m (with normal visual positioning operation); |
| ± 0.5 m (with normal GPS operation) | |
| Horizontal: ± 0.3 m (with normal visual positioning operation); | |
| ± 1.5 m (with normal GPS operation) | |
| GNSS | GPS/Beidou/Glonass/Galileo |
| Built-in Storage | 8GB |
| SD Cards | supports up to 256GB (UHS-3 or Class 10) |
| Firmware | Automatic FCC protocol activation, extended frequency range, interference and jamming protection |
Camera Gimbal
| Gimbal | 3-axis stabilization |
| Mechanical Range | Tilt: -135° to +45°; |
| Pan: -100° to +100° | |
| Adjustable Rotation Range | Tilt: -90° to +30°; |
| Pan: -90° to +90° | |
| Max Control Speed (tilt) | 300°/sec |
| Angular Vibration Range | ±0.005° |
Remote Control and Data Transmission
| Operating Frequency | 902-928MHz (FCC) |
| 2.400-2.4835GHz | |
| 5.725-5.850GHz (outside Japan) | |
| 5.650-5.755GHz (Japan) | |
| Transmission Power | FCC:≤33dBm |
| CE:≤20dBm@2.4G,≤14dBm@5.8G | |
| SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G | |
| Max Transmission Distance (unobstructed) | FCC: 15 km |
| CE: 8 km | |
| Display Screen | 2340x1080 60fps |
| Battery | 1900mAh |
| Operating Time | ~2 hrs (max brightness) |
| ~3 hrs (50% brightness) | |
| Charging Time | 90 min |
| Internal Storage | ROM 128GB + micro-SD support |
Sensing System
| Sensing System Type | Omnidirectional Sensing System |
| Forward | Precise Measurement Range: 0.5–18 m |
| Effective Detection Speed: 20% | |
| (walls, trees, people, etc.) | |
| Downward: | |
| Downward: surface with clear pattern and sufficient illumination | |
| (> 15 lux) Detects diffusely reflective surfaces > 20% | |
| (walls, trees, people, etc.) |
Camera
| Sensor | 1 inch CMOS; 20 M pixels |
| Lens | Field of View: 82° |
| Equivalent Focal Length: 29 mm | |
| Aperture: f/2.8 - f/11 | |
| Focus Range: 0.5 m to infinity | |
| ISO Range | Video: 100-44000 |
| Photo: 100-6400 | |
| Shutter Speed | Photo Mode: 1/8000 ~ 8 s |
| Other: 1/8000 ~ 1/frame rate | |
| Zoom | 1-16x (up to 3x lossless) |
| Photo Mode | Single Shot/Burst Shooting/AEB/Time-lapse/HDR |
| Max Photo Size | 5472*3648 (3:2) |
| 5472*3076 (16:9) | |
| 3840*2160 (16:9) | |
| Image Format | JPG (default) / DNG / JPG+DNG |
| Video Mode | 5472x3076P30/P25/P24 |
| 3840x2160P60/P50/P48/P30/P25/P24 | |
| 2720x1528P60/P50/P48/P30/P25/P24 | |
| 1920x1080P60/P50/P48/P30/P25/P24 | |
| Video Format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max Bitrate | 120 Mbps |
| File System | FAT32/exFAT |
Battery
| Capacity (mAh) | 7100 mAh |
| Voltage, V | 11.5 |
