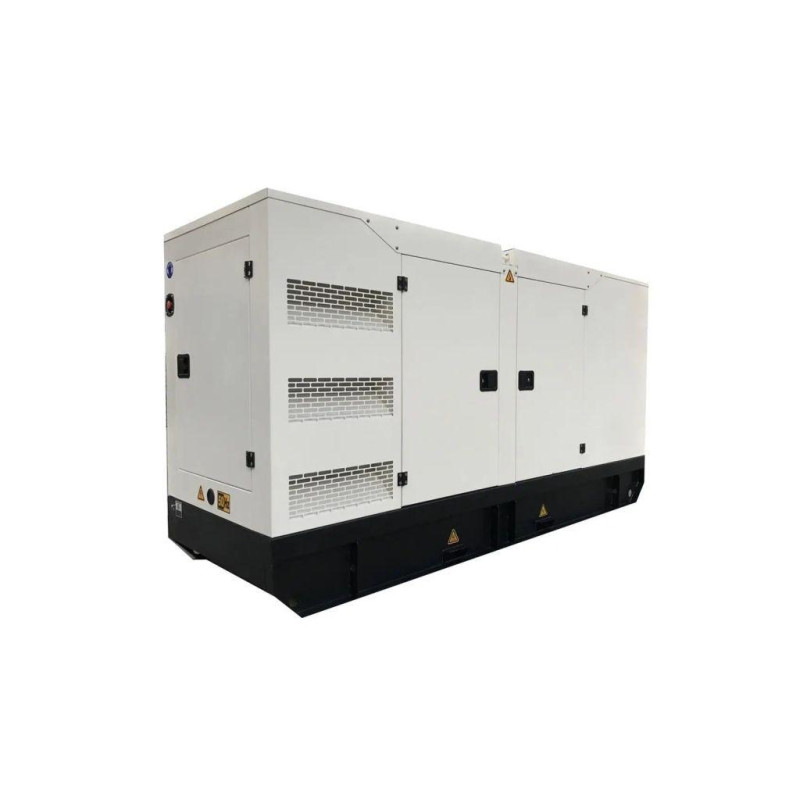

The UNIVERSAL UND-K 55 diesel generator from the manufacturer Universal is an industrial power plant for backup and continuous power supply to facilities of various purposes. The generator is designed to ensure the energy independence of commercial, government, and private facilities and belongs to the category: Energy Independence > Generators. The UND-K 55 model is equipped with a modern asynchronous alternator and a KOFO diesel engine, which guarantees a stable supply of high-quality electricity.

Key Technical Parameters

Main indicators of the model:

• Rated Power: 50 kVA / 40 kW
• Maximum Power: 55 kVA / 44 kW
• Power Factor: 0.8
• Output Voltage: 230 V and 400 V
• Engine: universal KOFO diesel
• Alternator: brushless, asynchronous

Design and Operation Features

The UND-K 55 generator casing is all-weather, made of thick metal with stiffening ribs, galvanized, and coated with powder polyester paint, which prevents corrosion and moisture penetration into the mechanisms. Built-in high-quality sound insulation reduces noise levels during operation, and the casing design provides convenient access for service maintenance. An emergency stop button is provided on the casing panel for quick shutdown.

The generator's electronics are insulated and waterproof, with an automatic coolant preheating function for reliable startup in cold weather, as well as monitoring and automatic battery charging, which simplifies preparation for startup. The Datakom control panel is intuitive and convenient, supporting secure software updates. Remote monitoring (optional) and programming via USB, RS-232, and GSM (optional) are possible.

Scope of Application

Thanks to the technical characteristics of the UND-K 55, it is advisable to use it for power supply to the following facilities:

• Private households
• Industrial enterprises
• Utility services
• Agricultural enterprises
• Restaurants and cafes
• Medical institutions
• Educational institutions
• Other government and commercial facilities

Package Contents

The standard package of the UNIVERSAL UND-K 55 diesel power plant includes:

• Coolant preheater
• Automatic charger
• Battery
• Automatic Transfer Switch (ATS) unit

Advantages of Purchase

Our online store offers generators from well-known global manufacturers with official supply in Ukraine through "KMA Ukraine" company. We provide a quality guarantee and the possibility of service maintenance, which is especially important for industrial solutions. The UND-K 55 model combines high efficiency of the KOFO engine with low fuel consumption, reliability of electrical components, and ease of maintenance.

Frequently Asked Questions

How to calculate the required generator power?

For household needs, power can be approximately calculated independently based on the total load of connected appliances. For industrial facilities, starting currents and peak loads should be considered, so we recommend contacting our manager for an accurate individual calculation.

Where is the best place to install a diesel generator?

It is most optimal to place the generator outdoors on a solid, stable surface, away from residential and working premises. The location must be protected from flooding and provide free access for maintenance.

What are maximum and rated power?

Rated power is the power that the generator can stably produce for a long time (for UND-K 55, it is 50 kVA / 40 kW). Maximum power is a short-term peak resource (55 kVA / 44 kW), at which the unit should not operate continuously.

How long can a diesel generator run continuously?

Average air-cooled diesel generators run for 6–8 hours without interruption, after which a pause for cooling is required. Industrial units with a liquid cooling system can run until fuel runs out, provided operating rules are followed.

How much does an industrial generator cost?

The price depends on the type, power, and package contents. We offer a wide selection of generators with detailed descriptions and the ability to choose the optimal model for your tasks.
